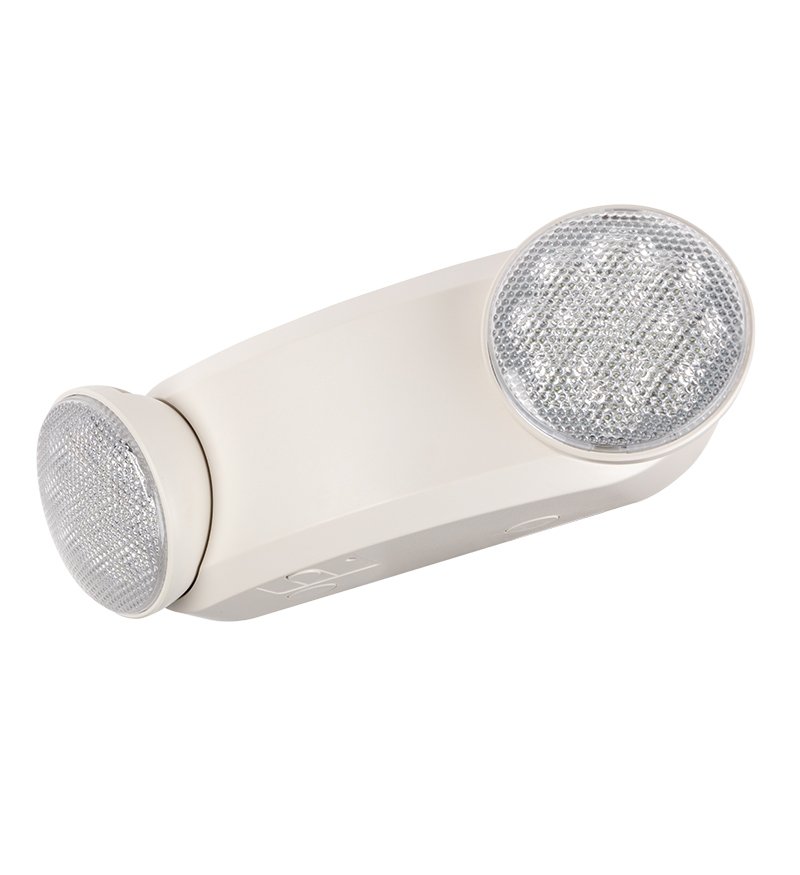

LED Emergency Light - Round Adjustable Lamp Heads - White Housing - 120-347 VAC

LED Emergency Light - Round Adjustable Lamp Heads - White Housing - 120-347 VAC

Part Number
EL2-RW

Discontinued

We have discontinued this product permanently. Please find suggested replacement products from below section.

Features

  • Fully adjustable round light heads
  • High impact, UV stabilized, and flame rated thermoplastic housing
  • Maintenance free 3.6V Ni-Cd battery backup (90 minutes)
  • Listed to UL 924 standard
View more details
E-mail me when this product is back in stock

Similar Products

  1. LED Surge Protector - 5kA Max Capacity - 120-277 VAC

    LED Surge Protector - 5kA Max Capacity - 120-277 VAC - QR-SPD07-10

Free Shipping: On orders $300 and up. Flat rate shipping for other qualifying orders. Learn More⇒

main product photo
8 photos

Overview

EL2 series LED Emergency Light is a convenient and reliable solution for illuminating paths of egress. Both lamp heads have a full range of motion, allowing for precise and full light coverage in hallways and walkways. The white fixture can be wall or ceiling mounted. Built to meet UL 924 standards, the thermoplastic housing is impact resistant, UV stabilized, and flame rated. Backup battery provides up to 90 minutes of power in the event of a power outage.
Product Details:
  • Universal J-box mounting plate for surface mounting to wall or ceiling
  • Test switch and AC-On indicator located externally makes it easy to check operational status
  • Easy access battery compartment
  • Suitable for damp locations
  • 120~347 VAC
  • Lifetime warranty (limited 2-year warranty on battery)
UL Listed
UL Listed
Lifetime
Lifetime
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

  • Emergency Lighting
  • Exit identification
  • Restrooms
  • Retail, Commercial, and Industrial Lighting
  • Safety and egress code compliance

Specifications

Battery Type Ni-Cd 3.6V 1,200mAh
Brand Super Bright LEDs
Current Draw 50 mA
Emergency Operation Time 120 Minutes
Environmental Rating Non-weatherproof, Suitable for Damp Locations
Finish White
IP Rating IP20
LED Color White
Material V-0 Rated Thermoplastic Housing
Operating Temperature 0~+40 °C (32~+104 °F)
Power Consumption 2 Watts
Product Weight 1lb 3oz (0.54kg)
Standards And Certifications UL Listed
UL File Number E502822
Voltage 120-347 VAC
Print Specifications

All specifications are subject to change without notice. All products are RoHS compliant.

Documents
EL2-RW User Manual
