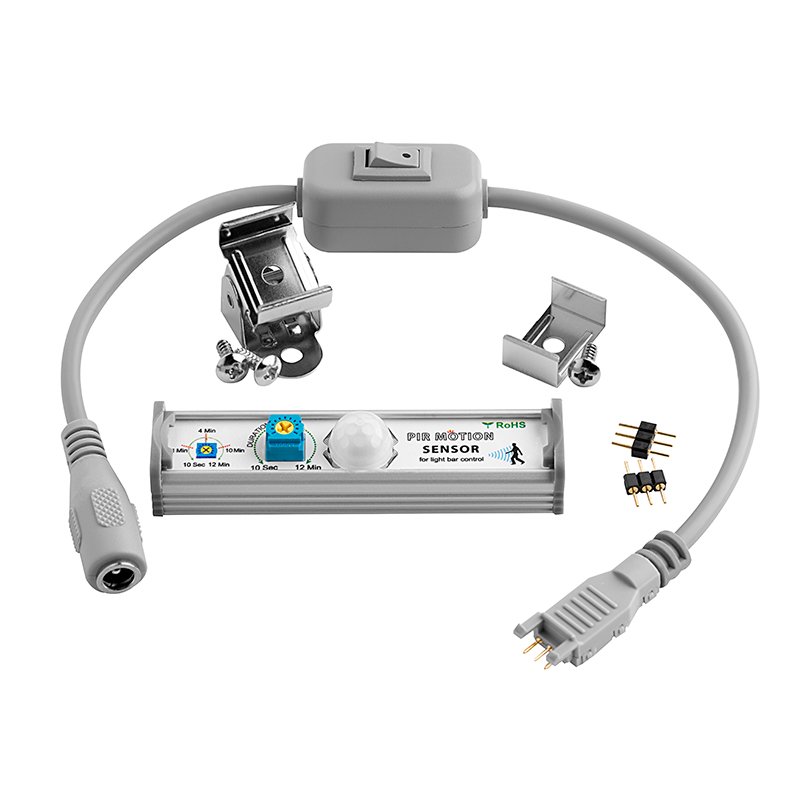

LBFA-PIR LuxBar PIR Motion Sensor: All Included Parts

LBFA-PIR LuxBar PIR Motion Sensor - PIR Motion Sensor

Part Number
LBFA-PIR
Only 3 left
$24.99 ea.
Add to Wish List Compare

Free Shipping: On orders $300 and up. Flat rate shipping for other qualifying orders. Learn More⇒

main product photo
10 photos
Loading...

Overview

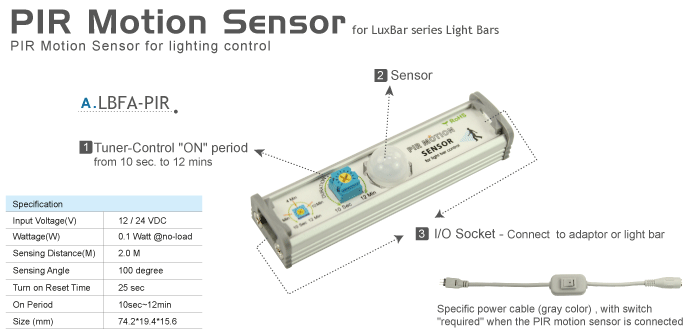

PIR Motion Sensor to turn LBFA series LuxBar Light Fixtures on or off. PIR Motion Sensor connects to Light Bar anywhere in the series connection. 2 meter sensing distance and adjustable 'On' time from 10 seconds to 12 minutes. Motion Sensor is used with either 24 Watt or 48 Watt 24VDC CPS Power Supplies. Includes Required Power Connector Switch (LBFA-PIR-SW), 2 Direct Connect Jumpers(LBFA-I), 1 Flat Type and Adjustable Type Mounting Clips with 3 screws(LBFA-MC1), and User Manual.

We offer a range of LuxBar specific mounting and wiring options to meet a large range of needs. This flexible system of mountings clips, cables, and connectors will allow you all the flexibility you need to get the most from your Linear Light Bar Fixture.
3 Years
3 Years
Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Specifications

Conductors 3
Input Connection Type 5.5 mm x 2.1 mm DC Barrel
Length 4.3in (0.36ft)
Output Connection Type LBFA
Print Specifications

All specifications are subject to change without notice. All products are RoHS compliant.
