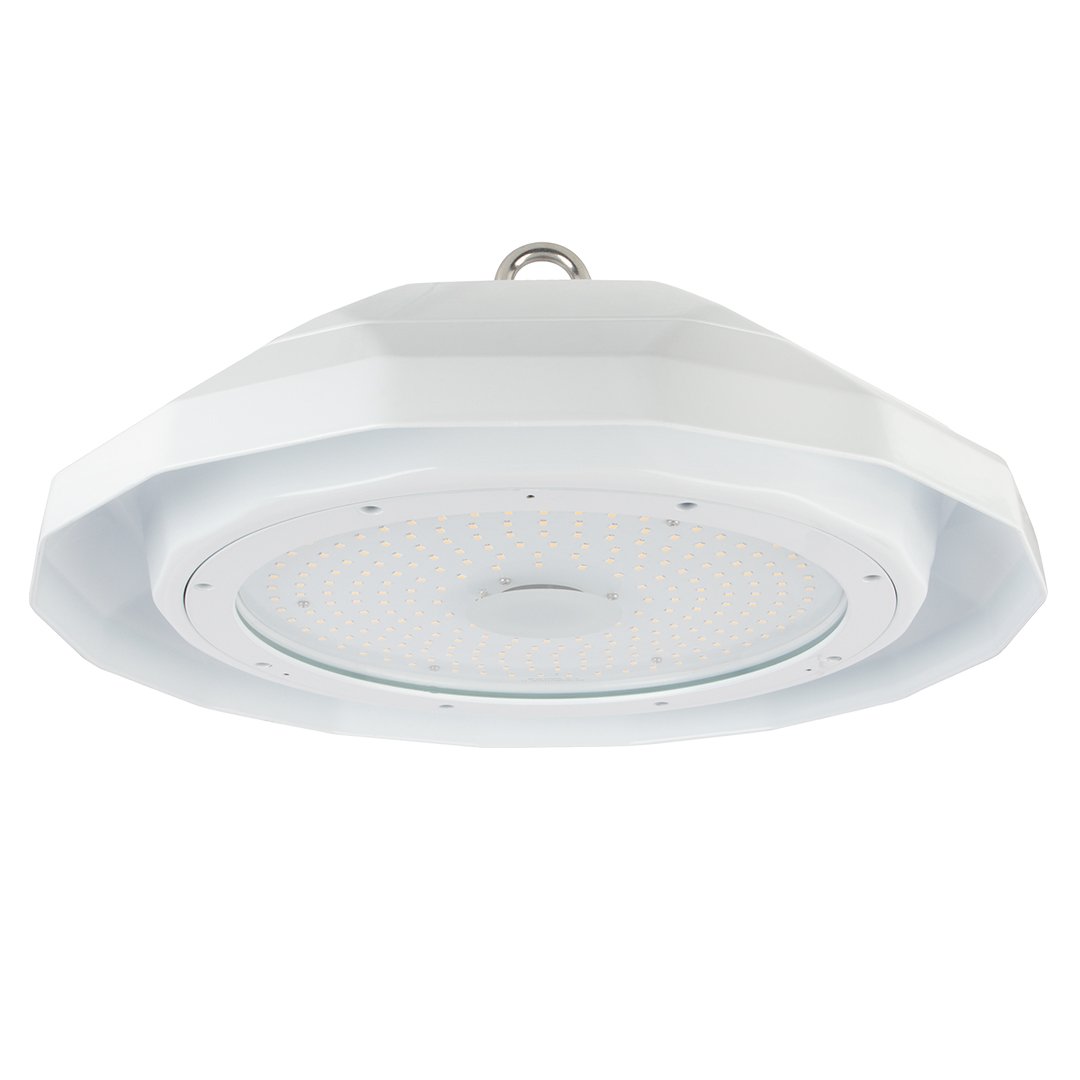

Name: 150W LED Wash Down High Bay - NSF Certified - 22500 Lumens - 400W MH Equivalent - 5000K
Brand: Super Bright LEDs
SKU: WUD2-50K150-SVDNCB
Price: 229.99 USD
Availability: OutOfStock

Overview

The 150W LED UFO High Bay Washdown Light Fixture is NSF Certified and designed to meet sanitary requirements for controlled areas. The smooth powder-coated aluminum housing eliminates build-up from airborne contaminants. The corrosion-resistant aluminum housing has an IP69K rating, is dust and watertight, and withstands the rigors of daily cleaning schedules, including high-temperature, high-pressure wash downs. The fixture replaces 400W HID or metal halide equivalents offering 22,500 lumens of 5000K cool white light.

Product Details:

Powder-coated aluminum housing
Shatter-resistant polycarbonate lens
Rated IP69K for wet locations
Includes stainless steel eye-hook for suspended ceiling mount
100-277 VAC
NSF Certified to NSF Std. 2
UL Listed, DLC 5.1 Premium
5-year warranty

Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.

This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Agricultural Processing
Boiling & Keg Washing
Canning & Bottling
Industrial Kitchens
Livestock Facilities
Manufacturing Plants
Meat Processing
Milking Operations
Packaging Facilities
Sanitary Areas
Treatment Plants
Car Washes
Food Processing Plants
Cold & Freezer Storage

Specifications

Beam Angle	120°
Brand	Super Bright LEDs
CCT Value	5000K
Comparable Wattage	400 Watt Metal-Halide
Current Draw	1.3 A @ 120 VAC, 540 mA @ 277 VAC
Dimmable	Yes
Dimming Type TRIAC Dimming: Triode for alternating current (TRIAC) dimming is used to control high-voltage dimmable power supplies such as Magnitude Dimmable Power Supplies. These dimmable power supplies work by varying the power on the AC input side of the power supply by means of a TRIAC dimmer. This change in power on the AC input side will vary the voltage on the DC output side and control the intensity of the LEDs. TRIAC dimmers are common hardware store and household dimmers, which include brand names such as Lutron and Leviton. Pulse-Width Modulation Dimming: Pulse-width modulation (PWM) dimming can be used to control dimmable power supplies such as Mean Well HLG Series and Mean Well LPF Series. This type of dimming control adjusts the output current based on the duty cycle. As the duty cycle increases, current will increase and the LEDs will be brighter. Conversely, if the duty cycle decreases, the current will decrease and the LEDs will be dimmer. Pulse-width modulation for these drivers is based on a 10V signal level with a frequency between 100Hz~3KHz. The MCBRF-4A or MLD-5A are compatible for this application. Resistive Dimming: Resistive dimming can be used to control dimmable power supplies such as Mean Well HLG Series. The resistance can be fixed or variable. If a fixed level of dimming is required, a simple resistor is all that is needed to dim the LEDs to a particular level. If a varying dimmable level is desired, a potentiometer can serve this purpose. By changing the resistance value of the potentiometer, the output current of the power supply changes, and the LED intensity changes. Controlling a single power supply will require a 100K ohm potentiometer for 100% intensity (100K ohm) to approximately 10% intensity (10K ohm) based on where the wiper is positioned. 1-10V Dimming: 1-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-40~240 Series or 24V Mean Well HLG-40~240 Series. This type of dimming control is an older style for compatible dimmable power supplies and is being replaced with 0-10V dimmer control. 1-10V dimming control works by varying the voltage from 1-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 1-volt signal on the dimming wire allows 10% of the current to flow from the power supply, which generates approximately 10% of the maximum intensity for the LEDs. 0-10V Dimming: 0-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-600 Series or 24V Mean Well HLG-600 Series. This type of dimming control is the most popular and newest style for compatible dimmable power supplies. 0-10V dimming control works by varying the voltage from 0-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 0.6-volt signal on the dimming wires allows 6% of the current to flow from the power supply dimming the LEDs to approximately 6% of full intensity. 0-10V dimmers can be found here.	0-10V
Efficacy	150 lm/W
Environmental Rating	Suitable for Wet Locations, Waterproof
Finish	White
Fixture Type	NSF Washdown
Input Connection Type	Pigtail
IP Rating	IP69K
LED Color	Cool 5000K
LED Lifetime	50000 Hours
Lens Type	Polycarbonate
Lumen	22500 Lumen
Material	Aluminum Housing, Polycarbonate Lens
Microwave Motion Sensor	None
Operating Temperature	-40~+50 °C (-40~+122 °F)
Power Consumption	150 Watts
Power Factor	≥0.9
Product Weight	12lb 6.4oz (5.62kg)
Standards And Certifications Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here.	DLC Premium, NSF Std. 2, UL Listed
UL File Number	E366643
Voltage	120-277 VAC
Wire Gauge	18 AWG
Wire Length	18in (45.7cm)
