Modular LED Signal Tower Stack Lights - 2.4" Diameter - L-bracket Mount with 240mm Pole
Part Number:
TBL-x60-Dx-LB
Manufacturer Part Number:
Starting at
$54.95
ea.
Starting at
Was
Features
- Interchange and customize configuration
- Continuous and flashing light modes (65 FPM)
- Continuous or pulse tones (85 dB)
- DIP switch easily controls light and buzzer with out any rewiring
- Diameter: 2.4in | Height Range: 14.63in - 23.42in
Related Products
Overview

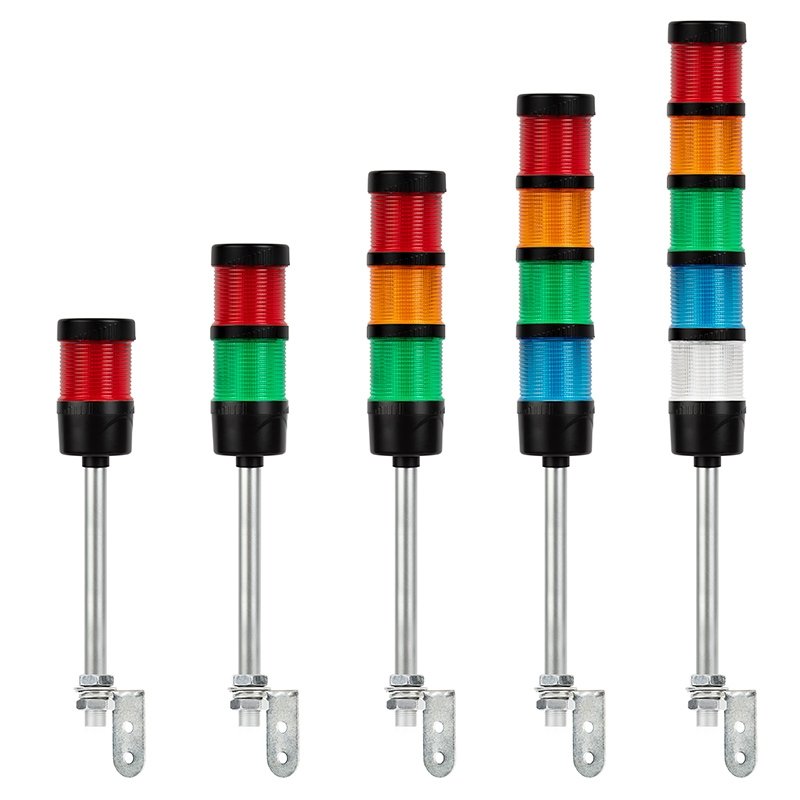

The TLB series Stack Light provides reliable audible and visual signals for any workplace, safely securing with included L-bracket. Track productivity in an assembly line, monitor uptime/downtime, or alert safety status with up to 5 colors. They each have a wire plug connection, and twist-lock securely in place. LED modules can be arranged and rearranged in any order, and emit a 360° beam continuously or in flashing mode. The black body contains alarm capabilities, for increased communication options in broadcasting studios, on industrial equipment, or in call centers.
Assembly required
Assembly required
Product Details:
- DIP switch controls light and buzzer options
- Includes L-bracket Mount with 240mm Pole
- Includes pigtail connection
- Includes matching black flanges between each module
- Rated IP53 against dust and moisture
- 50000 hours L70 lifespan
Documents
TBL Specification Sheet
Super Bright LEDs, Inc. offers a 2-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Brand | Super Bright LEDs |
| Dimmable | No |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof |
| Finish | Black |
| Input Connection Type | 10 Pin Connector |
|
IP Rating
IP Rating
|
IP53 |
| Rated Life (L70) | 50000 Hours |
| Mount Type | L-bracket Mount |
| Product Materials | ABS, Polycarbonate |
| Warranty | 2 Year |
| Part NO | LED Color | Operating Voltage |
|---|---|---|
| TBL-R60-D120-LB | Red | 120 VAC |
| TBL-R60-D24-LB | Red | 24 VDC |
| TBL-RG60-D120-LB | Green, Red | 120 VAC |
| TBL-RG60-D24-LB | Green, Red | 24 VDC |
| TBL-RYG60-D120-LB | Green, Red, Yellow | 120 VAC |
| TBL-RYG60-D24-LB | Green, Red, Yellow | 24 VDC |
| TBL-RYGB60-D120-LB | Blue, Green, Red, Yellow | 120 VAC |
| TBL-RYGB60-D24-LB | Blue, Green, Red, Yellow | 24 VDC |
| TBL-RYGBW60-D120-LB | White, Blue, Green, Red, Yellow | 120 VAC |
| TBL-RYGBW60-D24-LB | White, Blue, Green, Red, Yellow | 24 VDC |
