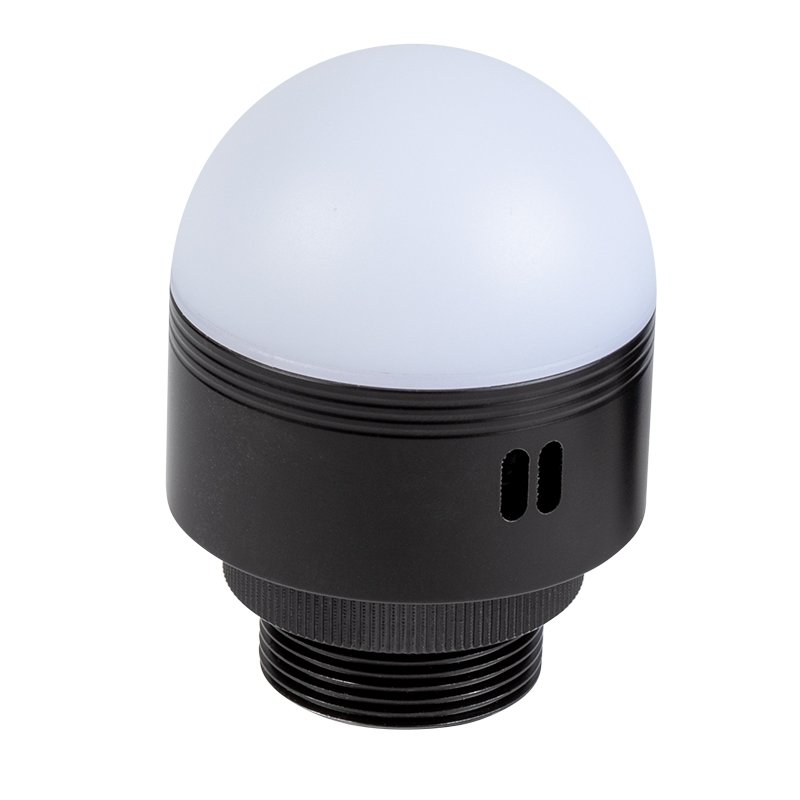

50mm Dome Indicator Light - 3 Color Pilot Light with Buzzer - 24 VDC - Continuous or Flashing

Name: 50mm Dome Indicator Light - 3 Color Pilot Light with Buzzer - 24 VDC - Continuous or Flashing
Brand: Super Bright LEDs
SKU: GPI-RYG50-B24x-PT
Price: 24.99 USD
Availability: InStock

Part Number

GPI-RYG50-B24x-PT

Features

3 colors in 1 fixture: red, yellow, green
Available with steady ON or flashing light (63 FPM)
Includes optional buzzer for audible warning (85dB)
24 VDC

View more details

Free Shipping: On orders $300 and up. Flat rate shipping for other qualifying orders. Learn More⇒

Skip to the end of the images gallery

8 photos

Skip to the beginning of the images gallery

Overview

Description

GPI Indicator Light is a small signal light to clearly show the operating status of machinery, switch control panels, equipment, and more. Red, yellow, and green LEDs are contained with in one raised dome lens. Available with either continuous or flashing light, both models have an optional buzzer to provide both visual and audible signaling.

Product Details:

42mA per color at 24 VDC
30mm threaded base, 38mm threaded nut
Mounting thread: M30 x 1.5mm
Black aluminum body and frosted polycarbonate lens
16 total LEDs: 6 red, 5 yellow, and 5 green
Buzzer volume: 85dB
180° beam angle
Pigtail cable
Operating temperature: -4° -- 113° F (-20° -- 45° C)
Rated IP30
2 year warranty
50000 hour (L70) lifespan

In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.

Super Bright LEDs, Inc. offers a 2-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Assembly Lines
Industrial Equipment
Safety Lighting
Factories
Warning Lights

Specifications

Beam Angle	180°
Current Draw	42 mA per color (125 mA max)
Diameter	1.97 in
Finish	Black
Input Connection Type	Pigtail
IP Rating	IP30
LED Color	Red, Yellow, Green
LED Lifetime	50000 Hours
Material	Aluminum Housing, Polycarbonate Lens
Mount Type	30mm Threaded Base
Operating Temperature	-20~+45 °C (-4~+113 °F)
Power Consumption	1 Watt
Standards And Certifications Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here.	CE
Voltage	24 VDC

Print Specifications

Part NO	Brand
GPI-RYG50-B24F-PT
GPI-RYG50-B24S-PT	Super Bright LEDs
