Discontinued
We have discontinued this product permanently. Please find suggested replacement products from below section.

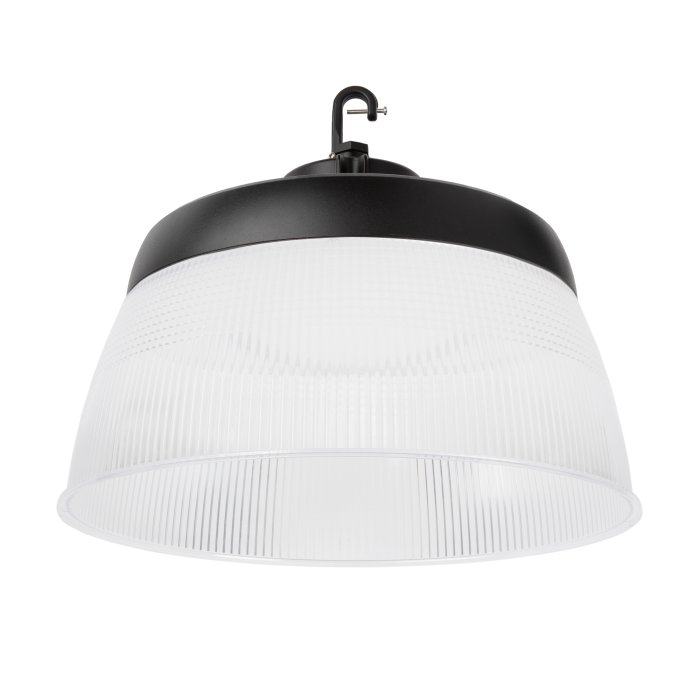

150W High Temperature UFO LED High Bay Light With Reflector - 21,000 Lumens - 400W MH Equivalent - 5000K
Part Number:
UHBDT-S1-50K150-80H-PR
Manufacturer Part Number:
View Similar Products
View more product details
Features
- High ambient operating temperature of 149°F (65°C)
- Includes clear, polycarbonate reflector
- 400W metal-halide equivalent
- IP65 rated
View more product details
Related Products
Overview
This 150W High-Temperature LED UFO High Bay light is designed to replace a 400W metal-halide fixture, and is rated for a high ambient operating temperature of 149°F (65°C). Use the included reflector for uniform 5000K light distribution. In addition, the fixture has a durable, powder-coated aluminum housing and a polycarbonate lens. Built to resist water and dust, this UFO high bay has an IP65 rating. Install with the included mounting hook and safety cable. Ideal for commercial applications such as warehouses, workshops, and factories.
Product Details:
- High ambient operating temperature of 149°F (65°C)
- Includes clear polycarbonate reflector
- Black aluminum housing with polycarbonate lens
- 100-277 VAC
- IP65 waterproof rated
- Certified by UL
- 5-year warranty
Documents
UHBDT-S1 Specification Sheet
UHBDT-S1-50K150-80H with reflector IES File Applications:
- Commercial Buildings
- Factories
- Warehouses
- Workshops
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
Need help?
Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Ambient Operating Temperature | -40 to 65 °C (-40 to 149 °F) |
|---|---|
| Beam Angle | 80° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
5000K |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC Premium |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
1.25 A @ 120 VAC, 542 mA @ 277 VAC |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| Efficacy | 140 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
| Equivalency | 400 Watt Metal Halide |
| Finish | Black |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 6 kV |
|
IP Rating
IP Rating
|
IP65 |
| LED Color | Cool White |
| Rated Life (L70) | 50000 Hours |
| Lumens | 21000 Lumens |
| Microwave Motion Sensor | None |
| Operating Voltage | 100-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Product Weight | 8.7 lb (3.9 kg) |
| UL File Number | E366643 |
| Warranty | 5 Year |
| Wattage | 150 Watts |
| Wire Gauge | 18 AWG |
