Discontinued
We have discontinued this product permanently. Please find suggested replacement products from below section.

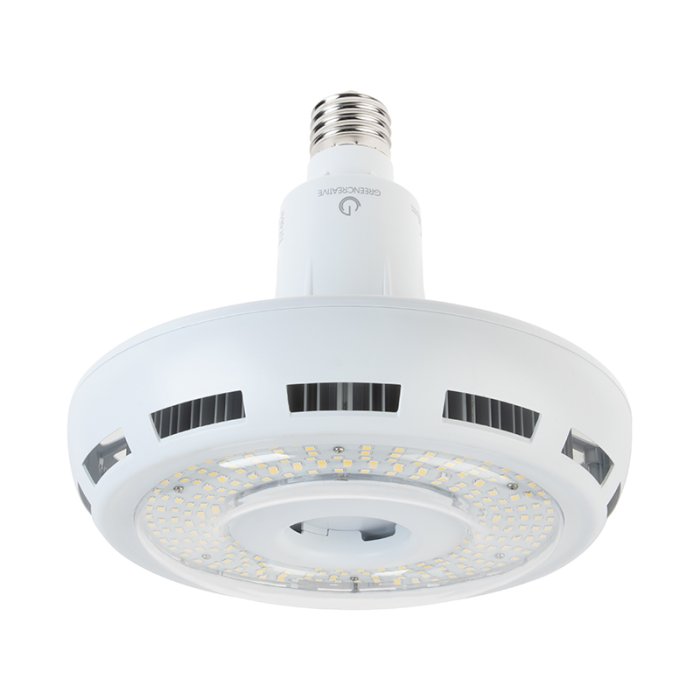

Green Creative 90W HID LED Retrofit - High Bay Lamp - EX39 Base - 12,600 Lumens - 120-277 VAC - 5000K
Part Number:
90HIDHB-850-BYP-EX39-R
Manufacturer Part Number:
90HIDHB/850/BYP/EX39/R
Discontinued
Features
- Uniform 110° beam angle
- Type B Ballast Bypass
- Compatible with EX39 & E39 sockets
- Equivalent to 400W HID fixtures
Related Products
Overview
Green Creative's 90W LED High Bay Lamps are designed to replace outdated HID fixtures. Use the 90HIDHB-850-BYP-EX39-R high bay lamp to retrofit HID fixtures up to 400-watts. The lamp has a Type B ballast bypass, the existing ballast must be removed for proper operation. Easily install the plug-and-play lamp into EX39 or E39 sockets. Not suitable for fully enclosed fixtures.
Product Details:
- White housing with a clear lens
- 110° beam angle
- Type B Ballast Bypass
- Fits EX39 & E39 sockets
- 6kV Surge protection
- 120-277 VAC
- UL Listed
- UL Classified
- 5-year warranty
90HIDHB and 120HIDHB User Manual
90HIDHB_850_BYP_EX39 IES File Applications:
- Factories
- Hangars
- High Bays
- Industrial Facilities
- Low Bays
- Warehouses
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. UL tests specific properties of product samples to ensure that they adhere to applicable UL requirements, Standards for Safety, and other national and international organization's standards.
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Ballast Compatibility | Type B (Ballast Bypass) |
| Base Type | EX39 (Mogul Base) |
| Beam Angle | 110° |
| Brand | Green Creative |
|
CCT
CCT
|
5000K |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
UL Classified, UL Listed |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
330 mA @ 277 VAC, 750 mA @ 120 VAC |
| Dimmable | No |
| Efficacy | 140 lm/W |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 320 Watt Metal Halide |
| Finish | White |
| Integrated Surge Protection | 6 kV |
|
IP Rating
IP Rating
|
IP20 |
| LED Color | Cool White |
| Rated Life (L70) | 50000 Hours |
| Lens Color | Clear |
| Lumens | 12600 Lumens |
| Manufacturer Part Number | 90HIDHB/850/BYP/EX39/R |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Weight | 3.8 lb (1.7 kg) |
| UL File Number | E345134, E364641 |
| Warranty | 5 Year |
| Wattage | 90 Watts |
