Discontinued
We have discontinued this product permanently. Please find suggested replacement products from below section.

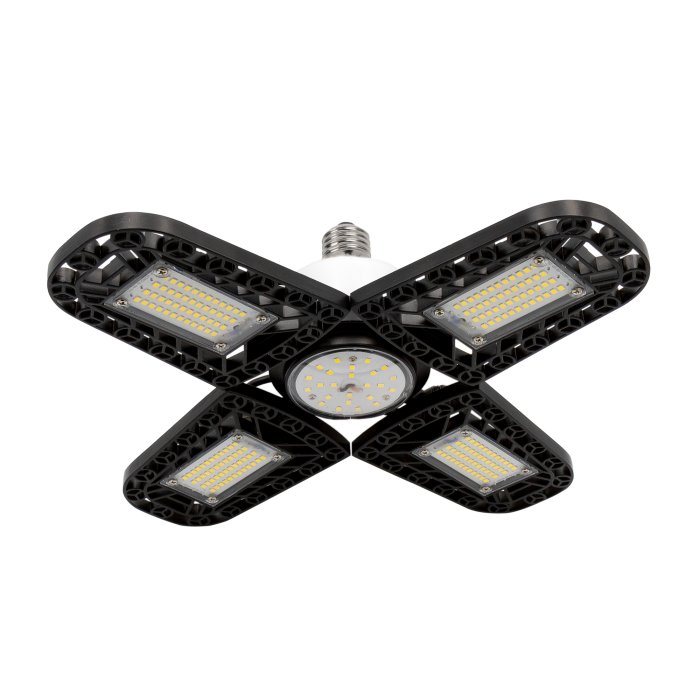

80W LED High Bay Retrofit Bulb - 250W MH Equivalent - E26 / E27 Medium Screw Base - Ballast Bypass - 11,600 Lumens - 5000K
Part Number:
HBA-50K80-E26C
Manufacturer Part Number:
Discontinued
Features
- High-lumen LED upgrade from traditional bulbs
- Four LED panels offer wide-area illumination
- Easily installs into standard E26/E27 sockets
- Type B ballast bypass
Overview
The 80-watt LED high bay retrofit bulb produces 11,600 lumens and has a standard E26/E27 screw base with a Type B ballast bypass design for easy installation. A 145 lm/W high-efficacy LED garage light provides long-lasting illumination with over 30% reduction in energy usage. The light has a durable aluminum housing with polycarbonate lenses. This IP64 weatherproof rated LED bulb is suited for indoor or outdoor use. The high-lumen output and 110° beam angle are ideal for wide-coverage applications in workshops and garages.
Product Details:
- Black aluminum housing, clear polycarbonate lenses
- IP64 weatherproof rated
- E26 /E27 screw base
- 2kV surge protection
- 120-240 VAC
- Certified by UL
- 5-year warranty
HBA-50K80-x Specification Sheet Applications:
- Basements
- Garages
- Shop Lights
- Workshops
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | -40~+55°C (-40~+131 °F) |
|---|---|
| Ballast Compatibility | Type B (Ballast Bypass) |
| Base Type | E26/E27 (Medium Base) |
| Beam Angle | 110° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
5000K |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
670 mA @ 120 VAC, 330 mA @ 240 VAC |
| Dimmable | No |
| Efficacy | 145 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Damp Locations, Weatherproof |
| Equivalency | 250 W Metal Halide |
| Finish | Black |
|
IP Rating
IP Rating
|
IP64 |
| LED Color | Cool White |
| Rated Life (L70) | 50000 Hours |
| Lumens | 11600 Lumens |
| Operating Voltage | 100-240 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Product Weight | 1.7 lb (0.8 kg) |
| UL File Number | E477606 |
| Warranty | 5 Year |
| Wattage | 80 Watts |
