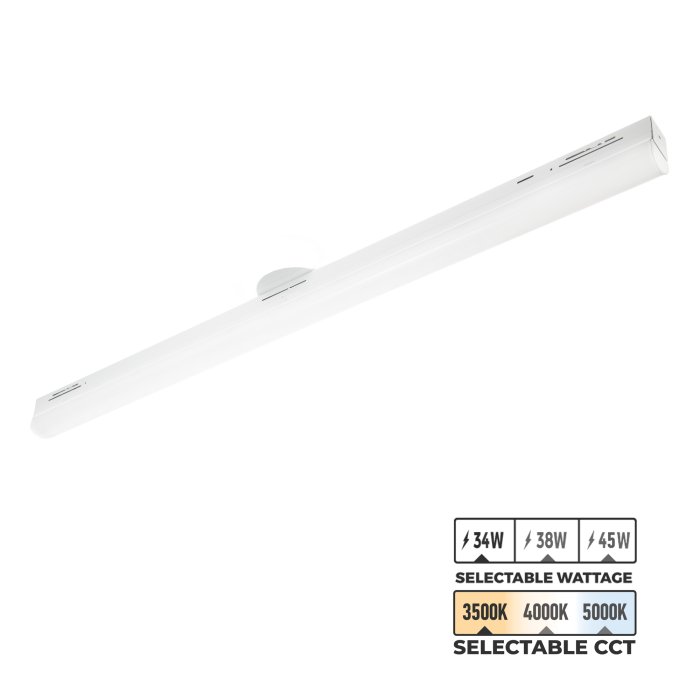

4' LED Strip Light Fixture - Shop Light - Selectable Wattage and CCT - Up to 5,850 Lumens - 34W / 38W / 45W - 3500K / 4000K / 5000K
Part Number:
LSFD-M1-SW3C45
Manufacturer Part Number:
$39.99
ea.
Was
| Quantity | |
|---|---|
In Stock
Features
- Selectable wattage and CCT
- 130 lm/W efficacy
- Flush mount using the included junction box bracket
- Replaces two 32W T8 fluorescent tubes
Overview
The 4' LED Strip Light Fixture features field-selectable CCT and wattage for various residential and commercial applications. This durable and lightweight shop light has a white steel housing and is suitable for use in damp locations. The curved design of the frosted shatterproof lens emits a 116° beam of diffused, uniform, glare-free light. To select the CCT (3500K, 4000K, or 5000K) and wattage (34W, 38W, or 45W), remove the lightbox from the fixture's base and set the switches on the LED driver. Safety cables securely hold the lightbox to the base while accessing the wiring compartment, making installation easier. Junction box cover plate is included. Compatible motion sensors, emergency drivers, and other accessories are sold separately.
Product Details:
- Steel housing and a frosted polycarbonate lens
- Suitable for damp locations
- 0-10V dimmable
- 120-277 VAC
- UL Listed
- DLC 5.1 Standard
- 5-year warranty
Documents
LSFD-M1-SW3C45 Specification Sheet
LSFD-M1-SW3C45 45W 40K IES File Applications:
- Garages
- Retail Shops
- Strip Lights
- Supermarkets
- Utility Lighting
- Warehouses
The DesignLights Consortium® (DLC®) partners with energy-efficiency groups and utility companies to establish a set of standards for commercial LED light fixtures. The product is tested and must meet quality, energy-efficiency, and performance requirements to be added to the DLC's Qualified Products List. For more information, click here. To view all of our DLC® listed products, click here
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Need help?
Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Ambient Operating Temperature | -20~+50 °C (-4~+122 °F) |
|---|---|
| Beam Angle | 116° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
3500K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
DLC, UL Listed |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
310 / 345 / 410 mA @ 120 VAC, 130 / 145 / 175 mA @ 277 VAC |
| Dimensions | 4ft |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| Efficacy | 130 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Damp Locations |
| Equivalency | 4-lamp 32 W T8 Tubes |
| Finish | Frosted, White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
|
IP20 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 100000 Hours |
| Length | 48 in. (4 ft) |
| Lens Color | Frosted |
| Lens Type | Polycarbonate |
| Linkable | No |
| Lumens | 4420 Lumens, 4940 Lumens, 5850 Lumens |
| Microwave Motion Sensor | Optional |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Polycarbonate Lens, Steel Housing |
| Product Weight | 4.3 lb (2.0 kg) |
| Warranty | 5 Year |
| Wattage | 34 Watts, 38 Watts, 45 Watts |
| Wire Gauge | 18 AWG (L/N/G), 20 AWG (dimming) |
