2x2 LED Grid Frame Light - Selectable Wattage 30W / 35W / 40W - Selectable CCT 3500K / 4000K / 5000K - Up to 5,000 Lumens - 2-Pack
Part Number:
TGLD-SW3C40-22
Manufacturer Part Number:
$139.99
ea.
Was
Features
- Modern edge-lit design for ceilings
- Suspension mount fixtures in open-ceiling designs
- Selectable CCT and wattage
- Equivalent to fixtures with three 17W T8 tubes
- DLC 5.1 Premium
- Sold in 2-Packs
2x2 LED Grid Frame Light
The grid frame light's innovative design lights up the perimeter of ceiling panels, creating a stylish, edge-lit look.
Hanging Kit
Optional hanging kit available for use in exposed or drywall ceilings.

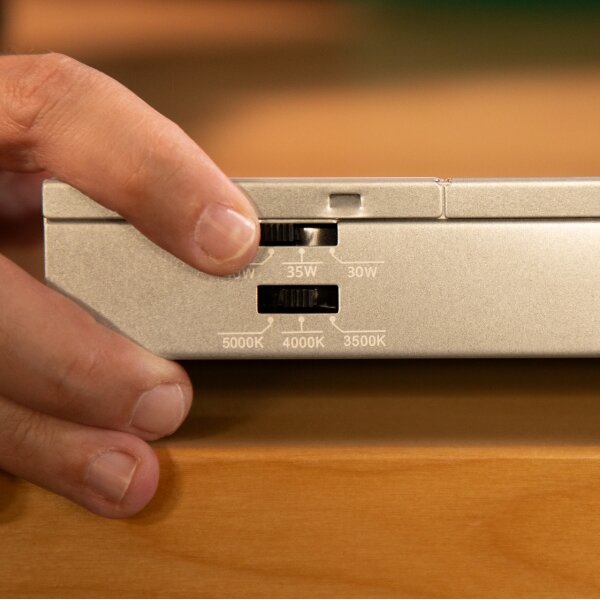

Selectable Watt and CCT
Selectable wattage and CCT allow you to customize the light output to suite your needs.

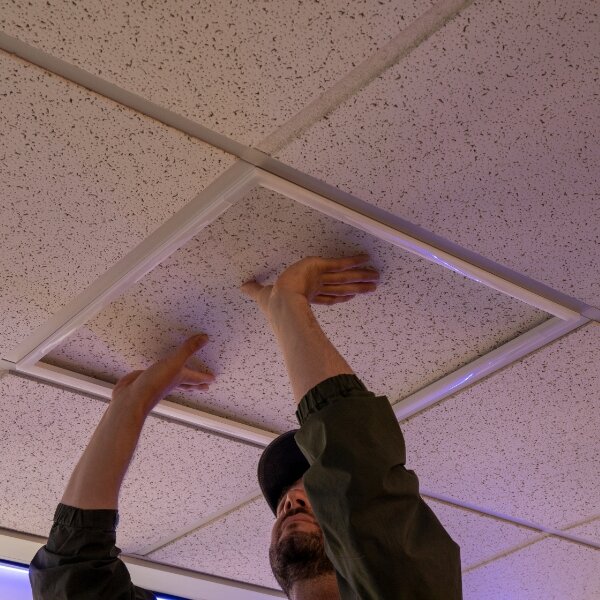

Easy Installation
The lightweight and compact design of these lights make them a breeze to install. No additional support is needed, they simply snap into your existing T-grid ceiling.
Overview
The 2x2 LED Grid Frame Light’s innovative design lights up the perimeter of ceiling panels, creating a stylish, edge-lit look. One grid frame light is equivalent to three 17W T8 tubes for efficient operation and fits into standard drop ceilings. Field-selectable wattage and CCT can be adjusted during install using the built-in switches on the included junction box. Each frame light offers up to 5,000 lumens with a wide 120-degree beam angle. They are best used to modernize basement lighting or update the look of your office, school, or retail space–sold in 2-packs.
Product Details:
- Aluminum frame and polycarbonate lens
- Installs in standard T-grid drop ceilings
- Junction box with built-in field-selectable switches
- 120-degree beam angle
- 120-277 VAC
- DLC 5.1 Premium
- 5-year warranty
Documents
TGLD Specification Sheet Applications:
- Basements
- Hospitality
- Hospitals
- Offices
- Schools
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | -20~+45 °C (-4~+113 °F) |
|---|---|
| Beam Angle | 120° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
3500K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
DLC Premium, ETL Listed |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
250/290/330 mA @ 120 VAC, 110/130/140 mA @ 277 VAC |
| Dimensions | 2ft x 2ft |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| Efficacy | 125 lm/W |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 3-lamp 17 W T8 Tubes |
| Finish | White |
| Input Connection Type | Quick Connector |
| Integrated Surge Protection | 1 kV (L-N), 2 kV (L/N-G) |
|
IP Rating
IP Rating
|
IP20 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lens Color | Frosted |
| Lens Type | Polycarbonate |
| Lumens | 3750 Lumens, 4375 Lumens, 5000 Lumens |
| Mount Type | Drop Ceiling |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Product Weight | 2.2 lb (1.0 kg) |
| Warranty | 5 Year |
| Wattage | 30 Watts, 35 Watts, 40 Watts |
| Wire Gauge | 18 AWG |
