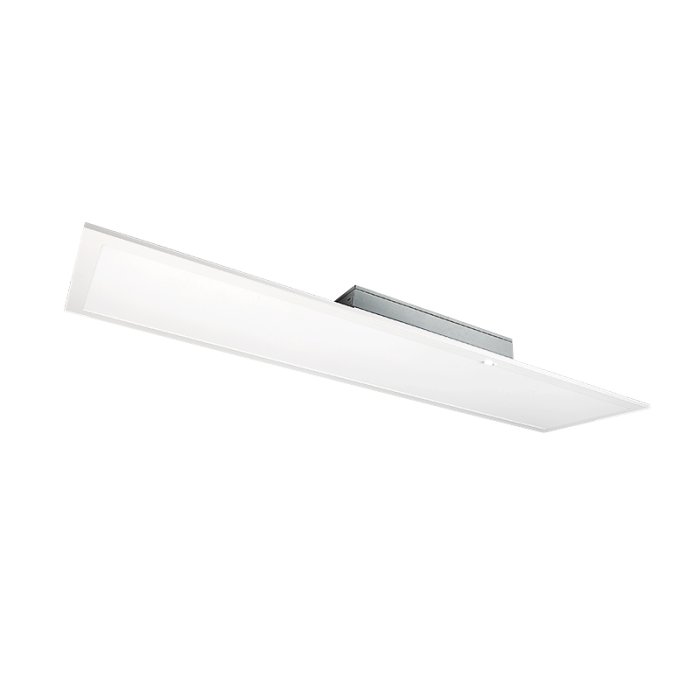

FlatMax 1X4 LED Flat Light Panel - Selectable Wattage and CCT - Dimmable - Up To 3,790 Lumens - 20W / 25W / 30W - 3500K / 4000K / 5000K
Part Number:
MLFP14G420WCSCR
Manufacturer Part Number:
$74.69
ea.
SAVE 10%
Was
$82.99
ea.
Was
Clearance
Features
- Field-selectable CCT and wattage
- Designed to be compatible with most 0-10V dimmers
- Uniform light distribution
Overview
A seamless replacement for 1’x4' fluorescent fixtures, MaxLite’s next-generation FlatMax 1X4 LED Flat Light Panels are designed to lay in drop ceilings in offices, schools, and healthcare applications. The panels produce highly efficient, uniform illumination, and offer the versatility of field-selectable color temperatures and wattages to suit various application needs. The panels are fully dimmable, and may be combined with motion sensors for further energy savings. MaxLite panels deliver all the benefits of LED technology, including a long life with high lumen maintenance, reduced energy consumption and lower maintenance costs.
Product Details:
- To simplify operation-- pair with cMax control nodes
- 0-10V Dimmable
- Surface mount or flange mount
- 120-277 VAC
- DLC Standard
- 10-year standard warranty with labor allowance
MLFP User Manual
MLFP14G420WCSCR IES File Applications:
- Commercial Suspended Grid Ceilings
- Hospitals
- Hotels
- New Construction
- Resorts
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
The DesignLights Consortium® (DLC®) partners with energy-efficiency groups and utility companies to establish a set of standards for commercial LED light fixtures. The product is tested and must meet quality, energy-efficiency, and performance requirements to be added to the DLC's Qualified Products List. For more information, click here. To view all of our DLC® listed products, click here
Super Bright LEDs, Inc. offers a 10-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | -20~+50 °C (-4~+122 °F) |
|---|---|
| Beam Angle | 120° |
| Brand | MaxLite |
|
CCT
CCT
|
3500K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
DLC, ETL Listed |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
167/208/250 mA @ 120 VAC |
| Dimensions | 1ft x 4ft |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| DLC Product ID | PKL0UT6P |
| Efficacy | 133 lm/W |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 2-lamp 32 W T8 Tubes |
| Finish | White |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 1 kV |
|
IP Rating
IP Rating
|
IP20 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 100000 Hours |
| Lens Color | Frosted |
| Lens Type | Polystyrene |
| Lumens | 2600 Lumens, 3130 Lumens, 3790 Lumens |
| Mount Type | Drop Ceiling |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum, Polystyrene, Steel |
| Product Weight | 6.0 lb (2.7 kg) |
| Warranty | 10 Year |
| Wattage | 20 Watts, 25 Watts, 30 Watts |
| Wire Gauge | 18 AWG |
