50W 2x4 LED Flat Panel Light with Keilton ECO Sensor - Selectable and Tunable CCT - Up to 6,400 Lumens - 4-Pack
Part Number:
LPDBL-M1-24-TW3C-SP50BLE
Manufacturer Part Number:
$499.99
per Pack
Was
In Stock
Features
- Integrated ECO sensor creates Networked Lighting Controls (NLC) with Bluetooth MESH
- Control a network of lights using the App
- Up to 100 light fixtures allowed on one network
- Select CCT from a range of tunable whites or from pre-stored selectable CCT's
- Equivalent to 3-lamp 32W T8 tube fixture
- DLC 5.1 Premium
See our full selection of Networked Controlled Lighting.
View more details
LED Flat Panel Light with Bluetooth MESH Sensor

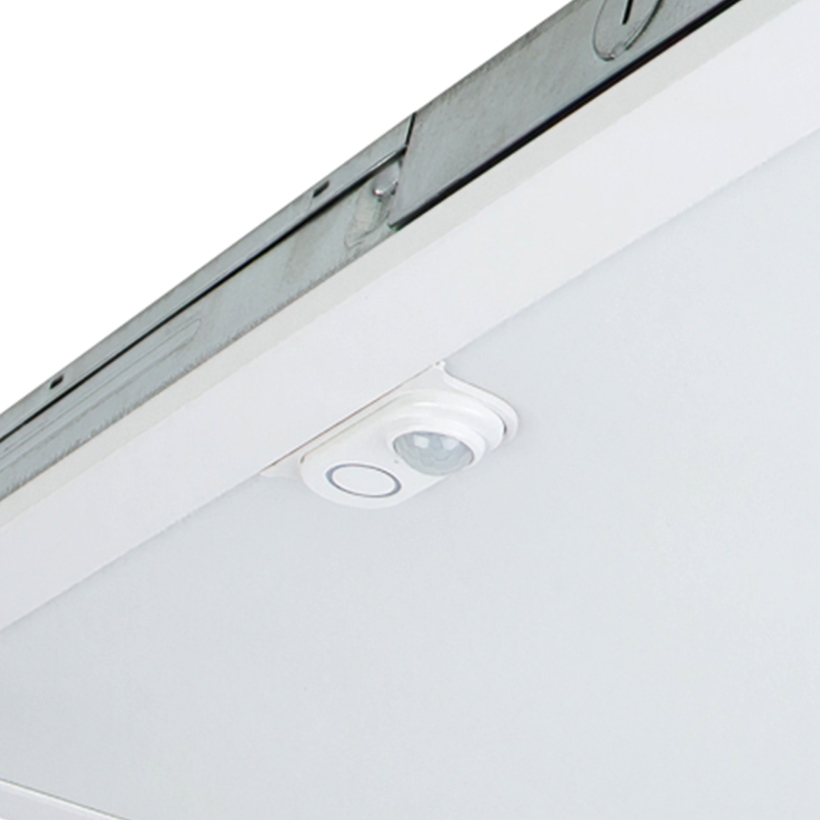

Integrated Sensor
Integrated Bluetooth PIR motion sensors enable each light to wirelessly connect, forming a seamless Bluetooth MESH network.
App Controlled
Control all of your lights with the ® Network Lighting Control APP. Set Schedules, create Zones, Groups, Scenes, adjust brightness levels and fine tune your CCT, all done through your mobile device.
Gold Level UL 1376 IoT Security Rating
With a Gold Level UL 1376 IoT Security Rating, you can rest assured that your network is safeguarded against any external cybersecurity threats.
Overview
The 2x4 LED Flat Panel Light features a low profile, white steel housing, and a frosted lens. These are equivalent to a traditional 3-lamp 32W T8 tube fixture and can be easily installed in a T-grid drop ceiling (optional surface mount available). Each 50W panel delivers up to 6,400 lumens and has an integrated ECO sensor, which functions as a PIR and a daylight harvesting sensor. Within the app, select the desired CCT from preset color temperatures (3000K, 3500K, 4000K, and 5000K) or select the CCT from a range of tunable whites (2700K-6500K). Using Bluetooth MESH, these sensors allow similarly equipped lights to communicate on the same network and can be controlled from a single device. Up to 100 lights can be controlled with the App or with the wall switch. Each panel light is Gold-level rated for protected data transmission, storage, and app security. Suitable for damp locations, they work best in hospitals, hotels, or office buildings. Only sold in 4-packs. Also available in 2x2 option.
Product Details:
- Steel housing with white frame and frosted polystyrene lens
- Gold Level UL 1376 IoT Security Rating
- Suitable for damp locations
- 120-277 VAC
- Certified by UL
- DLC 5.1 Premium
- 5-year warranty
Documents
LPDBL-M1-24-TW3C-SP50BLE IES File
LPDBL-M1-24-TW3C-SP50BLE Photometric Data Sheet Applications:
- Commercial Buildings
- Hospitals
- New Construction
- Offices
- Panel Lights
- Retail Shops
- Schools
- Trade Shows
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
UL Solutions has created a rating system that verifies the security features of connected products. UL security experts assess products and rate them for one of five security levels, ranging from Bronze to Diamond. Each level of the UL Internet of Things (loT) security rating system represents a set of security capabilities implemented in the product by the manufacturer. See the UL loT Security Rating Levels Guide for additional information on specific levels.
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
IC Rated
IC (Insulation Contact) Rated An IC-rated fixture is designed to operate in direct contact with insulation material. Its rating indicates that the fixture has added thermal protection, minimizing fire hazards.
NLC
NLC - This product meets the Design Lights Consortium (DLC) requirements for interior and exterior networked lighting control (NLC) systems. For more information, see the NLC Technical Requirements on the DLC site.
Tunable White
Tunable White bulbs and strips allow users to adjust the color temperature of the light output, ranging from warm to cool white, to suit different settings and preferences. This adjustability is achieved by mixing different proportions of white LEDs with varying color temperatures within a single fixture.
Need help?
Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Ambient Operating Temperature | -20~+45 °C (-4~+113 °F) |
|---|---|
| Beam Angle | 110° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
3000K, 3500K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC Premium, UL IoT Security Rating: Gold |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
200 mA @ 277 VAC, 460 mA @ 120 VAC |
| Dimensions | 2ft x 4ft |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
Bluetooth |
| Efficacy | 128 lm/W |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 3-lamp 32 W T8 Tubes |
| Finish | White |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 2 kV |
|
IP Rating
IP Rating
|
IP20 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 100000 Hours |
| Lumens | 6400 Lumens |
| Mount Type | Drop Ceiling |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Polystyrene Lens, Steel Housing |
| Product Weight | 9.6 lb (4.4 kg) |
| UL File Number | E469515 |
| Warranty | 5 Year |
| Wattage | 50 Watts |
| Wire Gauge | 18 AWG |
