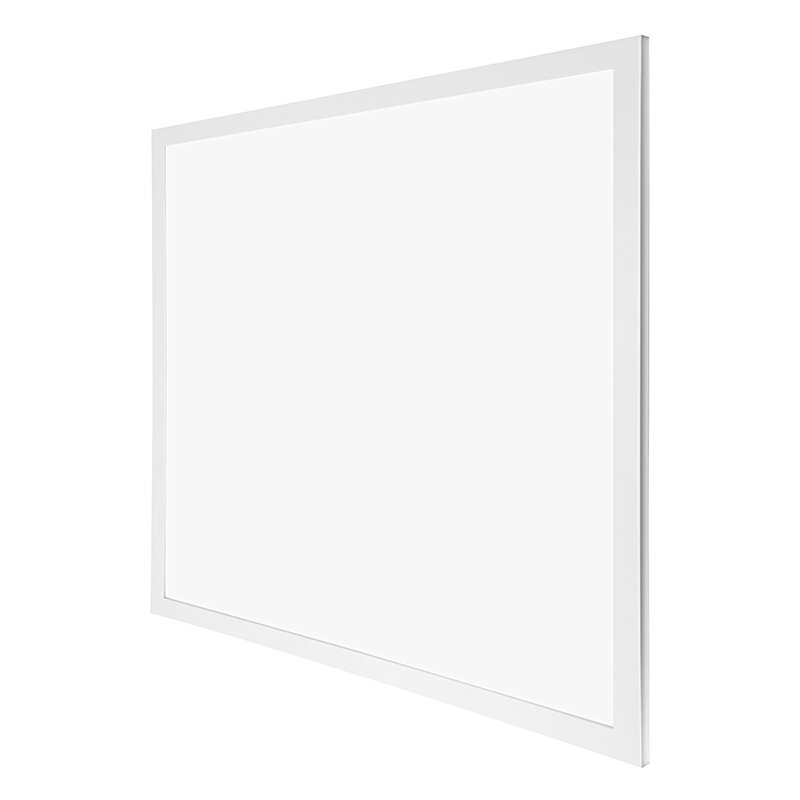

Name: 2’x2’ LED Panel Light - 40W - Even-Glow® LED Panel Light Fixture - Dimmable - Drop Ceiling - 4000 Lumens
Brand: Super Bright LEDs
SKU: LPD6-xK22-40-S
Price: 61.99 USD
Availability: InStock
Rating: 5 (12 reviews)

Overview

Description

Install LPD6 series Panel Light in suspended grids for sleek, energy-efficient illumination. with Even-Glow® technology, LEDs are diffused over the whole frosted panel to eliminate hotspots and create a clean, uniform distribution of light. Unlike T8 fluorescent tube alternatives, this fixture operates with out buzzing or flickering for far longer with less energy consumption. Constructed of white aluminum, the frame is both durable and lightweight. Slim design is the perfect fit for hospitals, schools, or offices, even in shallow spaces.

Product Details:

Hardware included for drop ceiling mount
Dimmable 0-10V
Available in 4000K or 5000K
100-277 VAC input
50000 hours L70 lifespan
Certified by UL
5 year warranty

This product has been certified by Underwriter Laboratories to their engineering and safety standards.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

New Construction
Retail, Commercial, and Industrial Lighting
Retrofit Installation
Office Lighting
Hospitals
Schools
Hotel Lighting
Restaurant

Specifications

Beam Angle	120°
Brand	Super Bright LEDs
Comparable Wattage	3-lamp 17W T8 Tubes
CRI	80+
Current Draw	330 mA
Dimensions	2ft x 2ft
Dimmable	Yes
Dimming Type TRIAC Dimming: Triode for alternating current (TRIAC) dimming is used to control high-voltage dimmable power supplies such as Magnitude Dimmable Power Supplies. These dimmable power supplies work by varying the power on the AC input side of the power supply by means of a TRIAC dimmer. This change in power on the AC input side will vary the voltage on the DC output side and control the intensity of the LEDs. TRIAC dimmers are common hardware store and household dimmers, which include brand names such as Lutron and Leviton. Pulse-Width Modulation Dimming: Pulse-width modulation (PWM) dimming can be used to control dimmable power supplies such as Mean Well HLG Series and Mean Well LPF Series. This type of dimming control adjusts the output current based on the duty cycle. As the duty cycle increases, current will increase and the LEDs will be brighter. Conversely, if the duty cycle decreases, the current will decrease and the LEDs will be dimmer. Pulse-width modulation for these drivers is based on a 10V signal level with a frequency between 100Hz~3KHz. The MCBRF-4A or MLD-5A are compatible for this application. Resistive Dimming: Resistive dimming can be used to control dimmable power supplies such as Mean Well HLG Series. The resistance can be fixed or variable. If a fixed level of dimming is required, a simple resistor is all that is needed to dim the LEDs to a particular level. If a varying dimmable level is desired, a potentiometer can serve this purpose. By changing the resistance value of the potentiometer, the output current of the power supply changes, and the LED intensity changes. Controlling a single power supply will require a 100K ohm potentiometer for 100% intensity (100K ohm) to approximately 10% intensity (10K ohm) based on where the wiper is positioned. 1-10V Dimming: 1-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-40~240 Series or 24V Mean Well HLG-40~240 Series. This type of dimming control is an older style for compatible dimmable power supplies and is being replaced with 0-10V dimmer control. 1-10V dimming control works by varying the voltage from 1-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 1-volt signal on the dimming wire allows 10% of the current to flow from the power supply, which generates approximately 10% of the maximum intensity for the LEDs. 0-10V Dimming: 0-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-600 Series or 24V Mean Well HLG-600 Series. This type of dimming control is the most popular and newest style for compatible dimmable power supplies. 0-10V dimming control works by varying the voltage from 0-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 0.6-volt signal on the dimming wires allows 6% of the current to flow from the power supply dimming the LEDs to approximately 6% of full intensity. 0-10V dimmers can be found here.	0-10V
Efficacy	100 lm/W
Environmental Rating	Non-weatherproof, Suitable for Damp Locations
Finish	White
Input Connection Type	Pigtail
IP Rating	IP20
LED Lifetime	50000 Hours
Lumen	4000 Lumens
Material	Aluminum, Polycarbonate, Steel
Operating Temperature	-20~+45 °C (-4~+113 °F)
Power Consumption	40 Watts
Product Weight	6lb 0oz (2.72kg)
Standards And Certifications Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here.	Certified by UL
UL File Number	E496515
Voltage	120-277 VAC

Print Specifications

Part NO	CCT Value CCT Value	LED Color
LPD6-40K22-40-S	4000K	Natural 4000K
LPD6-50K22-40-S	5000K	Cool 5000K

Accessories & Power Supplies

All Accessories

Dimmers

Emergency Drivers

Mounting

Installation Supplies

Wiring

Accessories Links

Accessory Category

Accessory Type:

$27.99 ea.

0-10 Volt DC Low Voltage Dimmer with Slide Dimmer Switch - 0-10V Dimmer Part Number: F019-W
In stock

This 0-10 volt DC low-voltage dimmer is designed for high-power LEDs, 3021/3023 BuckPuck™ LED drivers, and other compatible drivers or light engines with a 0-10V current-sinking control. Features logarithmic response and reverse polarity protection. Product comes complete with slider switch, wall trim plate, mounting screws, and wire nuts.
$44.99 ea.

0-10V LED Switch and Slide LED Dimmer - Single Pole/3-Way Part Number: DMD-LED3-105-x
In stock

Use this 0-10V LED switch and slide dimmer on LED fixtures, such as panels and high-bay lights, with 0-10V dimming capabilities. It has a paddle for on/off functionality and a small slider for dimming. Use the 3-way switch to control lights from two locations. Integrated high- and low-end trim adjustment dials allow access to the lowest and highest light levels without flickering. The dimmer is rated for six amps at 120 VAC or three amps at 277 VAC (amps = fixture wattage/voltage).
$34.99 ea.

0-10 Volt DC Low Voltage Dimmer with Rotary Dimmer Switch - 0-10V Dimmer Part Number: A019
In stock

This 0-10 volt DC low-voltage dimmer is designed for high-power LEDs, 3021/3023 BuckPuck LED drivers, and other compatible drivers or light engines with a 0-10V current-sinking control. Features logarithmic response and reverse polarity protection. Product comes complete with knob, wall trim plate, mounting screws, and wire nuts.

$9.99 ea.

Hanging Kit for LED Panel Lights - Suspension Mount - LP-HK Part Number: LP-HK
In stock

Hanging Kit includes a pair of adjustable 3-1/4' stainless steel braided cables, four swivel snap hooks, and mounting hardware. It attaches to the safety T-clips on the back of LED Panels to hang from standard hard ceilings, as well as exposed or unfinished ceilings.

$0.09 ea.

22-16 AWG Grey 3M Twist-On Wire Connector Part Number: WN-2216
In stock

Use these 3M 22-16 AWG grey wire connector for closed-end connections and secure splices. The UL-Listed twist-on wire connectors tighten with out ratcheting and feature a deep skirt to prevent bare wire from being exposed.
$8.99 ea.

LED Surge Protector - 5kA Max Capacity - 120-277 VAC - QR-SPD07-10 Part Number: QR-SPD07-10
In stock

In the event of a voltage surge or electrical failure, LED Surge Protector is an added defense for indoor or outdoor LED fixtures. Take advantage of the already safe, long lifespan of LEDs with this additional accessory. It provides a nominal discharge current of 5kA, and a maximum discharge current of 10kA for 120-277V drivers.

$0.39 per Foot

22 Gauge Wire - Two Conductor Power Wire - 22 AWG Part Number: WP22-2
In stock

Power Wire for low voltage installations. Parallel bonded two conductor 22 gauge stranded wire. Price per foot.
$0.59 per Foot

SJT Cable - Black Jacketed 18 Gauge Three Conductor Power Wire - 18 AWG Power Wire Part Number: WP18-35J
In stock

Parallel bonded three conductor 18 gauge 3x18 stranded power wire for installations. This standard SJT cable is ideal for high voltage applications. Price per foot.
