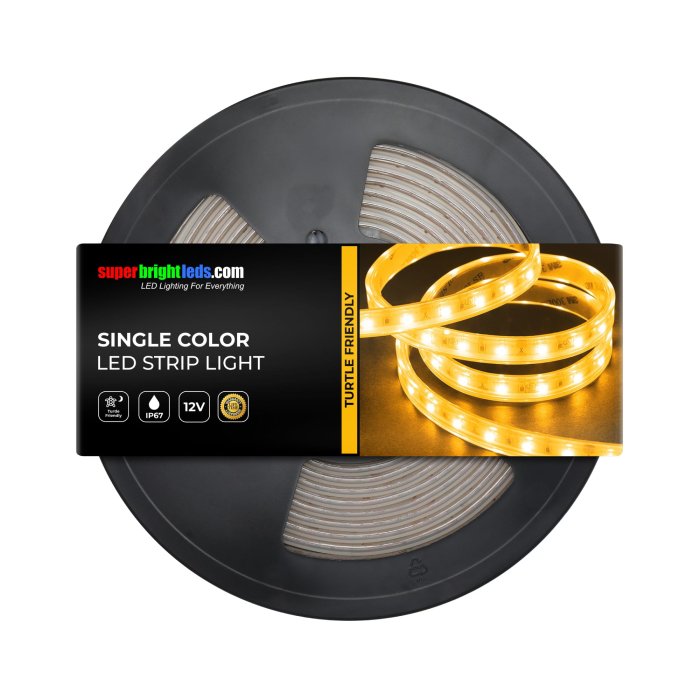

5m Turtle-Friendly Weatherproof Outdoor LED Strip Light - Amber - IP67 - 12V / 24V
Part Number:
HL-IP67-Color-TF-5m
Manufacturer Part Number:
Starting at
$96.99
ea.
Starting at
Was
In Stock
Features
- Turtle-friendly 590nm amber light protects marine, nocturnal, and migratory species
- IP67-rated to protect against dust and temporary submersion in water
- Tough silicone coating resists UV and abrasion from sustained outdoor use
- Cuttable design allows easy trimming to fit custom lengths
- Lifetime warranty
Frequently Bought Together
Total Price:
Loading...
Related Products
Overview
This turtle-friendly, 590nm amber LED strip light combines brilliant illumination and nighttime visibility with minimal environmental impact. It is IP67-rated with a heavy-duty silicone coating that protects against UV and abrasion for long-lasting outdoor performance. For outdoor use, see our selection of IP67-rated waterproof connectors. The peel-and-stick 3M™ adhesive backing enables fast and easy mounting to various surfaces. To learn more about turtle-friendly lighting, read our blog post found here.
Product Details:
- 12V or 24V inputs available
- 590nm Amber LEDs
- PWM Dimmable
- Max run: 5m (12V); 12.5m (24V)
- 8mm strip width
- CE Certified; UL Listed
- Lifetime Warranty
HL-IP67-Color-TF-5m Specification Sheet Applications:
- Beachfront Properties
- Boardwalks
- Parks
- Pathways
- Piers
- Walkways
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Turtle-friendly lighting is designed to drastically reduce the disorientating effects of artificial light pollution on the nesting instincts of turtles and other coastal wildlife. Fixtures that are designed to be turtle-friendly will have an ultra-warm or amber color temperature with a wavelength longer than 560 nanometers. They are full cutoff fixtures where most of the light is directed downward, minimizing the effect on the beach or night sky.
Use turtle-friendly lights in beachfront and coastal locations to ensure they remain dark enough for wildlife navigation while still offering adequate lighting for people. Learn more about the importance of Turtle-Friendly lighting in our Knowledge Base blog.
Use turtle-friendly lights in beachfront and coastal locations to ensure they remain dark enough for wildlife navigation while still offering adequate lighting for people. Learn more about the importance of Turtle-Friendly lighting in our Knowledge Base blog.
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Certifications/Compliance | CE, UL Listed |
| Dimmable | Yes |
| Dimmer Type | PWM |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
| Finish | White |
| Input Connection Type | 5.5 mm x 2.1 mm DC Barrel, Pigtail |
|
IP Rating
IP Rating
|
IP67 |
|
LED Beam Angle
LED Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
120° |
| LED Color | Amber |
| LED Density | 18 LEDs/ft |
| LED Type | 2835 SMD |
| Length | 16.4 ft (5 m) |
| LED Lifetime | 50000 Hours |
| Output Connection Type | 5.5 mm x 2.1 mm DC Barrel |
| Series | HighLight |
| Strip Width | 12mm (0.47in) |
| Wattage | 59 Watts |
| Wattage per Foot | 3.6 W/ft |
| Wire Length | 20.4 in. |
| Part NO |
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
Current Draw per Foot
Current Draw per Foot
Current Draw Per Foot is used to size power supplies, normally converted to watts per foot. This is equated using total wattage divided by number of linear feet. Current draw per foot is the amount of current consumed by an LED or LEDs in an electrical circuit per linear foot at a specific voltage, measured in milliamps (mA) or watts (W).
|
LEDs per Segment |
Max Run (Class 2)
Max Run (Class 2)
The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.
|
Minimum Cut Length |
Operating Voltage
Operating Voltage
LED Strip Light Voltages – What You Need to KnowChoosing the correct voltage for your LED tape lights ensures optimal performance, safety, and ease of installation. Here’s a quick guide to help you decide:
12 Volt ACCommon in landscape lighting setups, 12 VAC strips work with standard low-voltage AC transformers and are best suited for fixed outdoor applications such as landscape, hardscape, and deck lighting projects.
12 Volt DCThese strip lights are a go-to choice for smaller projects and mobile applications like RVs, boats, and vehicles. They are easy to work with, highly flexible, and perfect for short runs up to ~16 ft.
24 Volt DCIdeal for residential and commercial projects, 24 VDC strips are becoming the new industry standard. They offer longer run lengths (up to ~32 ft) with reduced voltage drop and increased efficiency.
36 Volt DCOffering extended runs with consistent brightness and reduced power loss across longer distances, 36 VDC strips are well suited for medium to large-scale installations.
48 Volt DCThese strips deliver optimal performance and the longest runs (40+ ft) of DC strip lights. Their ultra-low current draw minimizes heat and allows for thinner, more efficient wiring.
120 Volt ACThese high-voltage strips offer a plug-and-play strip lighting solution compatible with standard household wall outlets. They operate free from external drivers, simplifying project design and installation. They offer the longest max run (50–150+ ft) without a noticeable voltage drop. They are best suited for large areas, architectural lighting, and outdoor use. |
|---|---|---|---|---|---|---|
| STW-BYEL-C3F-10B5M-12V | 5 A | 300mA | 3 | 16.4 ft (5 m) | 50mm (1.97in) | 12 VDC |
| STW-BYEL-C6F-10B5M-24V | 2.5 A | 150mA | 6 | 26.2 ft (8 m) | 100mm (3.9in) | 24 VDC |
