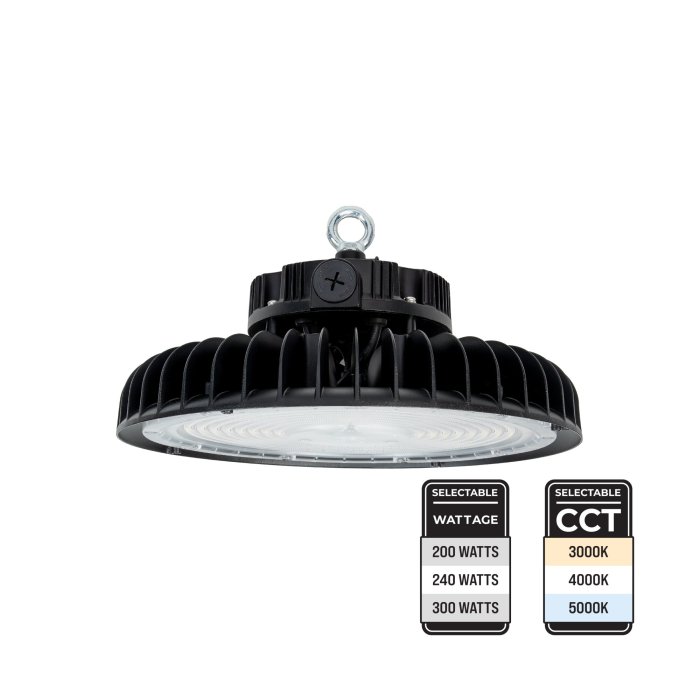

Sensor Ready UFO High Bay Light With Optional Reflector - 300W Max - Up to 48,000 Lumens - Field Selectable Wattage and CCT
Part Number:
HBUD3-SW3B300S-HDGLY-x
Manufacturer Part Number:
$197.99
ea.
Was
In Stock
Similar Products Available Today
Features
- Plug-and-play sensor-ready port for easy installation of a motion sensor
- Field Selectable Wattage: 200W, 240W, 300W
- Field Selectable CCT: 3000K, 4000K, 5000K
- High efficacy of 160 lm/W minimizes operating costs
- Up to 1,000W metal-halide equivalent
- Optional glare-reducing polycarbonate reflector
- Optional PIR or Microwave Motion Sensor for automatic lighting
- 0-10V Dimmable
Ask About This Product
Get instant AI-powered answers
Try asking:
Total Price:
Loading...
Most Popular Compatible Products
Overview
This Sensor Ready UFO High Bay Light features a sensor-ready port for automatic operation using an optional microwave or PIR motion sensor. This high bay offers versatile lighting with selectable wattage and color temperature for various industrial and commercial applications. Set the wattage and CCT using the selection switches on the side of the fixture. The optional motion sensors easily plug into the integrated 3.5mm AUX port located in the center of the lens. Both sensors feature daylight harvesting and corridor functions for optimized automatic lighting.
The fixtures' 48,000-lumen output and wide 90° beam angle are ideal for high-mounted locations in large areas. Each features a die-cast aluminum, corrosion-resistant housing, a white finish, and a clear polycarbonate lens. The optional polycarbonate reflector reduces glare and shadows while directing light downward toward warehouse shelving. The reflector installs easily with four stainless steel M4 6mm screws (included). Mount the aluminum high bay fixture using the included safety cable and the stainless steel eye bolt.
Product Details:
- Aluminum housing with polycarbonate lens
- Stainless steel eye bolt for mounting
- IP65 waterproof, suitable for wet locations
- 0-10V dimmable
- 100-277 VAC
- Surge protection: L-N: 6kV, L/N-PE: 6kV
- DLC Premium
- UL Certified
- 5-year warranty
Documents
HBUD3-SW3B300S-HDGLY 40K 200W Photometric File
HBUD3-SW3B300S-HDGLY 40K 200W IES File Dimensional Drawings
Applications:
- Distribution Centers
- Factories
- Gymnasiums
- Manufacturing Plants
- Packaging Facilities
- Retail Shops
- Supermarkets
- Warehouses
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Specifications
| Ambient Operating Temperature | -30 to 50 °C (-22 to 122 °F) |
|---|---|
|
Beam Angle
Beam Angle
Beam angle is used to express the angular dimension of light emitted from its source. The narrower the beam angle the more focused the light. Comparing two lights with the same lumen output, one with a 30° beam angle and another with a 90° beam angle, the 30° will appear brighter compared to the 90°, while the 90° will illuminate a larger area. Lights with a symmetrical output may have a beam angle expressed with a single value (e.g. W 120° x H 120° will be shown as 120°). Bulbs will typically have a single value expressing the outward beam angle projected at 360° (e.g. 120° is actually 360° x 120°).
|
90° |
| Brand | Super Bright LEDs |
|
CCT
CCT
 |
3000K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC Premium, IK08 |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
1.8/2.2/2.7 A @ 120 VAC, 800/960 mA/1.2 A @ 277 |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| DLC Product ID | S-9MHY5W |
| Efficacy | 160 lm/W |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Suitable for Wet Locations, Waterproof |
| Equivalency | 400 Watt Metal Halide, 1000 Watt Metal Halide |
| Finish | Black |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 6 kV (L-N), 6 kV (L/N-PE) |
|
IP Rating
IP Rating
 |
IP65 |
| LED Color | Warm White, Natural White, Cool White, Selectable White |
| Rated Life (L70) | 50000 Hours |
| Lens Type | Polycarbonate |
| Lumens | 32000 Lumens, 38400 Lumens, 48000 Lumens |
| Motion Sensor | Optional |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| UL File Number | E366643 |
| Warranty | 5 Year |
| Wattage | Selectable Wattage, 200 Watts, 240 Watts, 300 Watts |
| Wire Gauge | 18 AWG (L/N/G), 22 AWG (dimming) |
| Part NO | Product Weight |
|---|---|
| HBUD3-SW3B300S-HDGLY | 6.7 lb (3.0 kg) |
| HBUD3-SW3B300S-HDGLY-MCV | 6.7 lb (3.0 kg) |
| HBUD3-SW3B300S-HDGLY-MCV-PR | 7.7 lb (3.5 kg) |
| HBUD3-SW3B300S-HDGLY-PIR | 6.7 lb (3.0 kg) |
| HBUD3-SW3B300S-HDGLY-PIR-PR | 7.7 lb (3.5 kg) |
| HBUD3-SW3B300S-HDGLY-PR | 7.7 lb (3.5 kg) |
