Green Creative 2x2 Troffer Retrofit Kit - 25W - Dimmable - 3,600 Lumens - 120-277 VAC - 4000K
Part Number:
25TROFKIT22DIM-840-277V
Manufacturer Part Number:
25TROFKIT22DIM/840/277V
$29.99
ea.
Was
In Stock
Features
- Universally compatible with existing 2x2' troffers
- 0-10V dimming control compatible
- Easy installation
- 120° beam angle with a frosted, low-glare lens
Related Products
Overview

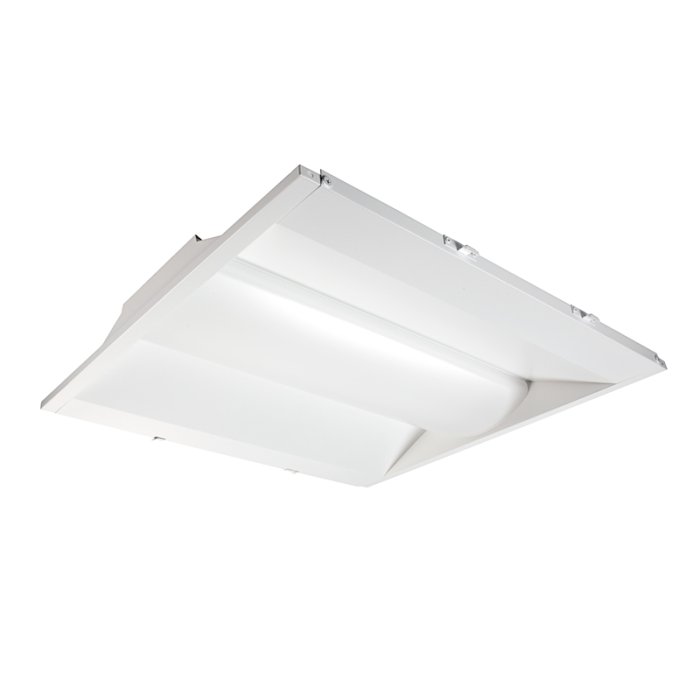

Green Creative's Elevate Series 2x2 Troffer Retrofit Kit is designed to easily install in existing 2x2 troffers. The retrofit kit replaces a fixture with three 3ft 17-watt T8 tubes. The steel housing is sleek and lightweight, making installation easy. The curved, frosted lens delivers 120 degrees of uniform light. This long-lasting fixture has an L70 lifetime of 100,000 hours and a high 143 lm/W.
Product Details:
- White steel housing and frosted lens
- 0-10 V Dimming
- Installs in existing 2x2 troffers
- 120-277 VAC
- UL Classified
- 10-year warranty
Documents
25TROFKIT22DIM-840-277V IES File
25TROFKIT22DIM User Manual Applications:
- Commercial Suspended Grid Ceilings
- Gymnasiums
- Hospitals
- Hotels
- New Construction
- Schools
Super Bright LEDs, Inc. offers a 10-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. UL tests specific properties of product samples to ensure that they adhere to applicable UL requirements, Standards for Safety, and other national and international organization's standards.
Need help?
Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Beam Angle | 120° |
|---|---|
| Brand | Green Creative |
|
CCT
CCT
|
4000K |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
UL Classified |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
210 mA @ 120 VAC, 90 mA @ 277 VAC |
| Dimensions | 2ft x 2ft |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| Efficacy | 144 lm/W |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 3-lamp 17W T8 Tubes |
| Finish | White |
| Input Connection Type | Pigtail |
| LED Color | Natural White |
| Rated Life (L70) | 100000 Hours |
| Lens Color | Frosted |
| Lumens | 3600 Lumens |
| Manufacturer Part Number | 25TROFKIT22DIM/840/277V |
| Mount Type | Drop Ceiling |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Steel Housing |
| Product Weight | 8.4 lb (3.8 kg) |
| UL File Number | E364641 |
| Warranty | 10 Year |
| Wattage | 25 Watts |
