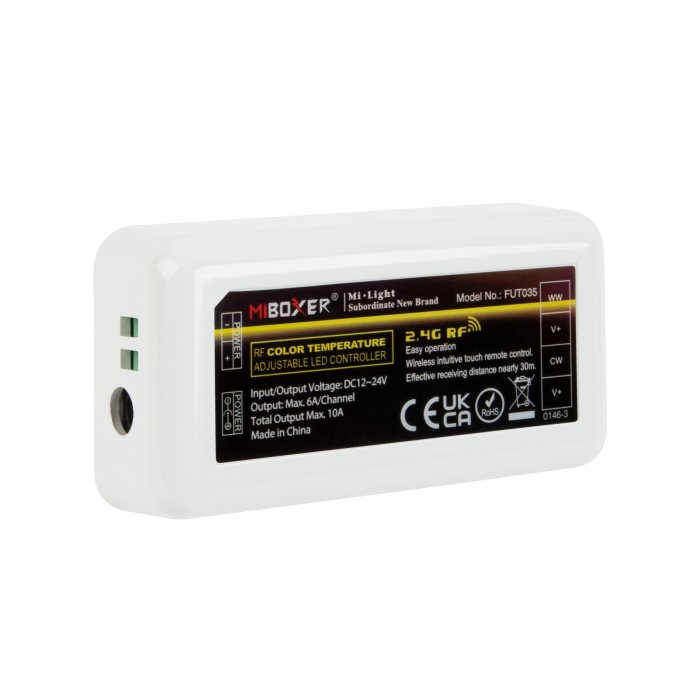

MiBoxer LED Controller - Tunable White Light Strip Controller - 6 Amps / Channel - 12-24 VDC - Optional Remote - Optional WiFi Hub

Part Number: FUT035-x
Manufacturer Part Number:
Starting at
$13.99 ea.
In Stock
Request a Quote
box-open-solid
truck-fast-solid
On orders $300 and up within the contiguous U.S.
Item does not qualify

Features

  • Controls single-color CCT or tunable white LED strip lights
  • Control up to four light zones over a 2.4 GHz network or with the RF remote
  • Remote has a 30m communication range
  • Operate using the “Tuya Smart” App or the "MiBoxer" App using Wi-Fi Hub
  • Wi-Fi Hub communicates using a 2.4GHz Wi-Fi connection
View more details

Overview

The tunable white CCT light strip controller provides smooth color temperature and brightness control with two output channels for tunable CCT or a pair of single CCT LED strip lights. The MiBoxer controller has a 30m communication range with a synchronization function that allows multiple controllers to be managed simultaneously. The optional RF remote control adjusts the brightness and color temperature of up to four lighting zones. Link to compatible bulbs, controllers, and fixtures using a 2.4 GHz connection. Power using 2x AAA batteries (not included). The dimmer must be paired with a Wi-Fi LED Controller Hub for smartphone control.

The optional MiBoxer LED Wi-Fi Hub controls any compatible LED product or fixture using a smartphone or tablet. Use the "Tuya Smart" app or the "MiBoxer" app to fully customize a light setup. The gateway communicates with the LED controller over a 2.4GHz Wi-Fi connection. Power the gateway using the included USB cable.

Product Details:

  • Remote control communication range: 100ft (30m)
  • Connect to power using screw terminals or 5.5mm barrel connector
  • Output up to 240W (24 VDC)
  • Six amps per channel (10 amps total)
  • 12-24 VDC
UKCA Certification
UKCA Certified
UKCA Certification
UKCA Certified
CE
CE
CE
CE
FCC
FCC
FCC
FCC
2 Years
2 Years
2 Years
2 Years

MiBoxer Smart Ecosystem

Smartphone or Tablet

Controller Hub

MiBoxer WiFi Controller

Compatible Strip Lights

MiBoxer Smart Ecosystem

Bring smart lighting to your home or business with the complete line of MiBoxer products. A single WiFi Hub connects to the MiBoxer app, allowing you to control groups of lights both inside and outside from the convenient location of your smartphone or tablet. MiBoxer, previously known as MiLight, has been updated with new features including voice control, and works seamlessly with all previous MiLight devices.

  • Control multiple lights remotely to emit thousands of color or white options. Customize the brightness, saturation, and color-changing modes. Schedule lights to turn on and off with the scheduled timer.
  • With the app's linking feature, you can group lights and controllers to specific zones to manage multiple devices at a time.
  • Third party voice capabilities allow you to control your lights hands-free, using Amazon Alexa or Google Assistant.

MiBoxer Remote Ecosystem

RF Remote

MiBoxer WiFi Controller

Compatible Strip Lights

MiBoxer Remote Ecosystem

Use this wireless RF remote with Waterproof RGB or MiLight/MiBoxer RGB or RGBW  controllers for LED strip light operation or with compatible LED smart bulbs and RGBW flood lights. Select pure white or use the touch-activated color-selection wheel to choose from thousands of color options. Control speed, brightness, and dynamic or static color modes from up to 98' away in the open air. The remote also has 4 zone-control buttons for lights in different areas.

Specifications

Ambient Operating Temperature -20~+60 °C (-4~+140 °F)
Amps 10 Amps
Amps Per Channel 6 Amps/CH
Certifications/Compliance Click for more information about this specification CE, FCC, UKCA
Channels 2 Channels
Control Type Handheld (RF) Remote, Smartphone (Bluetooth)
Detection Range 98.4 ft
Environmental Rating Click for more information about this specification Non-weatherproof
Finish White
Input Connection Type 5.5 mm x 2.1 mm DC Barrel, Screw Terminal
IP Rating Click for more information about this specification IP20
Max Output Current 10 A
Output Connection Type Screw Terminals
Product Materials Polycarbonate
Supported Smart Phone Apps MiBoxer
Voltage 12-24 VDC
Warranty 2 Year
Swipe left to see additional specifications
Part NO Max Wattage
FUT035
FUT035-R 300 Watts
FUT035-WIFI2
