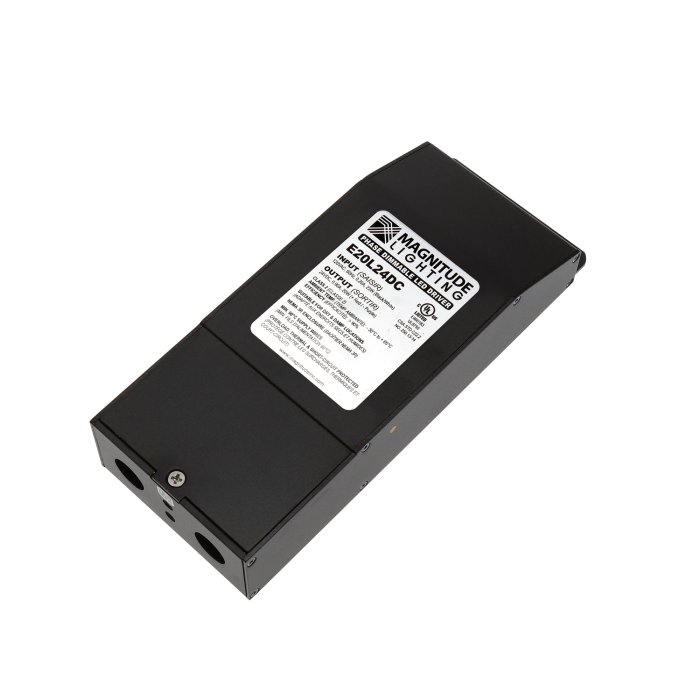

Magnitude Lighting E-Series Listed Constant Voltage TRIAC Dimming Driver - 24 VDC - 20W / 40W / 60W / 75W / 96W - Optional Power Cord
Part Number:
ExL24DC
Manufacturer Part Number:
Starting at
$87.99
ea.
Starting at
Was
Features
- Enclosure is code-compliant
- TRIAC dimming
- 120 VAC input
- UL Listed; Class 2
Related Products
Overview
The E-Series Listed from Magnitude Lighting is an electronic Class 2, TRIAC-dimmable, LED driver with a low-profile aluminum case. The UL Listed enclosure includes a wiring compartment with two ½" knockouts for easy installation, eliminating the need for a separate junction box. The driver features auto reset, overcurrent and short circuit protection and an efficiency over 90%, resulting in a low operating case temperature. This 24 VDC driver is ideal for longer runs to avoid excessive voltage drops. The E-Series Listed is TRIAC-dimmable down to 1% with leading edge TRIAC dimmers. An optional 6-foot, 18 AWG power cord is available for plugging power supplies into 120 VAC receptacles.
Product Details:
- Two 1/2" knockout conduit access points
- Phase-dimmable down to 1% with leading edge TRIAC dimmer
- 120 VAC input
- IP67; NEMA 3R
- UL Listed; Class 2
- 5-year warranty
Documents
E-Series Listed Specification Sheet Applications:
- Electronic Instruments or Equipment
- Home Interiors
- Industrial Control Systems
- Mechanical and Electrical Equipment
- Security Systems
- Sign Lighting
- Stage & Theaters
- Trade Shows
- Video Wall Displays
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
Class 2
Class 2 power supplies must meet the National Electric Code (NEC) and Underwriters Laboratories (UL 1310) standards for wiring requirements and power limitations of AC/DC power supplies to minimize shock or fire risks. All Class 2 power supplies must meet the NEC overcurrent protection and wiring sizing regulations. They must be constructed with ‘In-Wall’ rated wiring for permanent installation inside walls or floors, where they may be surrounded by insulation. These wiring requirements help prevent cracking or melting of the wire, which could cause a fire hazard. These power supplies must have a maximum power capacity of 100 VA and cannot exceed a 30 VAC or 60 VDC output, minimizing the risk of electric shock or overheating from excessive currents.
NEMA X
The National Electrical Manufacturers Association (NEMA) standard refers to a set of technical specifications and guidelines established by NEMA. These standards ensure the safety, performance, and interoperability of electrical products and systems. NEMA standards cover a wide range of topics, including wiring, motors, enclosures, and industrial controls, providing a framework that promotes consistency, reliability, and safety in manufacturing and use. Compliance with NEMA standards is critical for manufacturers to meet regulatory requirements and ensure product compatibility and safety.
- Type 3R (Outdoor use)
- Protects against rain, sleet, and snow
- Provides additional protection against ice formation on the enclosure
- Type 4X (Indoor/Outdoor use)
- Protects against rain, sleet, and snow
- Provides additional protection against ice formation on the enclosure
- Prevents entry of solid foreign objects and water from hose down or splash
- Offers protection from corrosive substances
Specifications
| Ambient Operating Temperature Range | -30 to 65 °C (-22 to 149 °F) |
|---|---|
| Brand | Magnitude |
| Built-in PFC Function | No |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact, energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else who may be involved confidence that the product is safe and will work well in their application. UL and ETL certifications relate to safety and installation and are the most common for power supplies. |
Class 2, UL Listed, NEMA 3R |
| Dimmable | Yes |
|
Dimming Control
Dimming Control
TRIAC Dimming: This is the most commonly recognized dimming type, with TRIAC Dimmers found in most Home Centers and hardware stores. TRIAC (TRIode for Alternating Current) dimmers operate by modifying the voltage waveform, reducing the amount of power input to the device being controlled. Reducing the input power will result in a corresponding reduction in a power supply's output voltage/current or a decrease in the lumen output of a light fixture. TRIAC dimmers come in two variations: Forward Phase and Reverse Phase
0-10V Dimming: This type of dimming control is most commonly found in commercial applications. It works by varying a voltage from 0 to 10 VDC on dedicated dimming wires. The output of a power supply or light fixture is proportional to the voltage applied. Pulse-Width Modulation (PWM) Dimming: This dimming control adjusts output by rapidly turning the output on and off at a fixed frequency. The proportion of on-time to total time sets the dimming percentage. Potentiometer Dimming: Potentiometer dimming varies the output using a variable resistor, or potentiometer, to set the dimming level. |
TRIAC (MLV) |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
| Input Connection Type | Pigtail |
| Input Voltage | 120 VAC |
|
IP Rating
IP Rating
|
IP67 |
| Output Connection Type | Pigtail |
| Output Voltage | 24 VDC |
| Warranty | 5 Year |
| Part NO | Output Current |
Output Power
Output Power
A power supply's power consumption is measured in watts and refers to the maximum amount of power it is capable of delivering. For best results, choose a power supply that offers a minimum of 20% wattage overhead for your application. Wattage overhead ensures that your project will function correctly, extends the life of the power supply, and offers greater design flexibility by allowing for project expansion. |
|---|---|---|
| E20L24DC | 900 mA | 20 Watts |
| E20L24DC(POWERCORD) | 900 mA | 20 Watts |
| E40L24DC | 1750 mA | 40 Watts |
| E40L24DC(POWERCORD) | 1750 mA | 40 Watts |
| E60L24DC | 2630 mA | 60 Watts |
| E60L24DC(POWERCORD) | 2630 mA | 60 Watts |
| E75L24DC | 3300 mA | 75 Watts |
| E75L24DC(POWERCORD) | 3300 mA | 75 Watts |
| E96L24DC | 4160 mA | 96 Watts |
| E96L24DC(POWERCORD) | 4160 mA | 96 Watts |
