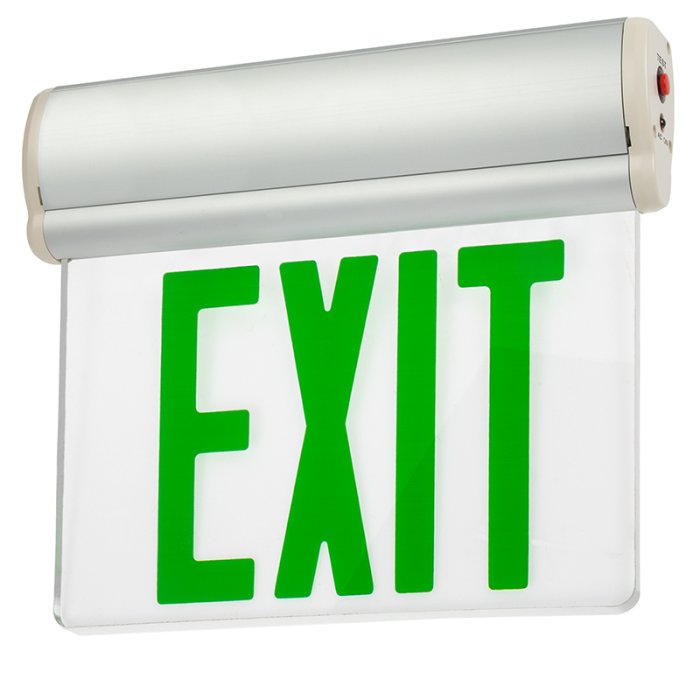

Edge Lit LED Exit Sign with Emergency Battery Backup - Single Face - Green
Part Number:
XSEL2-G
Manufacturer Part Number:
$42.99
ea.
Was
In Stock
Features
- Built-in battery backup with 90+ minutes of emergency lighting
- 24 hour full recharge time
- Fire-retardant housing with charging indicator and test button
- Removable arrows for exit direction
- Also available with a red lens
- UL 924 Listed
Related Products
Overview
The edge-lit LED exit sign with a battery backup is a reliable emergency signage solution with a modern design. In the event of a power outage, the integrated Ni-MH battery produces up to 90+ minutes of emergency lighting from a 24-hour charge. The sign is constructed of a clear, impact-resistant acrylic face with an aluminum housing with a charge indicator and a test button. Customize by adjusting the arrows to point in the direction of the exit. Surface mount from the top, back, or side of the base. Also available with a red lens.
Product Details:
- Included charging indicator and test button
- Ni-MH battery delivers 90+ minutes of power
- 2 kV surge protection
- Aluminum housing with an acrylic panel
- Ceiling mount, side wall mount, or rear wall mount
- 120-277 VAC
- UL 924 Listed
- Lifetime Warranty (2-year warranty on battery)
Applications:
- Commercial Lighting
- Emergency Lights
- Industrial Facilities
- Safety and Egress Code Compliance
- Stairwells and Public Corridors
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | 0 to 40 °C (32 to 104 °F) |
|---|---|
| Battery Type | Ni-MH |
| Brand | Super Bright LEDs |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
UL Listed |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
10 mA @ 277 VAC, 30 mA @ 120 VAC |
| Emergency Operation Time | 90+ Minutes |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Finish | Gray |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 2 kV |
|
IP Rating
IP Rating
|
IP20 |
| LED Color | Green |
| Rated Life (L70) | 30000 Hours |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Acrylic, Aluminum Housing |
| Product Weight | 2.7 lb (1.2 kg) |
| Recharge Time | 24 Hours |
| UL File Number | E502822 |
| Warranty | Lifetime |
| Wattage | 3 Watts |
| Wire Gauge | 18 AWG |
