DiodeDrive Constant Voltage Power Supply with Integrated Junction Box - Enclosed - 24 VDC - 96W - Optional Power Cord
Part Number:
DVMM-xW-24V-5JF
Manufacturer Part Number:
Starting at
$149.99
ea.
Starting at
Was
Features
- Code-compliant enclosure
- 5-in-1 TRIAC dimming
- 110-277 VAC input
- UL Listed; Class 2; Class P
Related Products
Overview

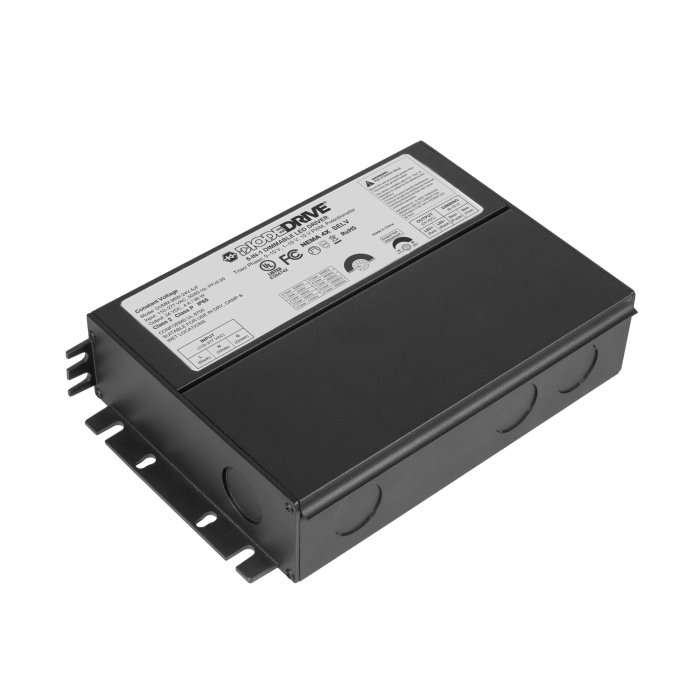

The DiodeDrive Constant Voltage power supply eliminates flicker and strobing in your video recording setup with selectable PWM frequency. This 96W 5-in-1 dimmable power supply, controls light output using TRIAC, 0-10V, 1-10V, PWM, or potentiometer dimming controls. The NEMA 4X rated housing is suitable for wet, damp, and dry locations. With seven knockouts and mounting tabs on two of the sides, it can be mounted in multiple orientations to fit your installation requirements. The snap-close, single hinge junction box simplifies wiring and the optional power cord ensures easy integration into any system. The output fine tuning knob allows you to set the maximum output voltage to compensate for voltage drop on long wiring runs or set a 17-25 VDC maximum output voltage for your application.
Product Details:
- 7 knockout conduit access points
- 5-in–1 Dimming: TRIAC, 0–10V, 1–10V, PWM, and Potentiometer
- 110-277 VAC
- IP65 waterproof; NEMA 4x
- UL Listed; Class 2; Class P
- 5-year warranty
DVMM 24 VDC Power Supply Specification Sheet Applications:
- Electronic Instruments or Equipment
- Home Interiors
- Industrial Control Systems
- Mechanical and Electrical Equipment
- Security Systems
- Sign Lighting
- Stage & Theaters
- Trade Shows
- Video Wall Displays
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
Class 2
Class 2 power supplies must meet the National Electric Code (NEC) and Underwriters Laboratories (UL 1310) standards for wiring requirements and power limitations of AC/DC power supplies to minimize shock or fire risks. All Class 2 power supplies must meet the NEC overcurrent protection and wiring sizing regulations. They must be constructed with ‘In-Wall’ rated wiring for permanent installation inside walls or floors, where they may be surrounded by insulation. These wiring requirements help prevent cracking or melting of the wire, which could cause a fire hazard. These power supplies must have a maximum power capacity of 100 VA and cannot exceed a 30 VAC or 60 VDC output, minimizing the risk of electric shock or overheating from excessive currents.
Class P
Class P is a UL-listed program that allows manufacturers to substitute compliant LED drivers without recertifying their products. It has established guidelines for evaluating and testing standardized LED driver designs and ratings to meet nationally accepted safety standards (including UL 8750) and be free of a reasonably foreseeable fire risk, electric shock, or other hazards. This program offers manufacturers flexibility, cost savings, and faster market access by enabling driver exchanges without recertification.
Products with a Federal Communications Commission (FCC) label meet all requirements and rules set forth by the FCC and won't cause interference with other electronic devices. According to FCC's website, "The Federal Communications Commission regulates interstate and international communications by radio, television, wire, satellite and cable in all 50 states, the District of Columbia and U.S. territories." Products that generate radio frequency (RF) energy, such as RF remote controls and certain LED light bulbs, are tested to ensure that they are within the FCC's guidelines and limits and do not cause harmful interference.
NEMA X
The National Electrical Manufacturers Association (NEMA) standard refers to a set of technical specifications and guidelines established by NEMA. These standards ensure the safety, performance, and interoperability of electrical products and systems. NEMA standards cover a wide range of topics, including wiring, motors, enclosures, and industrial controls, providing a framework that promotes consistency, reliability, and safety in manufacturing and use. Compliance with NEMA standards is critical for manufacturers to meet regulatory requirements and ensure product compatibility and safety.
- Type 3R (Outdoor use)
- Protects against rain, sleet, and snow
- Provides additional protection against ice formation on the enclosure
- Type 4X (Indoor/Outdoor use)
- Protects against rain, sleet, and snow
- Provides additional protection against ice formation on the enclosure
- Prevents entry of solid foreign objects and water from hose down or splash
- Offers protection from corrosive substances
Specifications
| Ambient Operating Temperature Range | -40 to 60 °C (-40 to 140 °F) |
|---|---|
| Brand | DiodeDrive |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact, energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else who may be involved confidence that the product is safe and will work well in their application. UL and ETL certifications relate to safety and installation and are the most common for power supplies. |
Class 2, Class P, FCC, UL Listed, NEMA 4X |
| Dimmable | Yes |
|
Dimming Control
Dimming Control
TRIAC Dimming: This is the most commonly recognized dimming type, with TRIAC Dimmers found in most Home Centers and hardware stores. TRIAC (TRIode for Alternating Current) dimmers operate by modifying the voltage waveform, reducing the amount of power input to the device being controlled. Reducing the input power will result in a corresponding reduction in a power supply's output voltage/current or a decrease in the lumen output of a light fixture. TRIAC dimmers come in two variations: Forward Phase and Reverse Phase
0-10V Dimming: This type of dimming control is most commonly found in commercial applications. It works by varying a voltage from 0 to 10 VDC on dedicated dimming wires. The output of a power supply or light fixture is proportional to the voltage applied. Pulse-Width Modulation (PWM) Dimming: This dimming control adjusts output by rapidly turning the output on and off at a fixed frequency. The proportion of on-time to total time sets the dimming percentage. Potentiometer Dimming: Potentiometer dimming varies the output using a variable resistor, or potentiometer, to set the dimming level. |
0-10V, 1-10V, Potentiometer, PWM, TRIAC (ELV), TRIAC (MLV), TRIAC (MLV+ELV) |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
| Input Connection Type | Pigtail |
| Input Voltage | 110-277 VAC |
|
IP Rating
IP Rating
|
IP65 |
| Number of Outputs | 1 |
| Output Connection Type | Pigtail |
| Output Current | 4000 mA |
|
Output Power
Output Power
A power supply's power consumption is measured in watts and refers to the maximum amount of power it is capable of delivering. For best results, choose a power supply that offers a minimum of 20% wattage overhead for your application. Wattage overhead ensures that your project will function correctly, extends the life of the power supply, and offers greater design flexibility by allowing for project expansion. |
96 Watts |
| Output Voltage | 24 VDC |
| Warranty | 5 Year |
