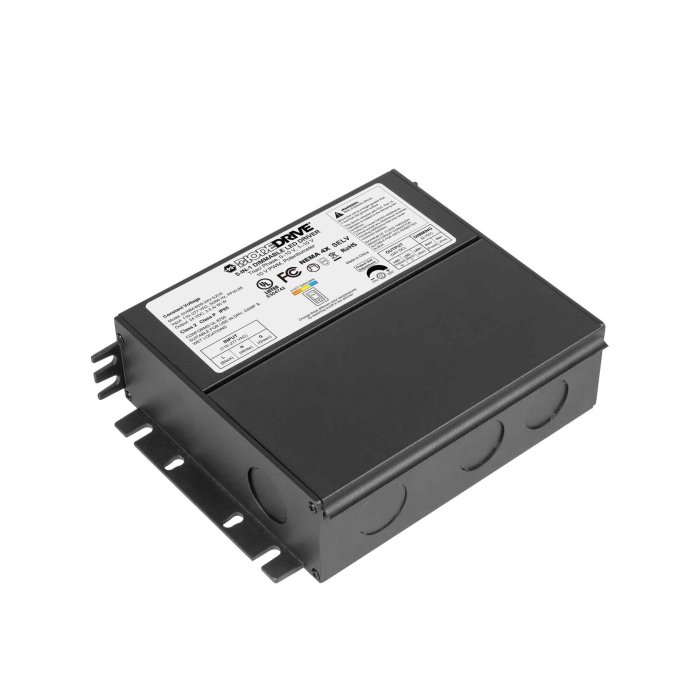

DiodeDrive 24 VDC Constant Voltage Power Supply - 60W / 96W - On/Off CCT Switching - 5-in-1 Dimming - Integrated Junction Box - Wet Location Rated

brand logo
Part Number: DVMM-xW-24V-5JCS
Manufacturer Part Number:
Starting at
$89.99 ea.
In Stock
Request a Quote
box-open-solid
truck-fast-solid
On orders $300 and up within the contiguous U.S.
Item does not qualify

Features

  • Drive tunable white flexible LED strips without a controller
  • 5-in-1 Dimming: TRIAC, 0-10V, 1-10V, PWM, and Potentiometer
  • Available in 60W and 96W versions
  • NEMA 4X rated for wet, damp, and dry locations
  • Toolless snap close junction box for easy wiring
  • Optional 18 AWG power cord
View more details

Overview

Eliminate the need for a Tunable White controller with the DiodeDrive CCT Switchable Constant Voltage power supply. By switching the power on and off you can cycle through warm, natural, and cool color temperatures. These 60W and 96W 5-in-1 dimmable power supplies control light output using TRIAC, 0-10V, 1-10V, PWM, or potentiometer dimming controls. The NEMA 4X rated housing is suitable for wet, damp, and dry locations. With seven knockouts and mounting tabs on two of the sides, it can be mounted in multiple orientations to fit your installation requirements. The snap-close, single hinge junction box simplifies wiring and the optional power cord ensures easy integration into any system. The output fine tuning knob allows you to set the 17-25 VDC maximum output voltage to compensate for voltage drop on long wiring runs or set a maximum light output for your application.

Product Details:

  • Black aluminum housing
  • IP65 waterproof
  • Flat, edge, horizontal, or vertical mounting options
  • 110-277 VAC
  • Adjustable output: 24 VDC (17-25V)
  • PWM, 4000 Hz constant frequency
  • UL Listed
  • 5-year warranty
Applications:
  • Cabinets
  • Cove Lighting
  • Home Interiors
  • Light Bars
  • Outdoor Kitchens
  • Outdoor Signs and Advertisements
  • Pavilions
  • Sign Lighting
  • Stage & Theaters
  • Strip Lights
  • Toe Kick Lighting
  • Trade Shows
5 Years
5 Years
5 Years
5 Years
UL Listed
UL Listed
UL Listed
UL Listed
Class 2
Class 2
Class 2
Class 2
Class P
Class P
Class P
Class P
FCC
FCC
FCC
FCC
Selectable CCT
Selectable CCT
Selectable CCT
Selectable CCT
NEMA 4X
NEMA 4X
NEMA 4X
NEMA 4X
5-In-1 Dimmable
5-In-1 Dimmable
5-In-1 Dimmable
5-In-1 Dimmable

Specifications

Ambient Operating Temperature Range -40~+60 °C (-40~+140 °F)
Brand DiodeDrive
Certifications/Compliance Click for more information about this specification Class 2, Class P, FCC, UL Listed
Dimmable Yes
Dimming Control Click for more information about this specification 0-10V, 1-10V, Potentiometer, PWM, TRIAC (ELV), TRIAC (MLV), TRIAC (MLV+ELV)
Environmental Rating Click for more information about this specification Suitable for Wet Locations, Waterproof
Input Connection Type Pigtail
Input Voltage 110-277 VAC
IP Rating Click for more information about this specification IP65
Number of Outputs 3
Output Connection Type Pigtail
Output Voltage 24 VDC
Warranty 5 Year
Swipe left to see additional specifications
Part NO Output Current Output Power
DVMM-60W-24V-5JCS 2500 mA 60 Watts
DVMM-60W-24V-5JCS(POWERCORD) 2500 mA 60 Watts
DVMM-96W-24V-5JCS 4000 mA 96 Watts
DVMM-96W-24V-5JCS(POWERCORD) 4000 mA 96 Watts
