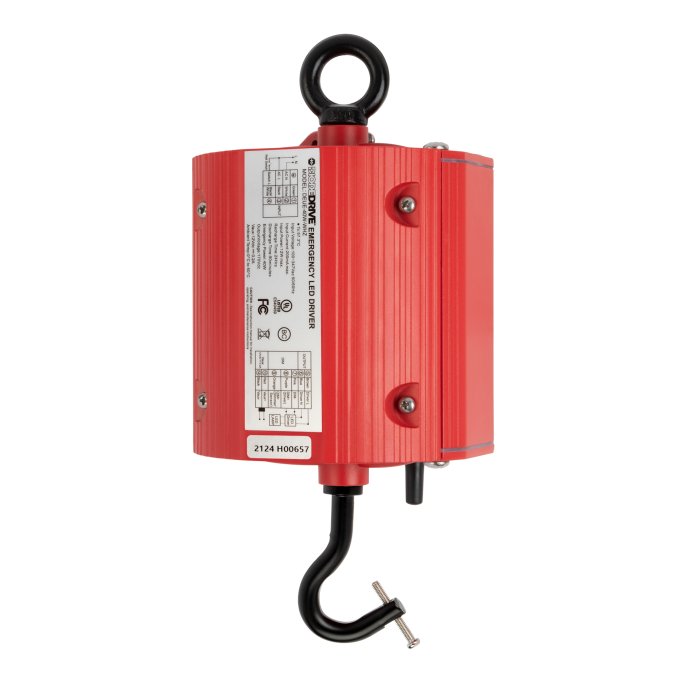

DiodeDrive LED UFO High Bay Emergency Battery Backup - 40W - 100-347 VAC Input - 170 VDC Output

DiodeDrive LED UFO High Bay Emergency Battery Backup - 40W - 100-347 VAC Input - 170 VDC Output

brand logo
Part Number


  • 90-minute constant emergency power
  • Wide input voltage range: 100-347 VAC
  • Large Integrated Junction Box
  • Self-test function
  • Simple wiring for easy attachement of the LED driver's AC input
  • UL 924 Listed
  • CEC Title 20
View more details
Out of Stock, Expected 08/20/24
Backorder Available
$229.99 ea.
Free Shipping
On orders $300 and up within the contiguous U.S.
Read More

Item does not qualify


The DiodeDrive LED UFO High Bay Emergency Battery Backup and Driver switches on automatically to provide backup battery power directly to an LED UFO high bay fixture at a voltage output of 170 VDC. The internal lithium-ion battery provides backup light for a minimum of 90 minutes and has a 24-hour recharge time. The driver has a wide input voltage of 100-347 VAC. The constant wattage design maintains the output wattage even as the system voltage diminishes. The UL 924 Listed certification meets or exceeds specific safety and fire hazard codes required for commercial properties in the United States. Required periodic testing can be done manually by pressing the switch on the driver remotely, using the optional RF test remote, or automatically, with the included self-test feature.

Product Details:

  • Ideal for use with UFO high bay fixtures
  • Simple wiring directly to the AC inputs
  • 0-10V dimming connections for fixtures >40W up to 300W
  • Optional RF remote for required periodic testing
  • IP65 waterproof rating
  • Lithium-ion battery
  • 5-year warranty
UL Listed
UL Listed
CEC Title 20 Compliant
CEC Title 20 Compliant
5 Years
5 Years
100-347 VAC
100-347 VAC
UL 924
UL 924
RF Remote
RF Remote
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
IP Ratings
This product meets or exceeds Underwriters Laboratories (UL) testing standards for emergency lighting and power equipment used to supply power and illumination in critical locations when the regular power fails.

This product meets California Energy Commission (CEC) Title 20 requirements and is registered in their Modernized Appliance Efficiency Database System (MAEDbS).

CEC California Title 20 mandates that consumer products sold in the state meet specified energy efficiency standards, aiming to reduce energy consumption and promote environmental sustainability. Manufacturers must ensure their products consume less energy while maintaining or improving performance compared to less efficient models to comply with these regulations.

  • CRI 82 or higher
  • Compliance score 297 or higher
  • Minimum L/W 45 (GSL) or 80 (SLED, SSDL)
  • Power factor greater than 0.7
  • Hour rated life greater than 10,000 hours (25,000 for MR16s)
  • ENERGY STAR® V2.0 omnidirectional light distribution for A-bulbs
  • ENERGY STAR V1.1 light distribution for decorative bulb shapes
  • Dimmable bulbs: Dimmable to 10%, reduce flicker, noise less than 24 dB at 100% and 20%


Ambient Operating Temperature Range 0~+50 °C (32~+122 °F)
Battery Type Li-ion
Brand DiodeDrive
Certifications/Compliance CEC Title 20 Compliant, UL Listed
Dimmable Yes
Dimming Control 0-10V
Emergency Operation Time ≥90 Minutes
Environmental Rating Suitable for Wet Locations, Waterproof
Input Connection Type Pigtail
Input Voltage 100-347 VAC
Max Input Current 200 mA
IP Rating IP65
Material Aluminum Housing
Output Power 40 Watts
Output Voltage 170 VDC
Product Weight 4.6 lb (2.1 kg)
Recharge Time 24 Hours
Surge Protection 3 kV (L-N)
Warranty 5 Year
Wire Gauge 18 AWG
Print Specifications
