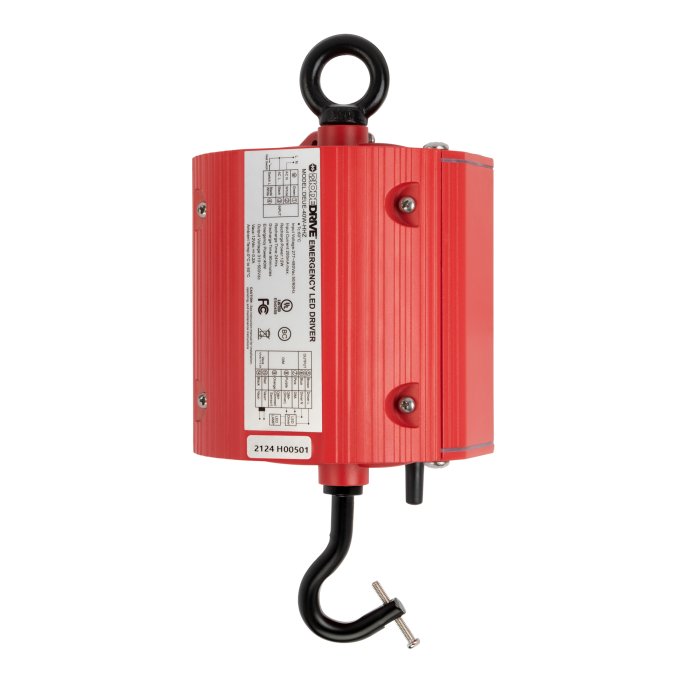

DiodeDrive Emergency LED Driver for UFO High Bay - 40W - 277-480 VAC Input - 310-500 VDC Output


Features
- 90-minute constant emergency power
- High input voltage range: 277-480 VAC
- Large integrated junction box
- For wiring to the fixture's high voltage AC input
- Self-test function
- UL924 Listed
- CEC Title 20 View more details
Loading recommendations...
Overview
NOTE: Ideal for use with high-voltage UFO high bay fixtures. This driver is not compatible with 100-277 VAC fixtures.
Product Details:
- Ideal for use with high voltage UFO high bay fixtures
- Simple wiring directly to the AC inputs
- IP65 waterproof
- 0-10V dimming connections for fixtures > 40W up to 300W
- Optional RF remote for required periodic testing
- Lithium-ion battery
- 5-year warranty
This product meets California Energy Commission (CEC) Title 20 requirements and is registered in their Modernized Appliance Efficiency Database System (MAEDbS).
CEC California Title 20 mandates that consumer products sold in the state meet specified energy efficiency standards, aiming to reduce energy consumption and promote environmental sustainability. Manufacturers must ensure their products consume less energy while maintaining or improving performance compared to less efficient models to comply with these regulations.
- CRI 82 or higher
- Compliance score 297 or higher
- Minimum L/W 45 (GSL) or 80 (SLED, SSDL)
- Power factor greater than 0.7
- Hour rated life greater than 10,000 hours (25,000 for MR16s)
- ENERGY STAR® V2.0 omnidirectional light distribution for A-bulbs
- ENERGY STAR V1.1 light distribution for decorative bulb shapes
- Dimmable bulbs: Dimmable to 10%, reduce flicker, noise less than 24 dB at 100% and 20%
Specifications
Ambient Operating Temperature Range | 0~+50 °C (32~+122 °F) |
---|---|
Battery Type | Li-ion |
Brand | DiodeDrive |
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact, energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else who may be involved confidence that the product is safe and will work well in their application. UL and ETL certifications relate to safety and installation and are the most common for power supplies. |
CEC Title 20 Compliant, UL Listed |
Dimmable | No |
Dimming Control
Dimming Control
TRIAC Dimming: This is the most commonly recognized dimming type, with TRIAC Dimmers found in most Home Centers and hardware stores. TRIAC (TRIode for Alternating Current) dimmers operate by modifying the voltage waveform, reducing the amount of power input to the device being controlled. Reducing the input power will result in a corresponding reduction in a power supply's output voltage/current or a decrease in the lumen output of a light fixture. TRIAC dimmers come in two variations: Forward Phase and Reverse Phase
0-10V Dimming: This type of dimming control is most commonly found in commercial applications. It works by varying a voltage from 0 to 10 VDC on dedicated dimming wires. The output of a power supply or light fixture is proportional to the voltage applied. Pulse-Width Modulation (PWM) Dimming: This dimming control adjusts output by rapidly turning the output on and off at a fixed frequency. The proportion of on-time to total time sets the dimming percentage. Potentiometer Dimming: Potentiometer dimming varies the output using a variable resistor, or potentiometer, to set the dimming level. |
0-10V |
Emergency Operation Time | 90+ Minutes |
Environmental Rating
Environmental Rating
![]() |
Suitable for Wet Locations, Waterproof |
Input Connection Type | Pigtail |
Input Voltage | 277-480 VAC |
Max Input Current | 200 mA |
IP Rating
IP Rating
![]() |
IP65 |
Material | Aluminum Housing |
Output Connection Type | Pigtail |
Output Power
Output Power
A power supply's power consumption is measured in watts and refers to the maximum amount of power it is capable of delivering. For best results, choose a power supply that offers a minimum of 20% wattage overhead for your application. Wattage overhead ensures that your project will function correctly, extends the life of the power supply, and offers greater design flexibility by allowing for project expansion. |
40 Watts |
Output Voltage | 310-500 VDC |
Product Weight | 4.6 lb (2.1 kg) |
Recharge Time | 24 Hours |
Surge Protection | 3 kV (L-N) |
Warranty | 5 Year |
Wire Gauge | 18 AWG (L/N/G), 22 AWG (dimming) |
