Diode Dynamics SS5 CrossLink Bumper Pod Light Kit for Jeep Wrangler JL and Gladiator JT
Part Number:
DD7278
Manufacturer Part Number:
$559.95
ea.
Was
In Stock
Similar Products Available Today
Features
- Bolt-on fitment on 2018-2023 Jeep JL Wrangler and 2020+ Jeep Gladiator
- Ultra-high intensity combination beam, with custom-engineered TIR optics
- Selectable backlight color with eight color options
- Field-tested, heavy-duty construction
- Control through factory aux switch bank using the included harness
- Assembled in the USA
- Lifetime Warranty
Ask About This Product
Get instant AI-powered answers
Try asking:

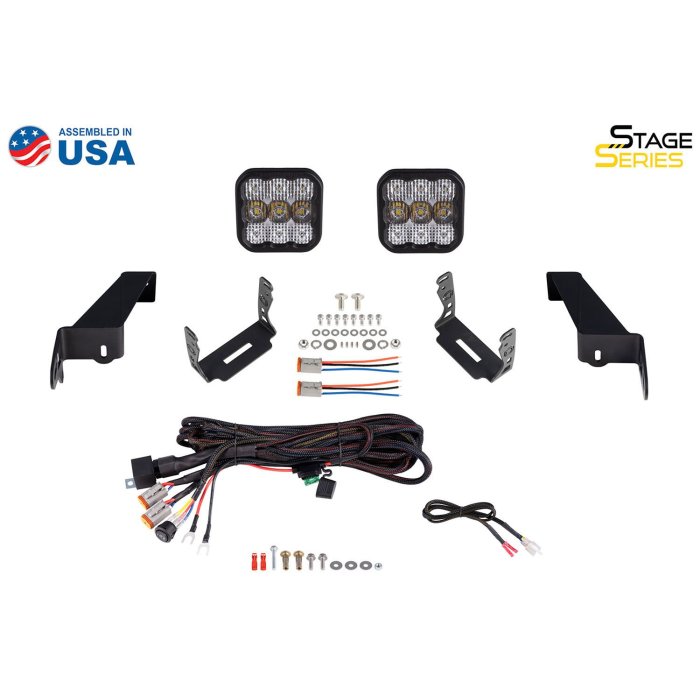

What's In The Box:
- 2- Application-specific heavy-duty steel brackets for installation on 2018-2023 Jeep Wrangler
- 2- Stage Series 5" LED Pods
- 1- heavy-duty dual-output 4-pin wiring harness
- Installation Guide
- Mounting hardware
Most Popular Compatible Products
Overview
The Bumper LED Pod Light Kit for the 2018-2023 Jeep JL Wrangler and the 2020-2023 Jeep Gladiator from Diode Dynamics allows you to mount two SS5 LED pods on the factory bumper. These application-specific brackets were CAD-designed to bolt into place using factory mounting points. These auxiliary lamps deliver 9,600 total lumens and have been designed for maximum functionality with patented technology and custom-engineered TIR optics, all in a durable package.
The Stage Series 5" LED Pods in the White kit feature a selectable backlight with eight different color options, perfect for an extra styling accent or more visibility when you're not using the main beam. Selecting your backlight color is easy - alternate the power on and off. There's no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find on other LED pods.
The kit includes an OEM Auxiliary Switch Wiring Harness, which lets you control your lights using the factory-installed aux switch bank. Two switches will be used - one for the main beam and one for the backlight. For those who don't have the aux switch bank, a Heavy Duty Wiring Harness is also included to mount a switch and connect directly to the battery.
Stage Series beam patterns were designed to shape the output for highly functional and efficient illumination. The combo pattern combines a focused 30° x 20° Driving beam in the middle with Flood optics on the top and bottom to create a full 70° x 30° degree pattern to provide extra light for every situation.
This kit uses high-intensity LED emitters and TIR optics for unmatched focus and overall output with a 6000K cool white color that matches most factory LED lighting. The Sport model uses nine high-intensity LEDs for 40W of total power. See the specifications for more information.
Stage Series LED lighting has been extensively tested for long-term operation from -40° to 185° F, along with vibration, moisture intrusion, and corrosion testing. These tests are completed to SAE standards, just like factory components. Racers and enthusiasts have also put them to the test on-road.
Assembled and engineered in the United States with the newest and brightest LED technology.
Documents
Jeep JL JT Grille Bumper Bracket Install Guide Fitment:
- Make: Jeep
- Model: JL Wrangler, Gladiator
- Years: JL Wrangler- 2018-2023, Gladiator- 2020-2023
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Specifications
| Ambient Operating Temperature | -40 to 85 °C (-40 to 185 °F) |
|---|---|
| BackLit Color | Mult-Color Selectable |
|
Beam Pattern
Beam Pattern
Spot Lights Spot lights give off a narrow and concentrated beam of light that allows for greater visibility at further distances. With light output stretching beyond that of standard headlights. Spot lights are best used to navigate dark back roads for everything from recreational vehicles to work trucks and search and rescue vehicles. Flood Lights Flood lights are best at illuminating a wider area at a shorter distance than typical headlights. These are great for use on vehicles performing tasks at night such as roadwork or harvesting, as well as use on curvy roads and side roads. Combo Beams Combo vehicle lights are a combination of a spot light and a flood light that are always on simultaneously. This allows for the light to cover both short and long distances at the same time for a variety of tasks. Selectable Multibeams Selectable multibeams contain both a spot light and a flood light. With this, you gain the ability to have either the spot light or the flood light, or both on at the same time. Selectable multi-beams are extremely versatile in that you get three beam patterns in a single light. However it does require additional wiring to operate both beams independently through either multiple rocker switches, or a momentary switch. Combo + Side Shooters Side shooters illuminate a full 180 degrees or more through the use of a combo beam vehicle light. Side shooters contain an extra row of vertically or horizontally stacked and angled LED lights. This row is what gives the side shooter the ability to expand beyond a normal flood light's field of view. Side shooters are best used while stationary or at very low speeds where the field of view is critical. |
Combo |
| Brand | Diode Dynamics |
| Color Temperature | 6000K |
|
Current Draw
Current Draw
The current draw of your lights is calculated using the amount of power your light needs (wattage) and system voltage using the following formula: Watts/Volts = amps or W/V = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED bulbs with the correct amperage ensures proper operation and prevents damage to your electrical system or the bulbs. See your vehicle owner's manual for amperage, wattage, and voltage information, or match the information on your existing bulbs. |
270 mA @ 12 VDC, 3.3 A @ 12 VDC |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Waterproof |
| Finish | Black |
| Input Connection Type | DT Connector, Spade Terminal |
| Input Voltage | 9-16 VDC |
|
IP Rating
IP Rating
 |
IP69K |
| LED Color | Cool 6000K |
| Lens Color | Clear |
| Lumens | 4800 Lumens |
| Polarity Sensitive | Yes |
| Product Materials | Aluminum Housing, Polycarbonate Lens, Stainless Steel Bracket |
| Series | Stage Series |
| Warranty | Lifetime |
| Wattage | 3.2 Watts, 40 Watts |
