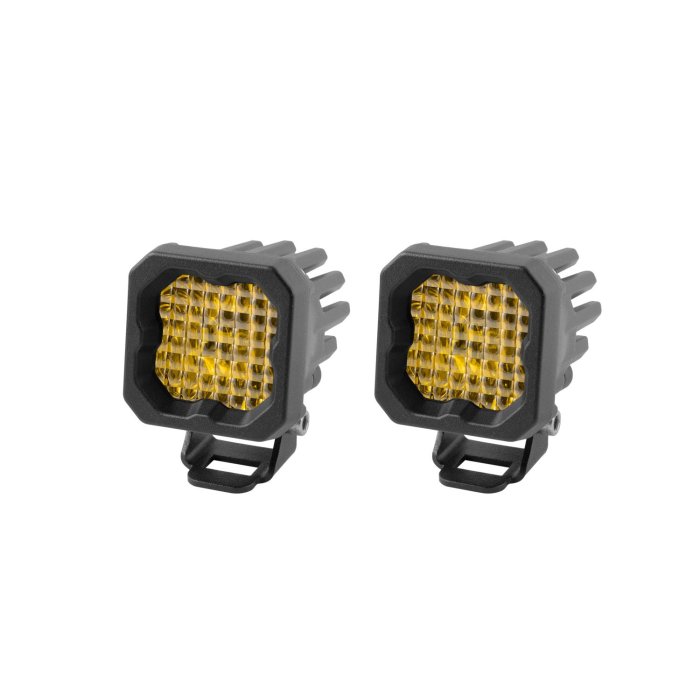

Diode Dynamics Stage Series SSC1 Sport Yellow LED Pod Lights - 1,305 Lumens - Wide Beam - Qty 2

Diode Dynamics Stage Series SSC1 Sport Yellow LED Pod Lights - 1,305 Lumens - Wide Beam - Qty 2

Part Number


  • Ultra-compact, single-LED form factor
  • High-intensity 10-watt LED chip
  • Backlighting in a brilliant amber color
  • Pin-fin heatsink design, for superior thermal dissipation
  • Integrated Deutsch-style connector
  • Designed, stress-tested and assembled in USA
$159.95 ea.
In Stock
Free Shipping
On orders $30 and up within the contiguous U.S.
Read More

Item does not qualify

What's In The Box:
  • 2- Stage Series C1 LED Pods
  • 2- Deutsch-style wire pigtails
  • 2- Mounting brackets and hardware
Frequently Bought Together


Introducing the Stage Series C1 LED Pod! Featuring custom-engineered TIR optics combined with a single high-power LED chip, these pods have been designed for maximum performance and light output- each set producing 2,610 Lumens (1,305 lumens per light)- in our most compact, versatile package yet. The SSC1 can be mounted virtually anywhere on your car, truck, motorcycle, or UTV, including spots where larger LED pods won't fit. Traditional optics like reflectors or simple lenses lose light internally and glare, so not all of the light shines on the target. Instead, the custom-engineered TIR optic in the Stage Series C1 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

The Wide pattern is perfect for general illumination, delivering a 50-degree horizontal beam spread with a tighter 20-degree vertical spread. The Wide pattern can be used anywhere you need to shine some extra light!

Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power.

Note: DD4092 wiring harness is required for amber backlit function

SAE J575
SAE J575
8 Years
8 Years
Assembled In USA
Assembled In USA
Super Bright LEDs, Inc. offers a 8-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house.
SAE J575 testing provides standardized laboratory tests, test methods and equipment, and requirements for lighting devices on vehicles less than 2032 mm in width.The SAE J575 test standard includes a suite of tests that evaluate luminous intensities throughout the light distribution pattern. They also assess resistance to damage from vibration, impact, abrasion, warpage, heat, humidity, moisture and dust intrusion (IP rating), and corrosion.


Ambient Operating Temperature -40~+85 °C (-40~+185 °F)
Backlight Color Amber
Beam Angle 50° x 20°
Beam Pattern Wide
Brand Diode Dynamics
Certifications/Compliance SAE J575
Current Draw 1 A @ 12.8 VDC, 24 mA @ 12.8 VDC
Environmental Rating Waterproof
Finish Black
Input Connection Type DT Connector, Pigtail
Input Voltage 9-16 VDC
Intensity 1305 Lumens
IP Rating IP67
LED Color Yellow
Length 2in (0.16ft)
Lens Color Yellow
Polarity Sensitive Yes
Power Consumption 0.3 Watts, 12.8 Watts
Product Materials Steel Brackets, Aluminum Housing, Polycarbonate Lens
Series Stage
Warranty 8 Year
