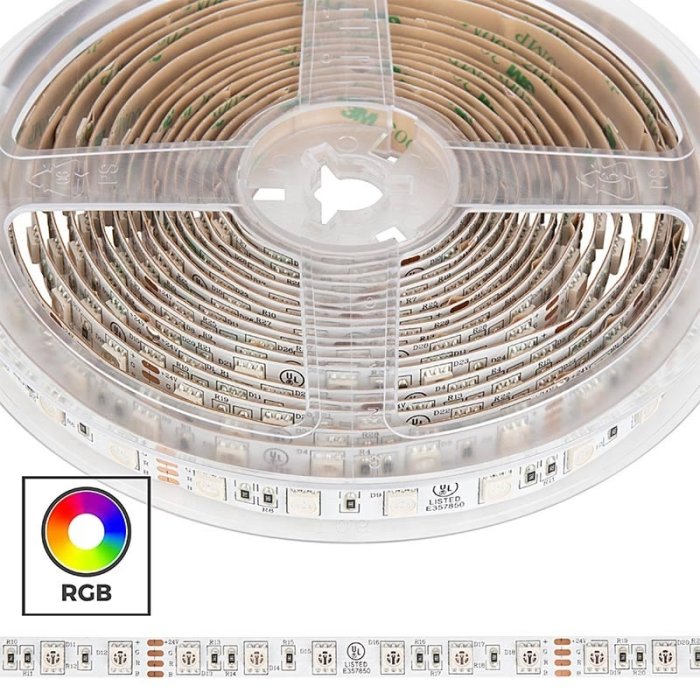

Name: Custom Length RGB LED Strip Light - Radiant Series Tape Light - 24V - IP20 - RGB - Custom Length
Brand: Super Bright LEDs
SKU: STN-CRGB-A6A-10B1M-24V
Price: 17.99 USD
Availability: InStock
Rating: 4 (4 reviews)

Overview

Radiant Series RGB LED strip light operates on 24 VDC and can be used in longer runs than 12V strips. The high-density LED light strip can be used with any of our universal RGB controllers for color-changing options. Easily cut it into separate 6-LED segments and install it with its peel-and-stick 3M™ adhesive backing. Minimum length is 3.28'. Run the strip back to power every 32' to avoid excessive voltage drop. This LED strip light is covered by a lifetime warranty. It's great for cabinets, under-cabinet lighting, toe-kicks, coves, bookshelves, showcase lighting, or other indoor applications where space is limited.

Custom-length strip sections are cut from a larger reel and will not have wire leads. Soldering or the use of solderless connectors (sold separately) is required. See accessories for compatible connectors.

Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.

In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.

Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Sign Lighting
LED Backlights
Task Lighting
Accent Lighting
Off Grid Lighting
Retail
Coves
Under-Cabinets
Display Cases
Trade Shows

Specifications

Ambient Operating Temperature	-20~+45 °C (-4~+113 °F)
Certifications/Compliance	CE, UL Listed
Color Temperature Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. Natural and cool white are considered ideal for task lighting.	RGB
Current Draw Current Draw is used to size fuses and wire for an electrical circuit. Current draw is the amount of energy consumed by an LED or LEDs in an electrical circuit at a specific voltage, measured in amps (A) or milliamps (mA).	0.49A (490mA)
Current Draw per Foot Current Draw Per Foot is used to size power supplies, normally converted to watts per foot. This is equated using total wattage divided by number of linear feet. Current draw per foot is the amount of current consumed by an LED or LEDs in an electrical circuit per linear foot at a specific voltage, measured in milliamps (mA) or watts (W).	150mA
Dimmable	Yes
Efficacy	26 lm/W
Environmental Rating Learn more about environmental rating	Non-weatherproof, Suitable for Dry Locations
Finish	White
IP Rating	IP20
LED Beam Angle Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.	120°
LED Density	18 LEDs/ft
LED Type	5050 SMD
LEDs per Segment	6
Length	Custom Length
Max Run (Class 2) The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.	Up to 24.6ft (7.5m)
Minimum Cut Length	100mm (3.9in)
Operating Voltage	24 VDC
Power Consumption	11.8 Watts
Rated Life (L70)	50000 Hours
Series	DynamicColor
Strip Width	10mm (0.39in)
Wattage per Foot	3.6 W/ft (11.8 W/m)
Wire Length	508mm (20in)

Print Specifications

Sample breakdown of part numbers and their meanings for most of our LED strip/tape light lines.

Accessories & Power Supplies

All Accessories

24V Power Supplies

Installation Supplies

Connectors

Controllers

Channels

Accessories Links

Accessory Category

Accessory Type:

$0.25 ea.

10mm Silicone End Cap - 10mm End Cap - No Holes Part Number: EC10
In stock

10mm silicone end cap for use with ST10 silicone tubing and WFLS-GL sealant. There are no hole inserts for ending runs.
$1.49 ea.

ST10 10mm Silicone Tubing - 10mm Silicone Tubing - 0.5m Part Number: ST10
In stock

10mm silicone tubing for use with non-weatherproof strips that are less than 10mm in diameter to create a waterproof product. Use tubing in conjunction with silicone end caps and glue/sealant. Price per 1/2 meter (19.7in), multiple quantities will come as one continuous tube.
$1.99 ea.

10mm LED Strip Light Mounting Clips With Adhesive Backing - 10 Pack Part Number: SBL-NKL-10
In stock

Use to mount 10mm LED strip lights. The pack includes 10 clips with an adhesive backing.
$0.25 ea.

10mm Silicone End Cap - 4 Holes - 10mm End Cap - 4 Holes Part Number: EC10-4
In stock

10mm silicone end cap for use with ST10 silicone tubing and WFLS-GL sealant. Four holes for easy wiring installation.
$1.95 per Foot

Flat Power Cable - 4 Conductor - 10mm - NFLS10-FPW-4 (per foot) Part Number: NFLS10-FPW-4
In stock

This flat power cable is designed for creating discrete light installations with RGB LED strip lights. Easily hide it under paint, wallpaper, spackle, trim, and molding. The 4-conductor wire can be used for powering 10-mm LED strip lights, connecting strip segments, and more. Easily secure this flat power cable to any surface with its adhesive backing, and forget about mounting wire clips. The power wire can carry 3.6 amps of current per channel and has a max run of 10'. This power wire has a solder point every 19".
