MaxLite 70W Value Canopy LED - Selectable CCT - 3000K / 4000K / 5000K - 250W HID Equivalent - Up to 10,330 Lumens
Part Number:
CP70UC-CSB
Manufacturer Part Number:
$109.99
ea.
Was
In Stock
Features
- Selectable CCT: 3000K, 4000K, 5000K
- Junction box mounting
- Integrated surge protection
- DLC 5.1 Premium
Overview

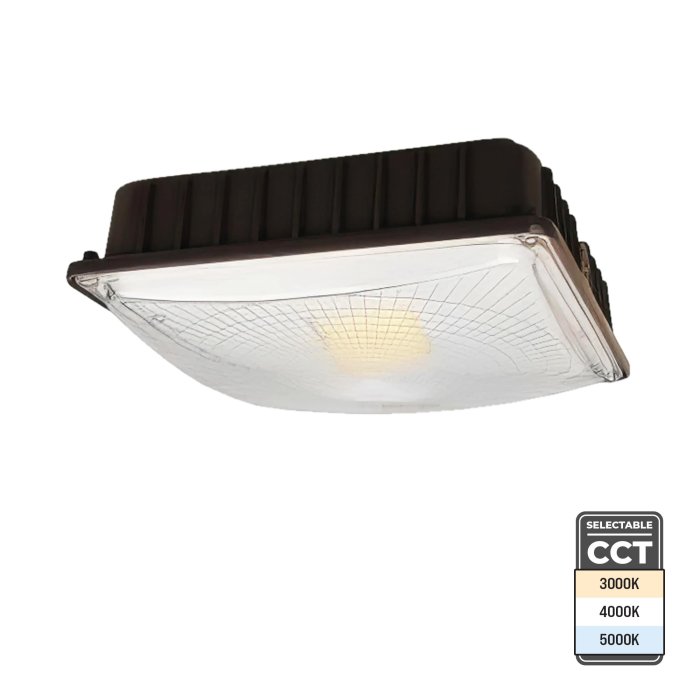

The MaxLite 70W Value Canopy Light fixture is the perfect retrofit solution for 150-250W HID garage and canopy lighting. The 70 Watt fixture allows users to select from color temperatures of 3000K, 4000K, or 5000K to match any canopy lighting need. The UV-stabilized, polycarbonate lens is shatter-resistant and provides a 100° beam angle for uniform light distribution. The durable die-cast aluminum housing is a high-quality solution for lighting parking garages, gas stations, or covered walkways.
Product Details:
- Die-cast aluminum housing
- Bronze corrosion-resistant powder coating
- Shatter-resistant polycarbonate lens
- IP65 Waterproof
- Metal mounting plate with hinge
- 120-277 VAC
- 5-year warranty
Documents
CP Series Canopy Lights Specification Sheet
CP70UC-CS 3000K IES File Applications:
- Canopy Lights
- Covered Walkway
- Garages
- Gas Stations
- Parking Garages
- Warehouses
- Workshops
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Need help?
Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Ambient Operating Temperature | -20~+50 °C (-4~+122 °F) |
|---|---|
| Beam Angle | 100° |
| Brand | MaxLite |
|
CCT
CCT
|
3000K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC Premium |
|
CRI
CRI
|
70+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
645 mA @ 120 VAC, 275 mA @ 277 VAC |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| DLC Product ID | S-DSPZG4 |
| Efficacy | 148 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
| Equivalency | 250 Watt Metal Halide |
| Finish | Bronze |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 4 kV, 10 kA |
|
IP Rating
IP Rating
|
IP65 |
| LED Color | Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lens Color | Prismatic |
| Lens Type | Polycarbonate |
| Lumens | 10330 Lumens |
| Microwave Motion Sensor | Optional |
| Mount Type | Surface Mount |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Product Weight | 5.5 lb (2.5 kg) |
| UL File Number | E361011 |
| Warranty | 5 Year |
| Wattage | 70 Watts |
| Wire Gauge | 18 AWG (L/N/G), 22 AWG (dimming) |
