100W Explosion Proof LED Flood Light - 5000K - 13,000 Lumens - Class 1 Div 2 - 400W MH Equivalent
Part Number:
CES-100W-120V-5000K
Manufacturer Part Number:
$519.99
ea.
Was
In Stock
Features
- Rated for Class I Div. 2 Group A, B, C, D
- Uniform light distribution for industrial spaces
- Equivalency of 400W metal-halide fixtures
Related Products
Overview

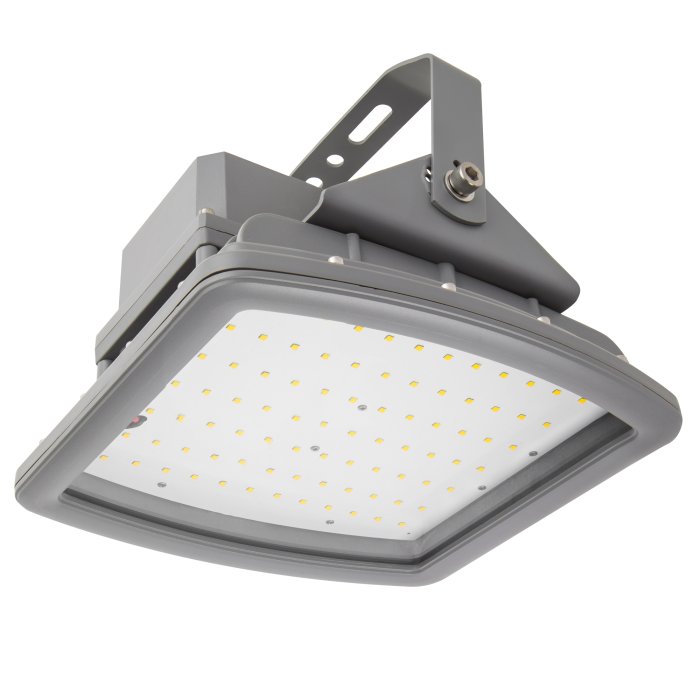

The 100W LED Explosion Proof Flood Light provides 13,000 lumens of uniform lighting in work environments where hazardous gases or fumes are present. This fixture is sealed to prevent sparks from internal components while maintaining low maintenance and energy savings associated with LEDs. At just 100W, this LED flood light is a safer and more energy-efficient alternative to 400W metal halide fixtures. This flood light has a die-cast aluminum housing and tempered glass lens. It is rated for installation in Class 1, Division 2 hazardous locations such as refineries, and wastewater and sewage plants. Install with the included yoke mounting bracket.
Product Details:
- Die-cast aluminum housing; tempered glass lens
- IP68 Waterproof
- 5000K Cool White
- Included yoke bracket
- 120-277 VAC
- 5-year warranty
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Beam Angle | 120° |
| Brand | LEDSION |
|
CCT
CCT
|
5000K |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC Premium |
|
CRI
CRI
|
70+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
830 mA @ 120 VAC, 360 mA @ 277 VAC |
| Dimmable | No |
| Efficacy | 130 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
| Equivalency | 400 Watt Metal Halide |
| Finish | Gray |
|
Hazardous Location Rating
Hazardous Location Rating
|
Class I, Division 2, Groups A, B, C, D |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
|
IP68 |
| LED Color | Cool White |
| Rated Life (L70) | 50000 Hours |
| Lens Color | Clear |
| Lens Type | Tempered Glass |
| Lumens | 13000 Lumens |
| Mount Type | Yoke Bracket |
| Operating Voltage | 100-277 VAC |
| Product Materials | Aluminum Housing, Glass Lens |
| Product Weight | 16.4 lb (7.4 kg) |
| Warranty | 5 Year |
| Wattage | 100 Watts |
