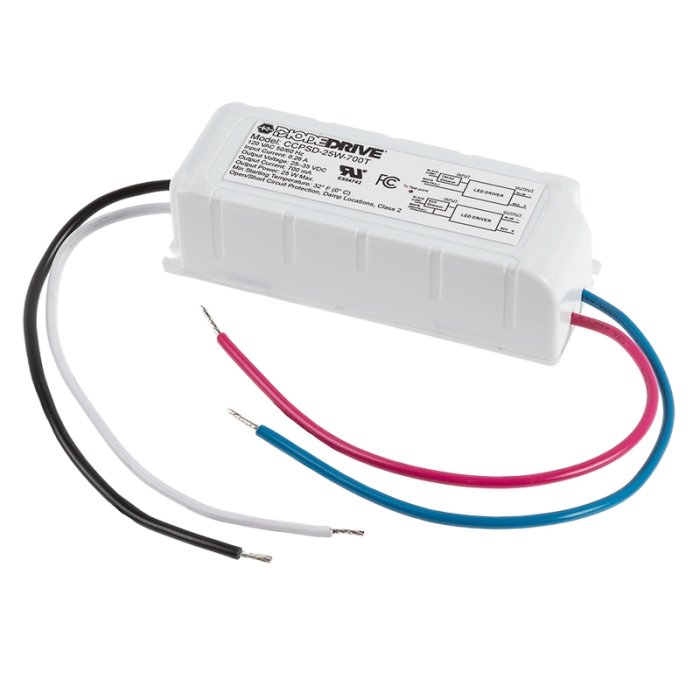

CCPSD series Constant Current LED Driver - DiodeDrive® - TRIAC Dimmable - 25W

CCPSD series Constant Current LED Driver - DiodeDrive® - TRIAC Dimmable - 25W - 700mA - 25-35 VDC - CCPSD-25W-700T

Part Number
CCPSD-25W-700T

Features

  • Class 2 Constant Current
  • TRIAC dimmable
  • Fully isolated plastic body
  • Fanless design
  • 25-watts | 700 mA output
  • 3 year warranty
View more details
In Stock
$16.99 ea.

Black Friday Sale: 15% Off Your Entire Purchase! When you use code BFCM22 at checkout. Details⇒

Frequently Bought Together

Overview

CCPSD series Constant Current Driver from DiodeDrive® is a reliable power solution for LED lighting systems. The TRIAC dimmable device is compatible with leading edge and trailing edge dimmers. High efficiency of 85% and fanless design allow this device to operate with in a wide temperature range. Compact, fully isolated plastic case is ideal for indoor applications. Can be used to replace an existing driver. Please check voltage and wattage of the previous driver to make sure this is a compatible replacement.
Product Details:
  • 120 VAC input
  • 18 AWG wires
  • TRIAC dimmable - works with leading edge and trailing edge (ELV) dimmers
  • Built in PFC function
  • Operating Temperature 32°–122° F (0°–50° C
  • 85% efficiency
  • 1kV surge protection
  • Built-in short-circuit, overload, and over-temperature protection
  • UL Recognized, FCC approved
  • 3 year warranty
UL Recognized
UL Recognized
FCC
FCC
3 Years
3 Years
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Recognized label ensures that a product component, such as a power supply or LED light strip, has been tested and verified as safe to use in a UL-Listed product. UL-Listed product samples are tested by UL and meet their Standards for Safety requirements.
Products with a Federal Communications Commission (FCC) label meet all requirements and rules set forth by the FCC and won't cause interference with other electronic devices. According to FCC's website, "The Federal Communications Commission regulates interstate and international communications by radio, television, wire, satellite and cable in all 50 states, the District of Columbia and U.S. territories." Products that generate radio frequency (RF) energy, such as RF remote controls and certain LED light bulbs, are tested to ensure that they are within the FCC's guidelines and limits and do not cause harmful interference.
Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a product of equal value may be substituted or a gift card for the value of the product. Read More

Specifications

Ambient Operating Temperature Range 0~+50 °C (32~+122 °F)
Certifications/Compliance Class 2, FCC, UL Recognized
Dimmable Yes
Dimming Control TRIAC
Environmental Rating Non-weatherproof, Suitable for Damp Locations
Input Voltage Pigtail
IP Rating IP30
Output Current 700 mA
Output Voltage 25–35 VDC
Print Specifications
