Discontinued
We have discontinued this product permanently. Please find suggested replacement products from below section.

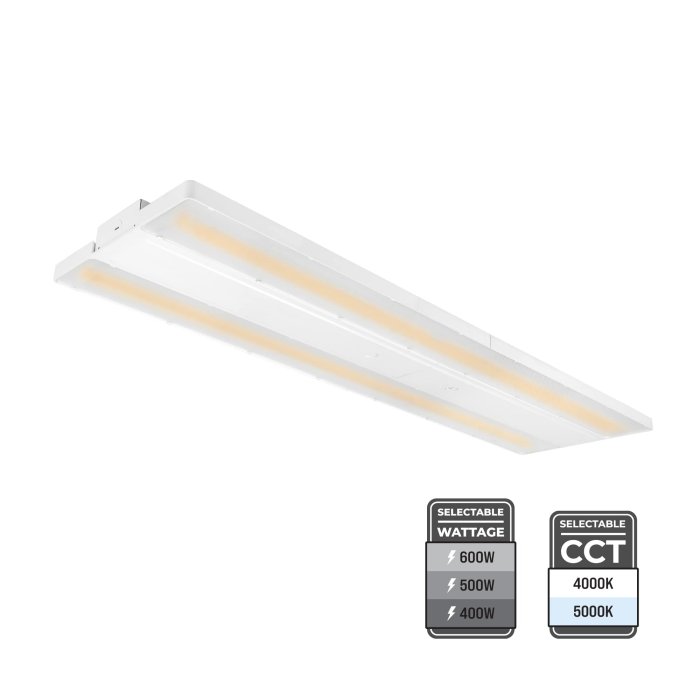

4’ LED Linear High Bay - Selectable CCT and Wattage - 1,500W MH Equivalent - Up To 84,000 Lumens - 4000K / 5000K - 400W / 500W / 600W
Part Number:
LHBDSA-SW2B600-WHMBL
Manufacturer Part Number:
Discontinued
Features
- High 140 lm/W efficacy
- Selectable Wattage: 400W, 500W, or 600W
- Selectable CCT: 4000K or 5000K
- Increase energy savings with optional motion sensor
- Suspension mounting kit included
- DLC 5.1 Premium
Related Products
Overview
The 4-foot LED linear high bay offers enhanced versatility with selectable CCT and wattage while delivering a high 140-lumen per watt efficacy. Select from three different wattage/lumen output levels and 4000K or 5000K color temperatures to get the ideal light to suit your application. Use the CCT and wattage selectable linear high bay to provide up to 84,000 lumens in a wide 90-degree beam. Use this light to replace up to a 1,500-watt metal-halide fixture. For more energy savings, pair with an optional motion sensor. This linear high bay has a steel and die-cast aluminum construction for lightweight durability, excellent heat dissipation, and maximum life. Use the included straight link chain and v-hooks for suspension mount installation. See accessories for pendant mounting options.
Product Details:
- Die-cast aluminum and steel housing, polycarbonate lens
- Suitable for damp locations
- 0-10V dimming
- Mount with included hanging kit or optional pendant bracket
- 120-277 VAC
- Certified by UL
- DLC 5.1 Premium
- 5-year warranty
Documents
LHBDSA Specification Sheet
LHBDSA-SW2B600-WHMBL IES File Applications:
- Big Box Retailers
- Convention Centers
- Distribution Centers
- Factories
- Gymnasiums
- High Bays
- Manufacturing Plants
- Packaging Facilities
- Shop Lights
- Warehouses
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
Specifications
| Ambient Operating Temperature | -30 to 50 °C (-22 to 122 °F) |
|---|---|
| Beam Angle | 90° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC Premium |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
3.3/4.2/5 A @ 120 VAC, 1.4/1.8/2.2 A @ 277 VAC |
| Dimmable | Yes |
| Efficacy | 140 lm/W |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 1500 Watt Metal Halide |
| Finish | White |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 6 kV |
|
IP Rating
IP Rating
|
IP20 |
| LED Color | Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Length | 48 in. (4 ft) |
| Lumens | 56000 Lumens, 70000 Lumens, 84000 Lumens |
| Microwave Motion Sensor | Optional |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Polycarbonate Lens, Steel Housing |
| Product Weight | 16.5 lb (7.5 kg) |
| UL File Number | E366643 |
| Warranty | 5 Year |
| Wattage | 400 Watts, 500 Watts, 600 Watts |
| Wire Gauge | 18 AWG |
