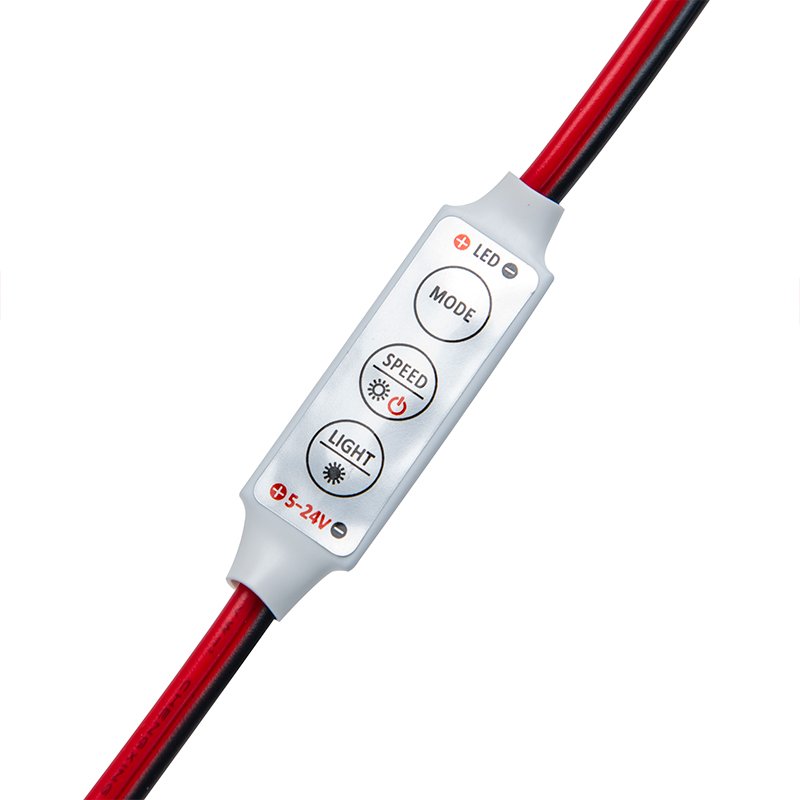

MLD-5A 12 Volt DC Single Color LED Mini Dimmer with Dynamic Modes

Single Color LED Controller with Dynamic Modes - Mini LED Dimmer

brand logo
Part Number
In Stock
$3.49 ea.
Free Shipping
On orders $300 and up within the contiguous U.S.
Read More

Item does not qualify


Universal single color mini LED dimmer can dim any 5~24V DC LED product from 10%-100% using Pulse Width Modulation (PWM) circuit push button control from stepped intensity adjustment. 5 dynamic flashing modes with adjustable speeds. Maximum load is 5 Amps - holding Speed/Bright button turns LEDs ON/OFF. Retains last setting when power is cycled. Attached 4" power input and controller output wire leads. Suitable for vehicles
2 Years
2 Years
Super Bright LEDs, Inc. offers a 2-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More

Similar Single Color LED In-Line Dimmers

  Amps Channels Amps Per Channel Price
5 Amps
1 Channel
5 Amps/CH
$3.99 ea.
5 Amps
1 Channel
5 Amps/CH
$5.59 ea. SAVE 20%
Was $6.99 ea.


Amps 5 Amps
Amps Per Channel 5 Amps/CH
Channels 1 Channel
Control Type In-line Wired
Input Connection Type Pigtail
Voltage 5-24 VDC
Warranty 2 Year
Print Specifications
Supply Voltage DC 5~24V
Max Load Current 5 Amps
Output 1 Channel
Static Power Consumption
Output Power 25~120 Watts
Function Dim LED product from 10~100% using PWM with CPS series Power Supplies
Product Size (L)40 x (W)13 x (H)5 mm
Net Weight 35g
Operating Temperature -30~70°C
Dynamic Modes
  • Fast Strobe
  • Slow Blink
  • Fast Blink
  • Slow & Fast Blinks
  • Short Blink
  • Random Fade
  • Slow Fade
  • Quick Fade
