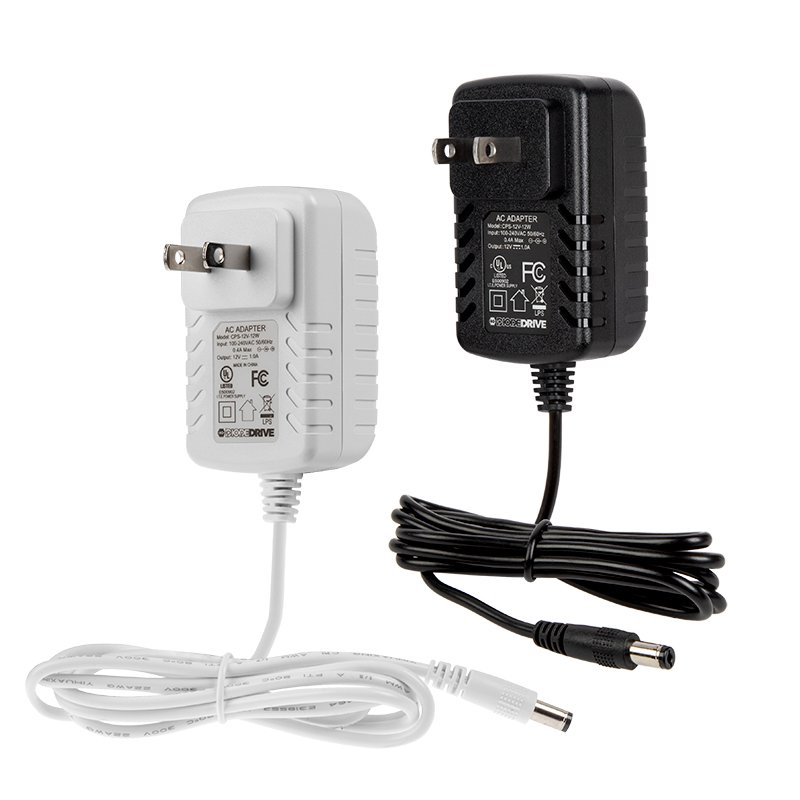

Name: DiodeDrive® Wall-Mounted AC Adapter - 12 VDC Power Supply - White - 36W
Brand: Super Bright LEDs
SKU: CPS-12V-36W(White)
Price: 12.99 USD
Availability: InStock
Rating: 4.6 (74 reviews)

Overview

Description

Power Adaptor from DiodeDrive provides power for 12 VDC systems. The Class II device has an enclosed plastic case and protection against electoral shock. 2-Prong 120 VAC input. 5.5-mm barrel connector.

Product Details:

Class II
UL listed
2-Pin plug for 120 VAC input
5.5mm Barrel for 12 VDC output
4' wire length
3-Year warranty

Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.

Products with a Federal Communications Commission (FCC) label meet all requirements and rules set forth by the FCC and won't cause interference with other electronic devices. According to FCC's website, "The Federal Communications Commission regulates interstate and international communications by radio, television, wire, satellite and cable in all 50 states, the District of Columbia and U.S. territories." Products that generate radio frequency (RF) energy, such as RF remote controls and certain LED light bulbs, are tested to ensure that they are within the FCC's guidelines and limits and do not cause harmful interference.

Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Specifications

Ambient Operating Temperature Range	0~+40 °C (32~+104 °F)
Brand	DiodeDrive
Dimmable	No
Environmental Rating	Non-weatherproof, Suitable for Dry Locations
Input Connection Type	1-15P Plug
Input Frequency Range	50 ~ 60 Hz
Input Voltage	120 VAC
IP Rating .	IP20
Output Connection Type	5.5 mm x 2.1 mm DC Barrel
Output Voltage	12 VDC
Warranty	3 Year

Print Specifications

Part NO	Certifications/Compliance	Finish	Output Current	Output Power
CPS-12V-12W	Class II, FCC, UL Listed	Black	1.0A (1000mA)	12 Watts
CPS-12V-12W(White)	Class II, FCC, UL Listed	White	1.0A (1000mA)	12 Watts
CPS-12V-18W	Class II, FCC, UL Listed	Black	1500mA	18 Watts
CPS-12V-18W(White)	Class II, FCC, UL Listed	White	1500mA	18 Watts
CPS-12V-24W	Class II, FCC, UL Listed	Black	2.0A (2000mA)	24 Watts
CPS-12V-24W(White)	Class II, FCC, UL Listed	White	2.0A (2000mA)	24 Watts
CPS-12V-36W	Class II, FCC, UL Listed	Black	3000mA	36 Watts
CPS-12V-36W(White)	Class II, FCC, UL Listed	White	3000mA	36 Watts
CPS-12V-48W	Class II, FCC, UL Listed	Black	4000mA	48 Watts
CPS-12V-48W(White)	Class II, FCC, UL Listed	White	4000mA	48 Watts
