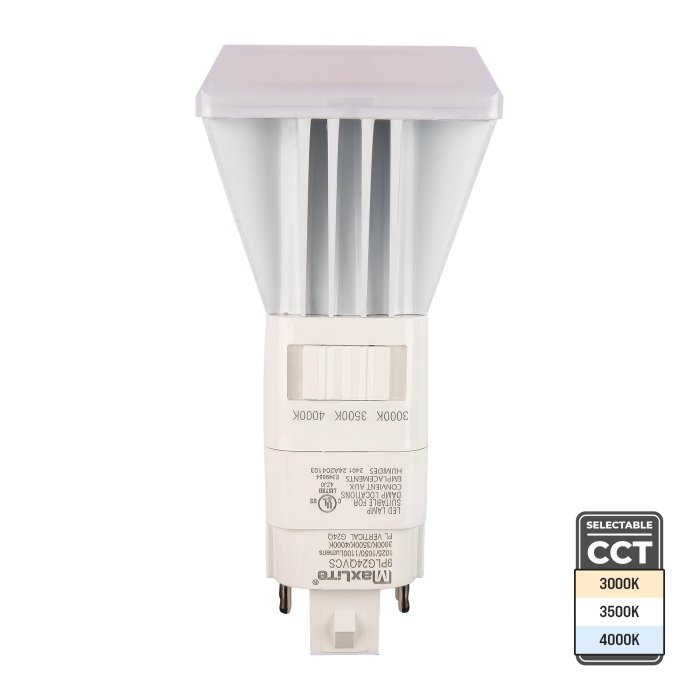

MaxLite DirectFit Vertical PL Lamp - 9W - G24q Base - Selectable CCT - Type A Ballast Compatible - 42W PL Fluorescent Equivalent - Up to 1,100 Lumens - 3000K, 3500K, 4000K
Part Number:
9PLG24QVCS
Manufacturer Part Number:
$16.99
ea. (per Bulb)
Was
In Stock
Features
- Selectable CCT provides customizable lighting options
- Type A ballast-compatible for easy integration with existing setups
- 140° beam angle for wide, even light distribution
- Equivalent to a 42W PL fluorescent bulb
- Designed and constructed for vertical installs
Overview
MaxLite LED DirectFit Vertical PL Lamps are the plug-and-play replacement for CFL downlights with a 4-pin G24q base. These energy-saving LED lamps are quick, easy, and safe to install into existing CFL fixtures without extra effort or rewiring. With vertical installation, the lamps offer three discrete correlated color temperatures (CCTs) in a single product.
Product Details:
- Aluminum Housing, Polycarbonate Lens
- Suitable for damp locations
- 140° beam
- 120-277 VAC
- DLC 5.1 Standard
- 5-year warranty
Documents
9PLG24QVCS Specification Sheet
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
The DesignLights Consortium® (DLC®) partners with energy-efficiency groups and utility companies to establish a set of standards for commercial LED light fixtures. The product is tested and must meet quality, energy-efficiency, and performance requirements to be added to the DLC's Qualified Products List. For more information, click here. To view all of our DLC® listed products, click here
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | -20~+40 °C (-4~+104 °F) |
|---|---|
| Ballast Compatibility | Type A (Ballast Compatible) |
| Base Type | G24q |
|
Beam Angle
Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
140° |
| Brand | MaxLite |
| Bulb Type | PL |
|
CRI
CRI
|
80+ |
| Current Draw | 80 mA @ 120 VAC, 35 mA @ 277 VAC |
| Dimmable | No |
| Efficacy | 100 lm/W |
| Enclosed Fixture Rated | Yes |
| Environmental Rating | Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 42 W PL Fluorescent Bulb |
| Finish | White |
| LED Lifetime | 50000 Hours |
| LED Color | Selectable CCT |
| Lens Color | Frosted |
| Lumens | 1025 Lumens, 1050 Lumens, 1100 Lumens |
| Operating Voltage | 120-277 VAC |
| Product Material | Aluminum Housing, Polycarbonate Lens |
| Reference Number | G24q |
| Standards And Certifications | DLC, UL Listed |
| Warranty | 5 Year |
| Wattage | 9 Watts |
