85W LED Linear High Bay - 11,475 Lumens - 250W MH Equivalent - 4000K / 5000K

85W LED Linear High Bay - 11,475 Lumens - 250W MH Equivalent - 4000K / 5000K

brand logo
Part Number
LHBDP3-x85

Features

  • Energy-efficient and low maintenance
  • High efficacy of 135 lm/W
  • Suspension mounting kit included
  • DLC 5.1 Premium
View more details
In Stock
Only %1 left

$79.99 ea.
Free Shipping
On orders $300 and up within the contiguous U.S.
Read More

Item does not qualify

Overview

Description

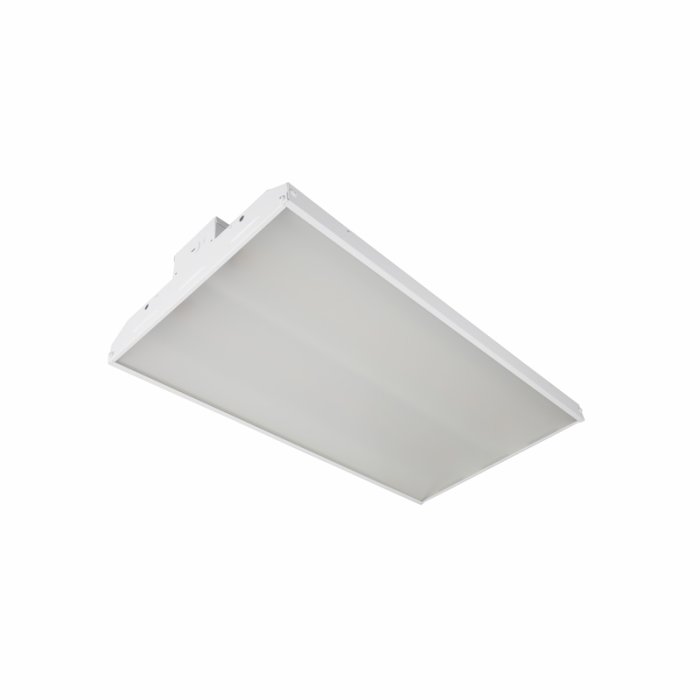

The 2-foot LED linear high bay is an energy-efficient and low maintenance lighting solution for a wide range of commercial applications. The high bay delivers 11,475 lumens with a high 135lm/W output. The polycarbonate lens diffuses light, creating an even 110° beam angle. Install using the included suspension mounting kit or using the 1/2 “ knockouts. Ideal for commercial applications such as warehouses, auditoriums, and packaging facilities.
Product Details:
  • White steel housing and polycarbonate lens
  • IP20 rating for damp or dry locations only
  • Rated Lifetime: 80,000 hours
  • 0-10V Dimming
  • Link fixtures using the 1/2“ trade size knockouts
  • Certified by UL
  • DLC 5.1 Premium
  • 5-year warranty

Applications

  • Auditoriums
  • Cafeterias
  • Commercial Buildings
  • Distribution Centers
  • Grocery Stores
  • Gymnasiums
  • Manufacturing Plants
  • Retail Applications
  • Warehouses
DLC Premium
DLC Premium
Certified by UL
Certified by UL
5 Years
5 Years
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
luxiflux tool image

Incorporate this product in your next project by using our Lighting Layout Tool.

Try it now
Use as a guide only—values are based on our own in-house testing. Contact us for additional information or to discuss your lighting needs.

Specifications

Beam Angle 110°
Brand Super Bright LEDs
Comparable Wattage 250 Watt Metal-Halide
CRI 80+
Current Draw 310 mA @ 277 VAC, 710 mA @ 120 VAC
Dimmable Yes
Dimming Type 0-10V
Efficacy 135 lm/W
Finish White
Input Connection Type Pigtail
IP Rating IP20
LED Lifetime 80000 Hours
Length 24in (2ft)
Lumen 11475 Lumens
Material Polycarbonate Lens, Steel Housing
Microwave Motion Sensor Optional
Operating Temperature -20~+50 °C (-4~+122 °F)
Power Consumption 85 Watts
Power Factor ≥0.9
Product Weight 9.5 lb (4.3 kg)
Standards And Certifications Certified by UL, DLC Premium
UL File Number E366643
Voltage 120-277 VAC
Warranty 5 Year
Wire Gauge 18 AWG
Print Specifications
Swipe left to see additional specifications
Part NO CCT Value LED Color
LHBDP3-40K85 4000K Natural 4000K
LHBDP3-50K85 5000K Cool 5000K
