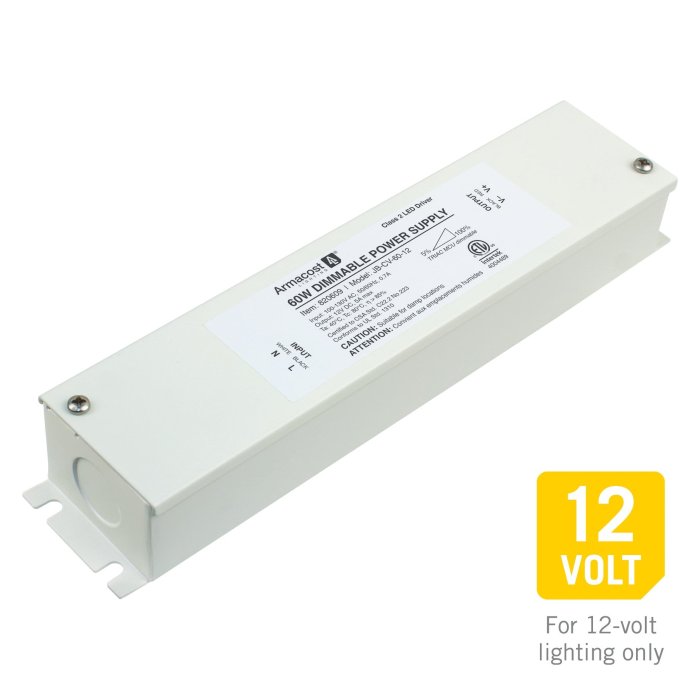

Armacost Lighting Dimmable LED Driver with Enclosure 12 VDC - 60W
| Quantity | |
|---|---|
Features
- Class 2 LED power supply features overload protection, automatic shut-off
- TRIAC Dimmable
- Uses desirable soft start-on and fade-off technology
- ETL Listed
Overview
Product Details:
- Potted power supply in an aluminum enclosure
- Connect up to 100% of the rated 60-watt maximum load; derating performance is not required
- 12V high power factor LED power supply for smooth, full range, flicker-free dimming
- Suitable for damp locations
- 100-130 VAC
- ETL Listed
- 3-year warranty
60W Dimmable Power Supply Manual
Class 2
Class 2 power supplies must meet the National Electric Code (NEC) and Underwriters Laboratories (UL 1310) standards for wiring requirements and power limitations of AC/DC power supplies to minimize shock or fire risks. All Class 2 power supplies must meet the NEC overcurrent protection and wiring sizing regulations. They must be constructed with ‘In-Wall’ rated wiring for permanent installation inside walls or floors, where they may be surrounded by insulation. These wiring requirements help prevent cracking or melting of the wire, which could cause a fire hazard. These power supplies must have a maximum power capacity of 100 VA and cannot exceed a 30 VAC or 60 VDC output, minimizing the risk of electric shock or overheating from excessive currents.
Specifications
| Ambient Operating Temperature Range | -20~+40 °C (-4~+104 °F) |
|---|---|
| Brand | Armacost |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact, energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else who may be involved confidence that the product is safe and will work well in their application. UL and ETL certifications relate to safety and installation and are the most common for power supplies. |
Class 2, ETL Listed, NEMA 1 |
| Dimmable | Yes |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Input Connection Type | Pigtail |
| Input Voltage | 120 VAC |
| Output Connection Type | Pigtail |
| Output Current | 5000 mA |
|
Output Power
Output Power
A power supply's power consumption is measured in watts and refers to the maximum amount of power it is capable of delivering. For best results, choose a power supply that offers a minimum of 20% wattage overhead for your application. Wattage overhead ensures that your project will function correctly, extends the life of the power supply, and offers greater design flexibility by allowing for project expansion. |
60 Watts |
| Output Voltage | 12 VDC |
| Warranty | 3 Year |
