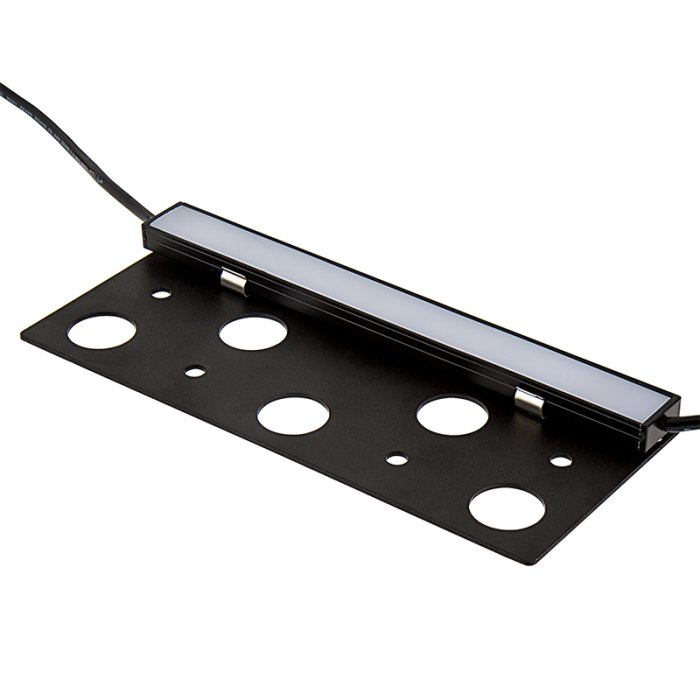

7" LED Hardscape Light with Mounting Plate
Part Number:
HSL2-x7
Manufacturer Part Number:
Starting at
$19.99
ea.
Starting at
Was
Clearance
Features
- Stainless steel mounting plate and powder-coated aluminum housing
- Plug-and-play installation; compatible with G-LUX Series accessories and hardware
- Fixtures can be daisy chained from input and output wire
Related Products
Overview
This low-profile LED hardscape lighting fixture is the perfect way to enhance your outdoor spaces with a pop of vibrant, single-color light. This fixture features a stainless steel mounting plate for secure mounting under capstones and stair treads. Installation is quick and simple with integrated mounting clips and G-LUX plug-and-play connectors. Hardscape lights can be wired into existing low-voltage systems with compatible G-LUX pigtail cable (sold separately).
Product Details:
- 7” hardscape fixture with 60” input and output power wire
- Daisy chain fixtures with G-LUX connectors
- Integrated LEDs diffuse light with out shadows or hotspots
- Weatherproof IP65 rated
- Lifetime exceeds 25000 Hours
- 12 VAC/DC input
- Two-year warranty
Documents
HSL2 User Manual Applications:
- Accent Lighting
- Gardens
- Landscape Lighting
- Pathways
- Patios
- Stairways
- Stone Retaining Walls
- Walkways
Super Bright LEDs, Inc. offers a 2-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Specifications
|
Beam Angle
Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
180° |
|---|---|
| Certifications/Compliance | CE |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
50 mA |
| Dimmable | No |
| Equivalency | 30 Watt Incandescent |
| Finish | Black |
| Input Connection Type | G-LUX Quick Connect |
|
IP Rating
IP Rating
|
IP65 |
| LED Lifetime | 25000 Hours |
| Length | 7 in. |
| Max Run | 20 |
| Operating Voltage | 12V AC/DC |
| Warranty | 2 Year |
| Wattage | 0.6 Watts |
| Wire Length | 60 in. (5 ft) |
