Discontinued
We have discontinued this product permanently. Please find suggested replacement products from below section.

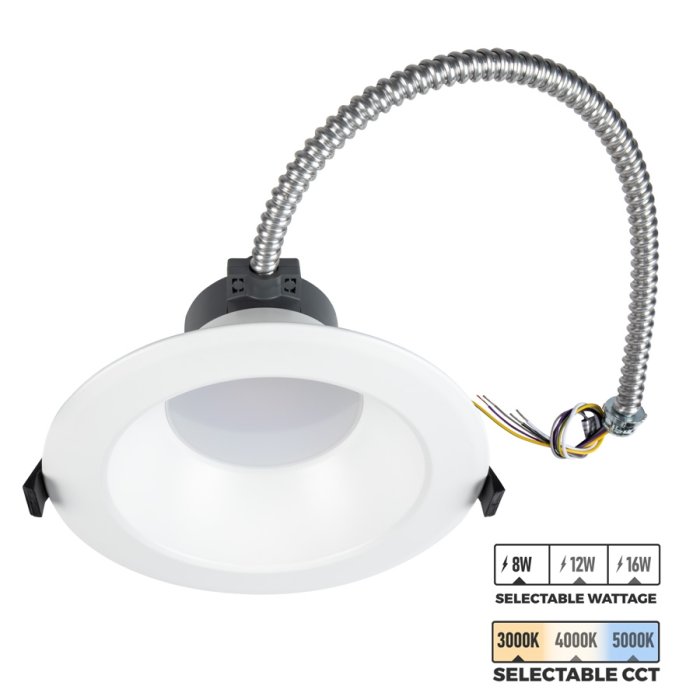

6" LED Commercial Recessed Downlight - Selectable CCT - Selectable Wattage - Dimmable - 800-1600 Lumens
Part Number:
CDL6D-SW3B-SP16W
Manufacturer Part Number:
![6" LED Commercial Recessed Downlight - Selectable CCT - Selectable Wattage - 75-100W Equivalent - Dimmable - 800-1600 Lumens](https://www.superbrightleds.com/media/catalog/product/cache/658b5bae439743a0c5caf366a5f0df99/c/d/cdl6d-sw3b-sp16w-store01.jpg "6" LED Commercial Recessed Downlight - Selectable CCT - Selectable Wattage - 75-100W Equivalent - Dimmable - 800-1600 Lumens")
Discontinued
Features
- Available in 4 sizes: 4", 6", 8", 10" options
- Field selectable CCT (3000K/4000K/5000K)
- Field-selectable wattage (8W/12W/16W) for a lumen range of 800-1600
- Features spring clips that can install directly in the ceiling
- Versatile and energy efficient replacement to CFL lamps
- 120-277 VAC input
Related Products
Overview
CDL series Recessed Downlight is a lighting solution for both commercial and residential spaces, offering flexibility to customize light color and output. The fixture features two slide switches, one that selects CCT, and another that selects lumen output. Warmer light creates a cozy, relaxed, or decorative atmosphere ideal for entertainment spaces. Cooler light can maintain a more energetic, alert environment ideal for locations such as offices or schools. Spring installation can be installed directly in the ceiling with out a housing, or in existing commercial downlight frames. Easy installation accommodates new construction, remodel, and retrofit projects. Deep recessed light source has a frosted lens to create smooth, glare-free illumination. White aluminum trim provides a clean finish to compliment a range of interior spaces.
Product Details:
- Selectable switches located on the back of the fixture
- Frosted polycarbonate lens
- Aluminum housing
- White (RAL 9016) finish trim compliments residential and commercial interiors
- 100 lm/W
- 80+ CRI
- 80° beam angle
- Operating temperature: -4° - 113° F (-20° - 45° C)
- 0–10 V dimmable
- 15.75" power cable with flexible aluminum conduit and ½" knockout snap-in connector
- 50,000-hour (L70) LED lifetime
- ETL Listed in compliance with UL 1598 (IFAM)
- IP54 rated
- 5-year
Documents
CDL6D-SW3B-SP16W IES File
CDL6D-SW3B-SP16W Photometric Data Sheet Applications:
- Auditoriums
- Commercial Downlights
- Conference Halls
- Hospitality
- Hospitals
- New Construction
- Offices
- Retail Shops
- Retrofit Lighting
- Schools
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Need help?
Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Beam Angle | 80° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
3000K, 4000K, 5000K |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
ETL Listed |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
29/43/58 mA @ 277 VAC, 67/100/133 mA @ 120 VAC |
| Dimmable | Yes |
| Efficacy | 100 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Weatherproof |
| Finish | White |
|
IP Rating
IP Rating
|
IP54 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lumens | 800 Lumens, 1200 Lumens, 1600 Lumens |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum, Polycarbonate Lens |
| Product Weight | 1.1 lb (0.5 kg) |
| Warranty | 5 Year |
| Wattage | 8 Watts, 12 Watts, 16 Watts |
