5mm Blue High Flux LED - 465 nm - 90 Degree Viewing Angle - Blue
Part Number
HF5-B5590
Overview

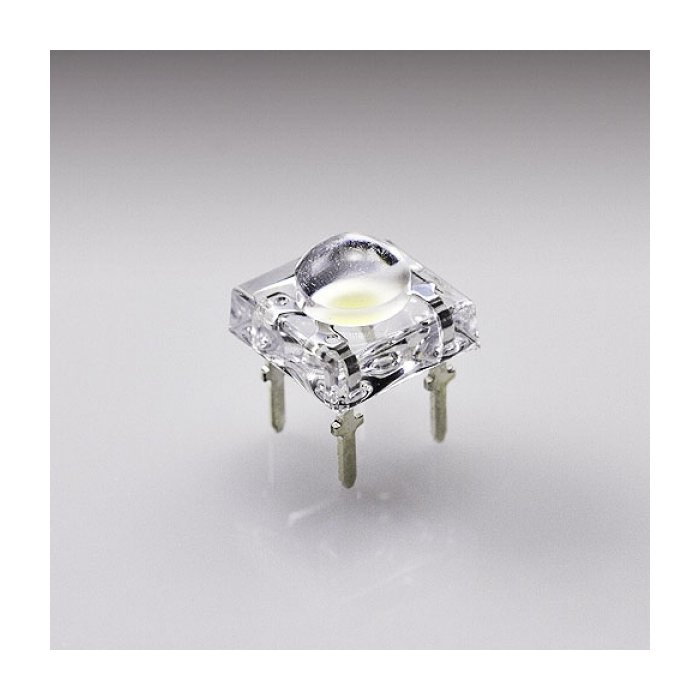

5mm High Flux blue LED. Features 465nm wavelength, 5,500mcd, and 90 degree viewing angle. 7.62mm square with 5mm diameter dome. Clear 4.95mm low profile package. Price listed is per unit, however, bulk discounts are available, please contact our customer service department.
Specifications
| Continuous Forward Current | 20 mA |
|---|---|
| Forward Voltage | 3.2V |
| Color Options | Blue |
| Lens | Clear |
| Lumen | 10 Lumen |
| Maximum Forward Voltage | 3.5V |
| Millicandela | 5500mcd |
| Ambient Operating Temperature Range | -40~+85 °C (-40~+185 °F) |
| Power Consumption | 0.064 Watts |
| Reverse Voltage | 5V |
| Viewing Angle | 90 degree |
Part Number: HF5-B5590
| 5mm High Flux Blue LED (InGaN) | |||||||
| absolute maximum ratings: (TA=25°C) | |||||||
| PARAMETER | SYMBOL | Rating | UNIT | ||||
| Power Dissipation | PD | 100 | mW | ||||
| Pulse Current(1/10 Duty Cycle, 0.1ms PULSE WIDTH) | -- | 100 | mA | ||||
| Continuous Forward Current | IF | 20 | mA | ||||
| Peak Forward Current (1/10th duty cycle, 0.1ms pulse width) | IFM | 50 | mA | ||||
| Reverse Voltage | VR | 5 | V | ||||
| Operating Temperature | TA | -40~+85 | °C | ||||
| Storage Temperature | Tstg | -40~+85 | °C | ||||
| Reverse Current (VR=5V) | IR | 10 | µa | ||||
| Lead Soldering Temperature (3mm from body) 260C (for 3 seconds) | |||||||
| Optoelectric Characteristics | |||||||
| PARAMETER | SYMBOL | MAX | TYP | UNIT | TEST | ||
| View Angle of Half Power | 2ø1/2 | -- | 18 | Degree | -- | ||
| Forward Voltage | VF | 4 | 3.6 | V | IF=20mA | ||
| Dominant Emission Wavelength | ÿD | 465 | nm | ||||
| Luminous Intensity | IV | -- | 4000 | mcd | IF=20mA | ||
