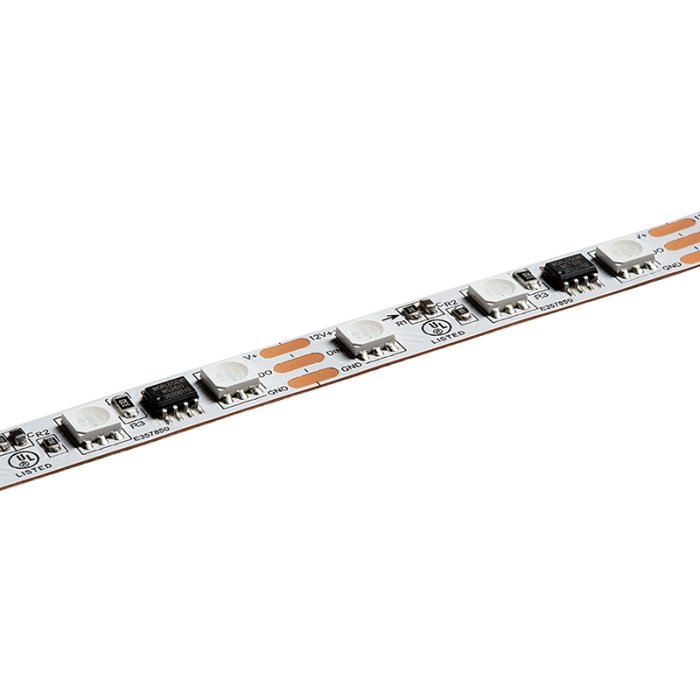

5m Digital RGB LED Strip Light - 18 LEDs/ft - Addressable Color-Chasing LED Tape Light - 12V - IP20 - RGB
Part Number:
STN-PCRGB-A3A-10B5M-12V
Manufacturer Part Number:
$119.99
ea.
Was
In Stock
Features
- 5050 RGB LEDs - address each 3 LED segment with integrated WS2811 IC chips
- 200 unique color chasing patterns to choose from
- Use Magic-LED Bluetooth Controller (sold separately) and app to wirelessly customize brightness, color, modes, and speed
- 3M™ adhesive backing for surface mounting
- 12 VDC
Frequently Bought Together
Total Price:
Loading...
Related Products
Overview
DreamColor series Digital RGB Strip Light has WS2811 IC chip technology to individually address each 3 RGB LED segment. Use the compatible Magic-LED Bluetooth Controller (sold separately) and Magic-LED app to operate from the convenience of a smartphone. Select from thousands of solid colors and 200 preset color chasing modes. Customize brightness, sequence length as well as chase speed. This tape light requires 12V power, is cuttable every 3 LEDs, and has 3M™ adhesive backing for quick mounting. Create unique light displays for nightclubs, concert venues, stages and studios, decorative backlighting and more.
Controller requires Magic-LED app and compatible Bluetooth equipped device with at least iOS 8.0 or Android 4.4 installed. Magic-LED app compatible with both Apple and Android smartphones.
Controller requires Magic-LED app and compatible Bluetooth equipped device with at least iOS 8.0 or Android 4.4 installed. Magic-LED app compatible with both Apple and Android smartphones.
Product Details:
- Also available in IP67 water resistant version
- Also available in single addressable version
- 12 VDC input
- 3 LEDs/segment
- Max Run: 16.4 ft (5 m)
- Segment Length: 1.97 in. (50 mm)
- Density: 18 LEDs/ft (60 LEDs/m)
- Strip Width: 12 mm (0.47 in.)
- 0-100% dimmable
- Connection: pigtail
- IP20 rated for dry conditions
- 36000 hours L70 lifespan
- UL Listed
- 5-year warranty
ST Series 12 VDC Addressable RGB Strip Light Specification Sheet Applications:
- Interior Design
- Light Design
- Light Shows
- Sign Lighting
- Venues
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Certifications/Compliance | CE, UL Listed |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
5 A |
|
Current Draw per Foot
Current Draw per Foot
Current Draw Per Foot is used to size power supplies, normally converted to watts per foot. This is equated using total wattage divided by number of linear feet. Current draw per foot is the amount of current consumed by an LED or LEDs in an electrical circuit per linear foot at a specific voltage, measured in milliamps (mA) or watts (W).
|
305mA |
| Dimmable | Yes |
| Dimmer Type | PWM |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Dry Locations |
| Finish | White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
|
IP20 |
|
LED Beam Angle
LED Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
120° |
| LED Color | Color Chasing RGB |
| LED Density | 18 LEDs/ft |
| LED Type | 5050 SMD |
| LEDs per Segment | 3 |
| Length | 16.4 ft (5 m) |
| LED Lifetime | 36000 Hours |
|
Max Run (Class 2)
Max Run (Class 2)
The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.
|
16.4 ft (5 m) |
| Minimum Cut Length | 50mm (1.97in) |
|
Operating Voltage
Operating Voltage
LED Strip Light Voltages – What You Need to KnowChoosing the correct voltage for your LED tape lights ensures optimal performance, safety, and ease of installation. Here’s a quick guide to help you decide:
12 Volt ACCommon in landscape lighting setups, 12 VAC strips work with standard low-voltage AC transformers and are best suited for fixed outdoor applications such as landscape, hardscape, and deck lighting projects.
12 Volt DCThese strip lights are a go-to choice for smaller projects and mobile applications like RVs, boats, and vehicles. They are easy to work with, highly flexible, and perfect for short runs up to ~16 ft.
24 Volt DCIdeal for residential and commercial projects, 24 VDC strips are becoming the new industry standard. They offer longer run lengths (up to ~32 ft) with reduced voltage drop and increased efficiency.
36 Volt DCOffering extended runs with consistent brightness and reduced power loss across longer distances, 36 VDC strips are well suited for medium to large-scale installations.
48 Volt DCThese strips deliver optimal performance and the longest runs (40+ ft) of DC strip lights. Their ultra-low current draw minimizes heat and allows for thinner, more efficient wiring.
120 Volt ACThese high-voltage strips offer a plug-and-play strip lighting solution compatible with standard household wall outlets. They operate free from external drivers, simplifying project design and installation. They offer the longest max run (50–150+ ft) without a noticeable voltage drop. They are best suited for large areas, architectural lighting, and outdoor use. |
12 VDC |
| Series | DreamColor |
| Strip Width | 12mm (0.47in) |
| Wattage | 60 Watts |
| Wattage per Foot | 3.7 W/ft |
| Wire Length | 10 in. |
