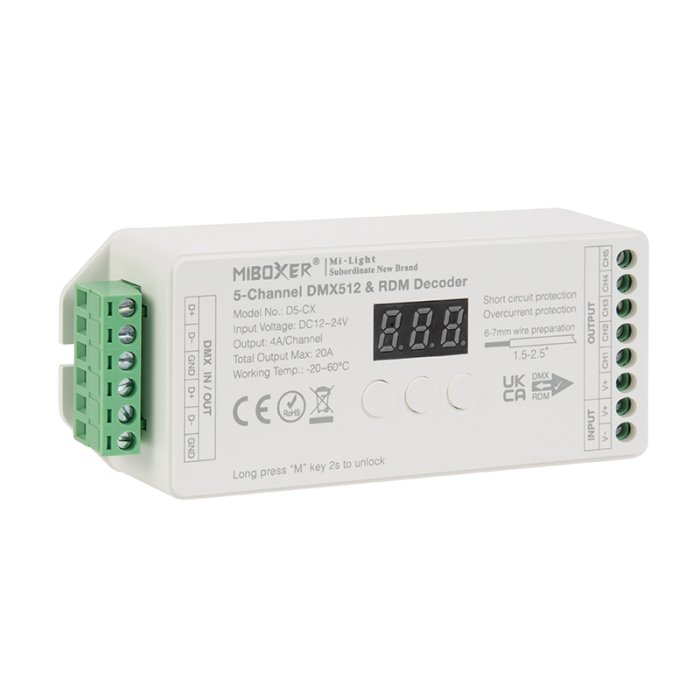

5 Channel LED DMX512 and RDM Decoder - 4 A/CH - Digital Display - 12-24 VDC
Part Number:
D5-CX
Manufacturer Part Number:
$26.99
ea.
Was
In Stock
Similar Products Available Today
Features
- DMX 512 and RDM decoder
- Converts DMX512 signals to static white, CCT, RGB, RGBW, and RGB+CCT
- Easy-to-use digital display
- 4A per channel, 20A max
- Short circuit protection
Ask About This Product
Get instant AI-powered answers
Try asking:
Most Popular Compatible Products
Overview
This 5-channel DMX512 and RDM decoder has the ability to decode and control up to 5 different LED products or one RGB+CCT LED strip light. Decoder runs 4 amps per channel, totaling 20 amps or 480W at 24 VDC. Adjust the Gamma dimming curve to either linear or logarithmic for precise dimming. Select between an optional high PWM frequency or a low frequency. Set decoder through the digital display.
Product Details:
- Screw terminal connections for input and output
- Optional PWM frequency: 2000hz or 500hz
- Gamma dimming: 1.0 Linear dimming or 1.6 Logarithmic dimming
- 12 VDC: 48W per channel, 240W total
- 24 VDC: 96W per channel, 480W total
- Short circuit protection, overcurrent protection, and anti-reverse protection
Documents
D5-CX User Manual
Super Bright LEDs, Inc. offers a 2-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
UKCA
UKCA (UK Conformity Assessed) certification is a regulatory marking required for certain products placed on the market in Great Britain (England, Scotland, and Wales) to indicate compliance with the relevant UK regulations. It was introduced after Brexit to replace the CE marking for goods sold within the UK. The UKCA marking covers most goods that previously required the CE marking, ensuring they meet UK safety, health, and environmental standards. Manufacturers must follow specific procedures, including testing and documentation, to affix the UKCA mark, demonstrating that their products are fit for sale in the UK market. LED products, like other electrical equipment, must obtain UKCA certification to confirm they comply with British regulations on safety, performance, and electromagnetic compatibility before being sold in Great Britain.
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Specifications
| Ambient Operating Temperature | -20 to 60 °C (-4 to 140 °F) |
|---|---|
| Amps | 20 Amps |
| Amps Per Channel | 4 Amps/CH |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application.The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here. |
CE, UKCA |
| Control Type | DMX512, RDM Decoder |
| Detection Range | 98.4 ft (30 m) |
| DMX In/Out | Screw Terminals |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Non-weatherproof |
| Finish | White |
| Input Connection Type | Screw Terminal |
|
IP Rating
IP Rating
 |
IP20 |
| Max Input Current | 20.5 A |
| Number of Channels | 5 Channels |
| Product Materials | Polycarbonate |
| Supported Smart Phone Apps | MiBoxer, Smart Life / Tuya |
| Voltage | 12-24 VDC |
| Warranty | 2 Year |
