Name: 45-ALU LED Strip Channel - Corner Mount - 11mm
Brand: Super Bright LEDs
SKU: B4023ANODA
Price: 18.99 USD
Availability: InStock
Rating: 4.7 (19 reviews)

Overview

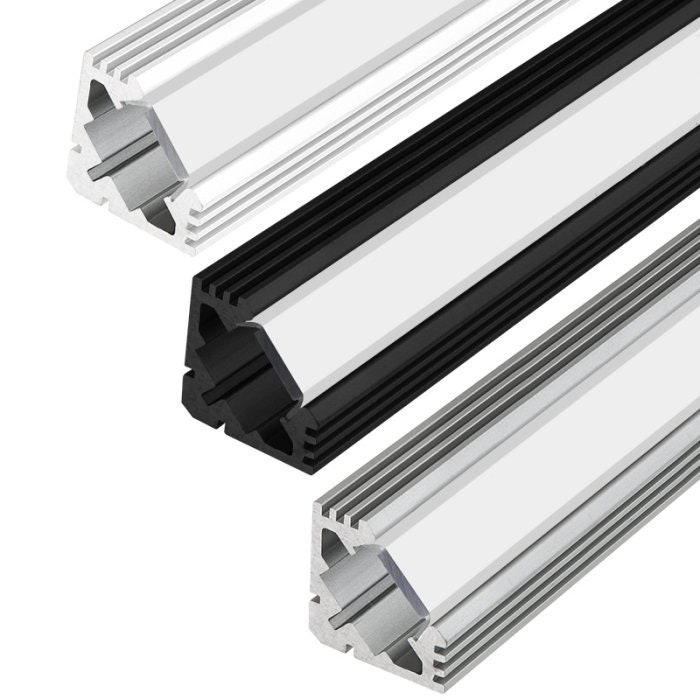

The KLUS® 45-ALU series LED aluminum profile housing is a professional corner mounting solution for LED strip lights up to 11mm wide. This anodized extruded aluminum accent channel fits 90-degree corners and is available with a clear lens or a frosted lens for smooth, 45-degree angle lighting with no visible hot spots. Create a defined "line of light" illumination with specific lens and LED strip combinations. Install with 3M-FTS double-sided tape or mounting brackets. The strip can reach a waterproof rating for wet areas when installed with a cover, end caps, and neutral silicone sealant (see accessories). This channel is perfect under desks and stair nosings or for bookshelves, cabinets, workbenches, etc. Available in 1m (3.3 ft) or 2m (6.6 ft) lengths in black, silver, or white. See similar KLUS TAN-C5 Eco Corner Accent Aluminum Channel.

See our selection of LED strip lights

Product Details:

Anodized extruded aluminum
Available with or without lens
Mount with 3M-FTS double-sided tape or mounting brackets
4-year warranty

Super Bright LEDs, Inc. offers a 4-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Cabinets
Garage Lighting
Kitchen Lighting
Stairs
Workbench
Workshop Lighting
Shower Lights
Task Lighting
Bookshelf Lighting
Under-Cabinets

Specifications

Brand	Klus
Material	Aluminum
Mount Type	Corner
Strip Width	11mm (0.43in)

Print Specifications

Part NO	Finish	Length	Lens	Shipping Exclusions and Details Shipping Exclusions and Details Shipping exclusions apply to some products, making them ineligible for free shipping. Any order with a combined weight of over 150 pounds or containing an excluded item will be excluded from free shipping automatically. One or more exclusions may apply to the same product as well. Exclusions per item may include, but are not limited to, the following: • Any package with any two dimensions of the package over 30 inches. • Any package with a single side of the package over 42.3 inches. • Any package with a total combined length of the longest side added to 2 times the second and third longest sides over 130 inches. (L + 2H + 2W) • Any package with a weight over 50 pounds.
B4023ANODA_1	Silver Anodized	3.3ft (1m)	Not Included
B4023ANODA_1-C	Silver Anodized	3.3ft (1m)	Clear
B4023ANODA_1-F	Silver Anodized	3.3ft (1m)	Frosted
B4023ANODA_2	Silver Anodized	6.6ft (2m)	Not Included	Excluded From Free Shipping
B4023ANODA_2-C	Silver Anodized	6.6ft (2m)	Clear	Excluded From Free Shipping
B4023ANODA_2-F	Silver Anodized	6.6ft (2m)	Frosted	Excluded From Free Shipping
B4023K7_1	Black Anodized	3.3ft (1m)	Not Included
B4023K7_1-C	Black Anodized	3.3ft (1m)	Clear
B4023K7_1-F	Black Anodized	3.3ft (1m)	Frosted
B4023K7_2	Black Anodized	6.6ft (2m)	Not Included	Excluded From Free Shipping
B4023K7_2-C	Black Anodized	6.6ft (2m)	Clear	Excluded From Free Shipping
B4023K7_2-F	Black Anodized	6.6ft (2m)	Frosted	Excluded From Free Shipping
B4023L9010_1	White	3.3ft (1m)	Not Included
B4023L9010_1-C	White	3.3ft (1m)	Clear
B4023L9010_1-F	White	3.3ft (1m)	Frosted
B4023L9010_2	White	6.6ft (2m)	Not Included	Excluded From Free Shipping
B4023L9010_2-C	White	6.6ft (2m)	Clear	Excluded From Free Shipping
B4023L9010_2-F	White	6.6ft (2m)	Frosted	Excluded From Free Shipping

Product Characteristics

The angular extrusion made from high quality aluminum is designed for flexible or rigid LED strips that are 8 - 10mm wide. A variety of housing covers are available for the extrusion. The cover-K is available in a frosted or transparent lens type. There is also the cover-S focusing lens which allows for a 10 degree light pattern output. Covers are made of polycarbonate. Standard polypropylene end caps and mounting brackets (in steel, zinc or chrome finish) are used for the extrusion as supplementary accessories. End caps protect the extrusion from dust and other undesirable elements, which can make LED strips dirty and reduce their light output. The extrusion can be mounted to surfaces with the use of double sided adhesive tape or mounting brackets. The mounting bracket guarantees easy and secure mounting of the extrusion to a desired surface. It can also work as connector between two extrusions.

Integrated, straight line of light can be achieved by assembling: the extrusion, frosted HS cover and densely spaced LEDs.

Applications

The extrusion with the LED light source is mostly used as interior lighting, especially to light cabinets, stairs, glass cases, or as a decoration light for a niche in drywall ceilings.

Product Dimensions

Advantages

Small dimensions, IP65 waterproof level can be reached, lightweight, modern design, environment friendly. Profile designed to be inserted into all types of grooves, inputs or to be mounted to different surface edges. The light is directed at a 45 degree angel so that it does not hurt the potential user’s eyes. Can be applied to furniture, exhibitors etc.

Accessories & Power Supplies

All Accessories

Lenses

Installation Supplies

End Caps

Switches

Accessories Links

Accessory Category

Accessory Type:

$0.35 ea.

3M-FTP Double-Sided Foam Pad - Double-Sided Foam Pad Part Number: 3M-FTP
In stock

High performance 3M Closed-Cell Acrylic Foam Tape Pads - adhesive on both sides for attaching light bars and other LED products to a wide variety of surfaces. Measures 1.25 x 0.625in, 0.088in thick.
$1.49 ea.

WFLS-GL1OZ 1 oz. Waterproof Sealant Tube - Light Strip Glue Part Number: WFLS-GL1OZ
In stock

One ounce of waterproof sealant for our silicone light strip tubing and end caps.
$4.99 ea.

3M Adhesion Promoter - Single Pack Part Number: 06396
In stock

3M Adhesion Promoter 06396 is a liquid primer specifically formulated for automotive applications that enhances adhesion of 3M Acrylic Foam Tapes for interior and exterior trim applications. The sponge applicator packet is easy to use and makes an ideal choice for LED strip light and aluminum extrusion installations.
$29.99 ea.

3M-FTS Double-Sided Foam Tape Strip - Double-Sided Foam Tape Strip Part Number: 3M 4492
In stock

High performance 3M Double Coated Polyethylene Foam Tape Strips - adhesive on both sides for attaching light bars and other LED products to a wide variety of surfaces. 72 yard reel, which measures 1/4in wide x 216ft long.
$2.99 ea.

45-ALU Mounting Bracket - Corner Mount Mounting Clip Part Number: 24144
In stock

Profile Mounting Clip for the 45-ALU series housings. Mounting clip is made of zinc plated steel with a 5.4mm diameter screw hole for mounting.

$2.99 ea.

45-ALU End Cap - Corner Mount No Hole Part Number: 00030
In stock

Use these gray end caps with frosted or clear lenses on your 45-ALU LED channels. Compatible with MICRO SWITCH (1576). Price for each.
$2.99 ea.

45-ALU End Cap with Hole - Corner Mount Wire Hole Part Number: 00031
In stock

Use these gray end caps with frosted or clear lenses on your 45-ALU corner-mount LED channels. Each end cap has a hole for wiring. Compatible with MICRO SWITCH (1576). Price for each.
$2.99 ea.

45-ALU End Cap Black - 24070 Part Number: 24070
In stock

Use these black end caps with frosted or clear lenses on your 45-ALU black LED channels. Price for each.
$1.99 ea.

45-ALU End Cap White - 20003 Part Number: 20003
In stock

Use these white end caps with frosted or clear lenses on your 45-ALU white LED channels. Price for each.
$1.99 ea.

ECO-45 End Cap with Hole - 21003 Part Number: 21003
In stock

Use these white end caps with frosted or clear lenses on your 45-ALU white corner-mount LED channels. Each end cap has a hole for wiring. Price for each.

$42.99 ea.

Klus 1576 - 12~24V MICRO Switch - MICRO SWITCH Part Number: 1576
In stock
