Discontinued
We have discontinued this product permanently. Please find suggested replacement products from below section.

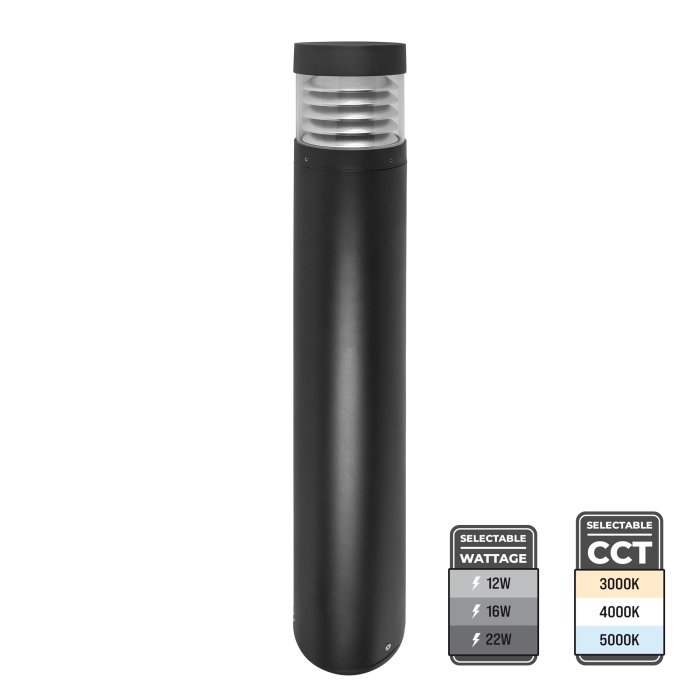

42 inch Flat Top Bollard with Louvers - Black Finish - Selectable 12W / 16W / 22W - 3000K / 4000K / 5000K - 1540 Lumens - BLRB-SW3B22S-742-BKFL
Part Number:
BLRB-SW3B22S-742-BKFL
Manufacturer Part Number:
Discontinued
Features
- Selectable Wattage- 12W, 16W, 22W
- Selectable CCT- 3000K, 4000K, 5000K
- 360° aluminum louvers minimize glare and uplight
- Slim, architectural design
- Replaces up to 50-watt metal halide
- 5 year warranty
Related Products
Overview
The Flat Top LED Bollard with Louvers features field selectable wattage and CCT, providing up to 1,540 lumens and replacing up to 50W metal halide fixtures with three separate wattages and color temperatures. Downward projecting louvers reduce uplight and glare. Die cast aluminum housing, polycarbonate lens, and IP65 rating ensures durability in outdoor conditions. Ideal solution for walkways and pathways, building perimeters, and building entrances.
Product Details:
- Offers up to 1,540 lumens
- Black powder coated die cast aluminum housing
- Install in new concrete pours using Anchor Bolt Mounting Bracket (sold separately)
- IP65 rated for wet conditions
- Also available in bronze
- Also available in black finish with a round top
- 120-277 VAC
- UL Listed
- 5 year warranty
Documents
BLRB/BLSB User Manual
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | -40 to 50 °C (-40 to 122 °F) |
|---|---|
| Beam Angle | 360° x 180° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
3000K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
100/133/183 mA @ 120 VAC, 43/58/79 mA @ 277 VAC |
| Dimmable | Yes |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
| Equivalency | 50 Watt Metal Halide |
| Finish | Black |
| Height | 42 in |
| Impact Resistance | IK10 |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 10 kV |
|
IP Rating
IP Rating
|
IP65 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lumens | 840 Lumens, 1120 Lumens, 1540 Lumens |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum, Polycarbonate |
| Product Weight | 12.7 lb (5.8 kg) |
| UL File Number | E366643 |
| Warranty | 5 Year |
| Wattage | 12 Watts, 16 Watts, 22 Watts |
