3mm Yellow High Flux LED - 590 nm - 70 Degree Viewing Angle - 3mm Yellow High Flux LED

Part Number: HF3-Y5570
Manufacturer Part Number:
$0.15 ea.
Clearance
box-open-solid
truck-fast-solid
On orders $300 and up within the contiguous U.S.
Item does not qualify

Overview

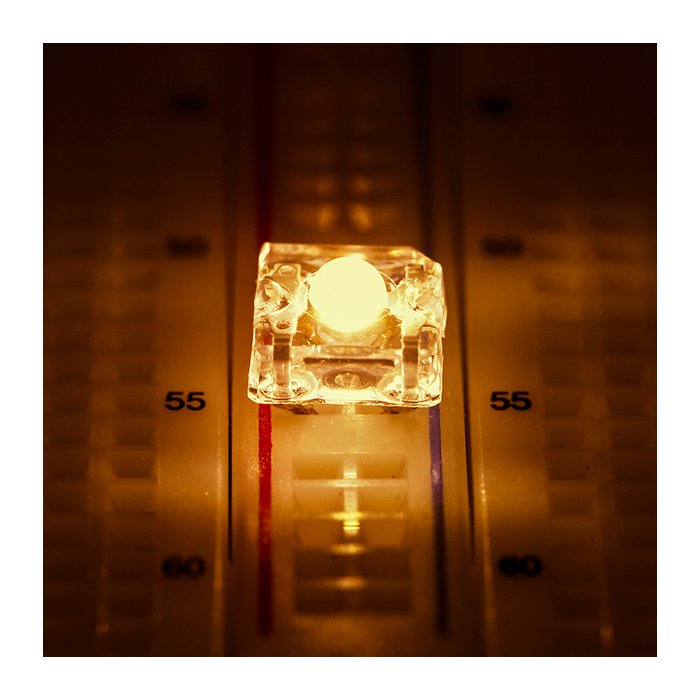

3mm High Flux Yellow LED featuring a 590nm wavelength, 5,500mcd, and 70 degree viewing angle. 7.62mm square with 3mm diameter dome. Clear 4.4mm low profile package. See spectral graph for actual wavelength measurement. Price listed is per unit, however, bulk discounts are available, please contact our customer service department.

Specifications

Ambient Operating Temperature Range -40~+85 °C (-40~+185 °F)
Color Options Yellow
Continuous Forward Current 20 mA
Forward Voltage 2.2V
Lens Color Clear
Lumens 6 Lumens
Maximum Forward Voltage 2.6V
Millicandela 5500mcd
Reverse Voltage 4V
Wattage 0.088 Watts
Viewing Angle 70 degree
Part Number: HF3-Y5570
3mm High Flux Yellow LED (AlGaInP)
absolute maximum ratings: (TA=25°C)
PARAMETER SYMBOL Rating UNIT
DC Forward Current IF 20 mA
Continuous Forward Current IF 20 mA
Pulse Current(1/10 Duty Cycle, 0.1ms PULSE WIDTH) -- 100 mA
Peak Forward Current (1/10th duty cycle, 0.1ms pulse width) IFM 100 mA
Reverse Voltage VR 4 V
Operating Temperature TA -40~+85 °C
Storage Temperature Tstg -40~+100 °C
Lead Soldering Temperature (3mm from body) 260C (for 3 seconds)
Optoelectric Characteristics
PARAMETER SYMBOL MAX TYP UNIT TEST
View Angle of Half Power 2ø1/2 -- 70 Degree --
Forward Voltage VF 2.6 2.2 V IF=20mA
Dominant Emission Wavelength ÿD -- 590 nm --
Luminous Intensity IV -- 5500 mcd IF=20mA
