36W LED Retrofit Lamp - 100W Equivalent HID Conversion - E39/E40 Mogul Base - 4,200 Lumens - 5000K/4000K

36W LED Paddle/Shoebox Bulb for HID Lamps - 4,200 Lumens - 150W Equivalent Metal Halide - E39 Mogul Base - Ballast Bypass - 5000K/4000K

Part Number
DRB-x36-E39

Discontinued

We have discontinued this product permanently. Please find suggested replacement products from below section.

Features

  • Replaces HPS and MH HID bulbs - Designed for wall packs and shoebox fixtures
  • High efficacy
  • Ballast bypass - Direct wire only 100V - 277V
  • 5 Year warranty
View more details

Black Friday Sale: 15% Off Your Entire Purchase! When you use code BFCM22 at checkout. Details⇒

Overview

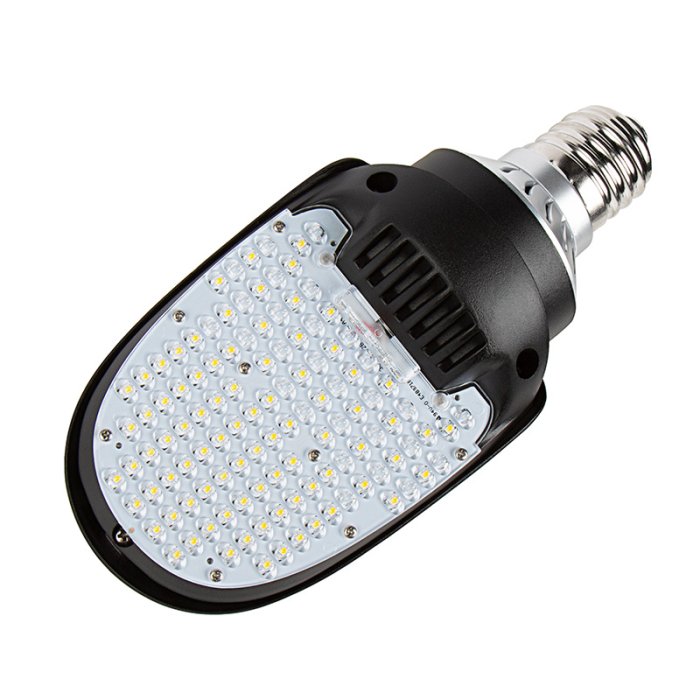

Use this LED retrofit lamp to easily convert metal-halide (MH) and other high-intensity discharge (HID) fixtures into super-bright, energy-efficient LED fixtures. Perfect for parking lot lights and wall pack lights, the rotatable bulb has enhanced 3030 SMD LEDs that are mounted behind specialized optics that throw illumination where needed. This powerful LED retrofit lamp uses just 36 watts of power to emit up to 4,200 lumens of light and is a replacement for 150-watt MH bulbs. with a life expectancy of 50,000 hours—more than twice as long as MH bulbs—the LED light reduces costly repairs, disposal fees, and the need for replacements. The non-weatherproof bulb has an aluminum LED-cooling heat sink and shatterproof polycarbonate lenses. A rotatable E39/E40 mogul screw base allows for easy installation in MH fixtures (ballast can be removed or bypassed), and the light operates with in a wide 100-277 VAC range.
UL Listed
UL Listed
5 Years
5 Years
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a product of equal value may be substituted or a gift card for the value of the product. Read More

Applications

  • LED Wall Packs
  • Parking Lots
  • Walkway
  • Workshops
  • Shops
  • High Bays
  • Low Bays

Specifications

Ballast Compatibility Type B (Ballast Bypass)
Base Type E39 (Mogul Screw)
Beam Angle 90° x 150°
Comparable Wattage 150 Watt Metal-Halide
CRI 73 CRI
Current Draw 0.3A (300mA)
Dimmable No
Efficacy 117 lm/w
Environmental Rating Non-weatherproof, Suitable for Damp Locations
IP Rating IP51
LED Lifetime 50000 Hours
LED Type 3030 SMD
Material Aluminum, Polycarbonate
Operating Temperature -20~+45 °C (-4~+113 °F)
Oversize Yes
Power Consumption 36 Watts
Reference Number E39 (Mogul Base)
Standards And Certifications UL Listed
UL File Number E477606, E348221
Volts 100~277 VAC
Print Specifications
Swipe left to see additional specifications
Part NO Brand CCT Value Color Options Lumen
DRB-40K36-E39 Super Bright LEDs 4000K Natural 4000K 5000 Lumen
DRB-50K36-E39 Super Bright LEDs 5000K Cool 5000K 4200 Lumen
