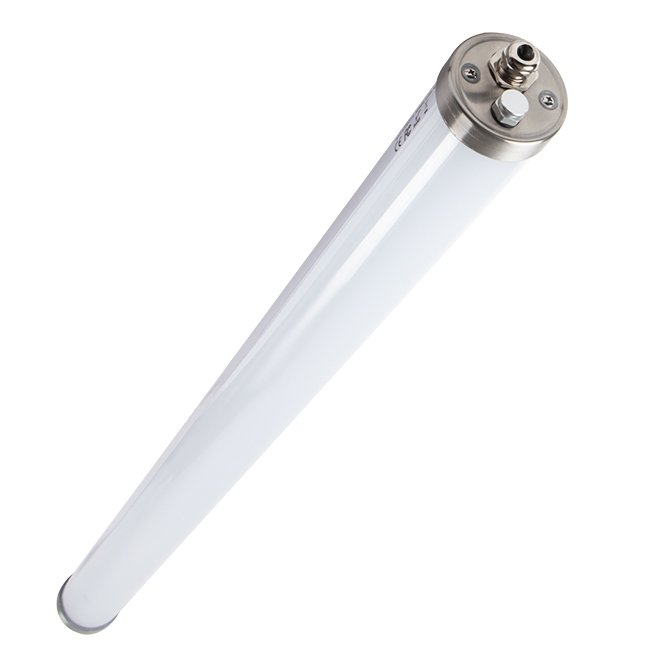

Name: 36W 4FT LED Washdown Light Fixture Tube - NSF Certified - Linkable - 5040 Lumens - 4000K / 5000K
Brand: Super Bright LEDs
SKU: SL-P69F4-36-x
Price: 129.99 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

Overview

Description

SL series LED Washdown Tube Fixture meets NSF and FDA/USDA criteria making it ideal for food and beverage processing and other sanitary environments. Smooth tubular design and gasketed stainless steel end caps are easy to clean and prevent the collection of dust, residue, or contaminants. Rated IP69K, the enclosed light is built to withstand up to 1200psi high pressure hose-downs in wet locations such as car washes and industrial kitchens. Polycarbonate construction is impact resistant, and will not shatter like glass. With an efficiency of 140 lumens per watt, this linear fixture outperforms T5/T8 fluorescent tubes and qualifies for DLC Premium utility rebates. Select the option with cables on both sides for linking multiple together.

Product Details:

2 surface mount stainless steel tension clamps included
Optional: Stainless steel aircraft cable hanging kit
2ft power cord with liquid-tight power entry
100–277 VAC input voltage range
Premium efficacy performance up to 140 lm/W
Color Rendering Index (CRI) > 80
Available in 4000K or 5000K up to 5040 lm
Single and dual end wiring options available
Rated IP69K for wet locations
Rated 75000 hours L70 lifetime
DLC Premium, UL Listed, NSF certified
5 year warranty

This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.

This product has been certified by Underwriter Laboratories to their engineering and safety standards.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Agricultural Processing
Chemical Plants
Commercial & Industrial Lighting
Horticulture Centers
Industrial Kitchens
Manufacturing Plants
Meat Processing
Packaging Facilities
Pharmaceutical Facilities
Sanitary Areas
Treatment Plants
Factories
Marine Lighting
Car Wash Lighting
Food Processing Plants
Cold & Freezer Storage

Specifications

Beam Angle	120°
Brand	Super Bright LEDs
Comparable Wattage	2-lamp 32W T8 Tubes
CRI	80+
Current Draw	300 mA @ 120 VAC
Dimmable	No
Efficacy	140 lm/W
Environmental Rating	Suitable for Wet Locations, Waterproof
Fixture Type	NSF Certified
IP Rating	IP69K
LED Lifetime	75000 Hours
Lens	Frosted Polycarbonate
Linkable	Yes
Lumen	5040 Lumens
Material	Polycarbonate, Stainless Steel
Mount Type	Surface
Operating Temperature	-20~+40 °C (-4~+104 °F)
Power Consumption	36 Watts
Product Weight	4lb 7oz (2.01kg)
Shipping Exclusions and Details Shipping exclusions apply to some products, making them ineligible for free shipping. Any order with a combined weight of over 150 pounds or containing an excluded item will be excluded from free shipping automatically. One or more exclusions may apply to the same product as well. Exclusions per item may include, but are not limited to, the following: • Any package with any two dimensions of the package over 30 inches. • Any package with a single side of the package over 42.3 inches. • Any package with a total combined length of the longest side added to 2 times the second and third longest sides over 130 inches. (L + 2H + 2W) • Any package with a weight over 50 pounds.	Excluded From Free Shipping
Standards And Certifications Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here.	Certified by UL, DLC Premium, NSF
UL File Number	E469401
Voltage	120-277 VAC

Print Specifications

Part NO	CCT Value CCT Value	LED Color
SL-P69F4-36-P	5000K	Cool 5000K
SL-P69F4-36-P (D)	5000K	Cool 5000K
SL-P69F4-36-W	4000K	Natural 4000K
SL-P69F4-36-W (D)	4000K	Natural 4000K

Accessories & Power Supplies

All Accessories

Installation Supplies

Connectors

Mounting

Wiring

Powercord

Accessories Links

Accessory Category

Accessory Type:

$8.99 ea.

LED Surge Protector - 5kA Max Capacity - 120-277 VAC - QR-SPD07-10 Part Number: QR-SPD07-10
In stock

In the event of a voltage surge or electrical failure, LED Surge Protector is an added defense for indoor or outdoor LED fixtures. Take advantage of the already safe, long lifespan of LEDs with this additional accessory. It provides a nominal discharge current of 5kA, and a maximum discharge current of 10kA for 120-277V drivers.
$5.99 ea.

515PV Straight Blade Plug - 515PV Part Number: 515PV
In stock

This 3-prong straight blade plug (515PV) is ideal for creating a grounded plug-in option for lights that use 18-AWG to 12-AWG wire. The 15-amp (max), 125-volt (max) plug is constructed of durable PVC, and its backwire clamps are designed to fit tightly around 3-conductor stripped wire.

$13.99 / kit
LED Garage/Shop Light Suspension Kit - 2pc Suspension Kit Part Number: TPLF-HKO
In stock
Use this suspension kit to hang your vapor-tight LED strip light. The kit includes 2 stainless steel braided cables and mounting hardware. Cables provide suspension of up to 3-1/2'.

Compatible Fixtures:
- 2' 30W Vapor Tight LED Strip Light
- 4' 50W Vapor Tight LED Strip Light

$0.59 per Foot

SJT Cable - Black Jacketed 18 Gauge Three Conductor Power Wire - 18 AWG Power Wire Part Number: WP18-35J
In stock

Parallel bonded three conductor 18 gauge 3x18 stranded power wire for installations. This standard SJT cable is ideal for high voltage applications. Price per foot.

$7.99 ea.

Power Cord for Power Supplies - Power Cord for Power Supplies Part Number: _POWERCORD
In stock

Standard grounded power cord for plugging power supplies into standard 115VAC receptacle. 18 gauge, SJT type 3 conductor, 6 foot length.
