Day Brite 30W 2x4 LED Troffer - Up To 4,200 Lumens - Dimmable - White Finish- 3500K / 4000K
Part Number:
2FGXG42B8x-4-RS-UNV-DIM
Manufacturer Part Number:
Starting at
$124.99
ea.
Starting at
Was
In Stock
Features
- Eqivalent to fixtures with up to three 32W T8 tubes
- Replaces existing fluorescent features
- 0-10V dimmable
- DLC 5.1 Premium
Related Products
Overview

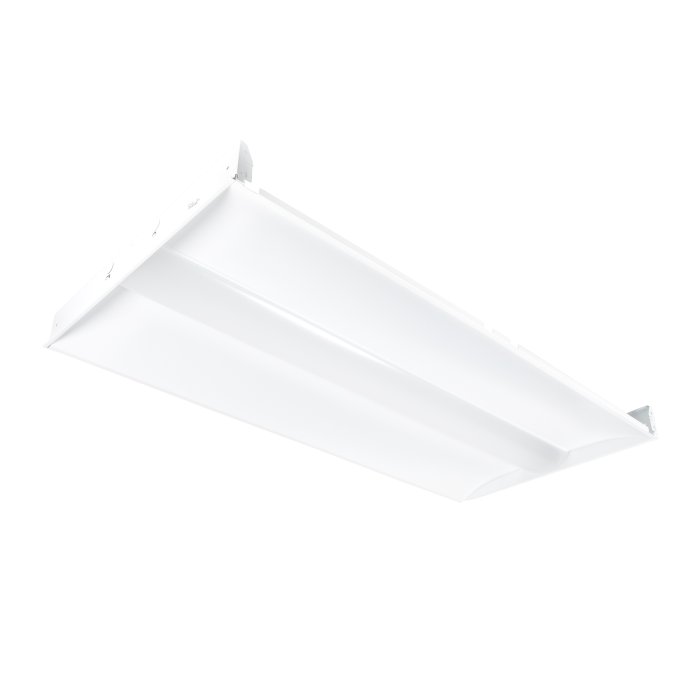

The Day Brite 30W 2x4 Troffer replaces fixtures that have three 32W T8 tubes. With durable construction and a frosted acrylic lens, they can replace fluorescents in standard T-grid drop ceilings. One 2x4 lay-in LED troffer produces over 4,200 lumens per fixture at an efficient 140 lm/W. Each one has an 80+ CRI for accurate color rendering, a 3500K color temperature, and is 0-10V dimming. This energy-efficient troffer is ideal for upgrading office, school, or hospital lighting.
Product Details:
- White housing with center-basket with frosted, acrylic lens
- Eqivalent to fixtures with three 32W T8 tubes
- 0-10V dimmable
- 120-277 VAC
- ETL Listed
- DLC 5.1 Premium
- 5-year warranty
Documents
2FGXG42B840-4-RS-UNV-DIM Specification Sheet
2FGXG42B840-4-RS-UNV-DIM IES File Applications:
- Commercial Suspended Grid Ceilings
- Hospitals
- Hotels
- New Construction
- Schools
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
Need help?
Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Ambient Operating Temperature | -20 to 40 °C (-4 to 104 °F) |
|---|---|
| Brand | Day-Brite CFI |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
DLC Premium, ETL Listed |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
280 mA @ 120 VAC, 120 mA @ 277 VAC |
| Dimensions | 2ft x 4ft |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 3-lamp 32W T8 Tubes |
| Finish | White |
|
IP Rating
IP Rating
|
IP20 |
| Rated Life (L70) | 100000 Hours |
| Lens Color | Frosted |
| Lens Type | Acrylic |
| Mount Type | Drop Ceiling |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Warranty | 5 Year |
| Wattage | 30 Watts |
| Part NO |
CCT
CCT
|
DLC Product ID | Efficacy | LED Color | Lumens | Manufacturer Part Number |
|---|---|---|---|---|---|---|
| 103396780410 | 4000K | P01MXEIE | 141 lm/W | Natural White | 4223 Lumens | 2FGXG42B840-4-RS-UNV-DIM |
| 912401607993 | 3500K | P9WLE1Y6 | 138 lm/W | Warm White | 4153 Lumens | 2FGXG42B835-4-RS-UNV-DIM |
