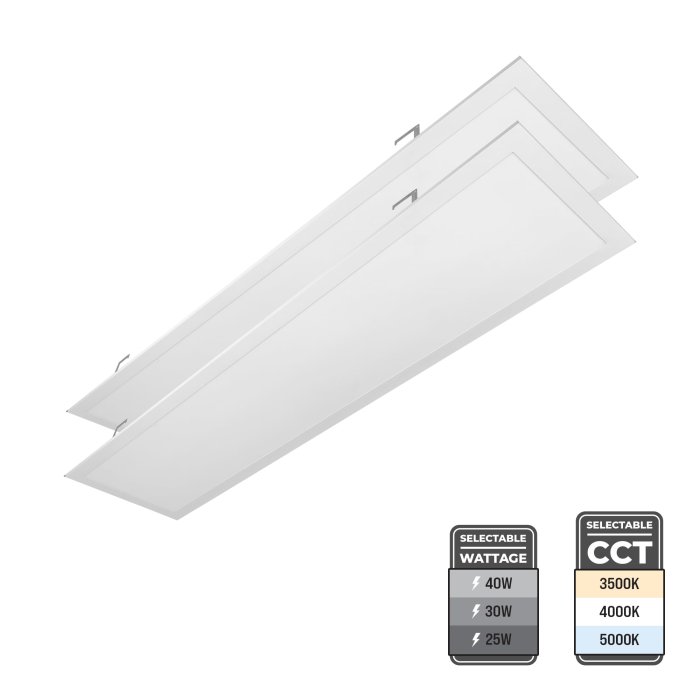

Euri Lighting 1x4 LED Flat Panel Light - Selectable CCT and Wattage - Up To 5,000 Lumens - 25 W / 30 W / 40 W - 3500K / 4000K / 5000K
Part Number:
EBPN14-40W103sw-2
Manufacturer Part Number:
$109.99
per Pair
Was
In Stock
Features
- Shatterproof PMMA lens that resists yellowing and weathering
- Equivalent to 2-lamp 32 W T8 tube fixture
- DLC 5.1 Premium
Overview
The Euri Lighting 1x4 LED Flat Panel combines efficient performance with versatile design. It offers selectable wattage (25W, 30W, 40W) and CCT options (3500K, 4000K, 5000K). Delivering up to 5,000 lumens ensures uniform illumination with a concave-convex backplate and seamless double-sided welding. The backplate design and construction ensure that all light is directed downwards, with none escaping from the sides or edges of the fixture. The durable PMMA lens resists yellowing, maintaining optimal light output over time. Designed for schools, offices, and retail spaces, the panel features an enlarged driver housing for simplified installation.
Product Details:
- Steel housing with white finish
- Frosted PMMA lens
- Suitable for damp locaitons
- 0-10 V Dimmable
- 120-277 VAC
- Certified by UL
- DLC 5.1 Premium
- 5-year warranty
Documents
EBPN14-40W103sw-2 Specification Sheet Applications:
- Commercial Suspended Grid Ceilings
- Hospitals
- Hotels
- New Construction
- Resorts
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | -20~+80 °C (-4~+176 °F) |
|---|---|
| Beam Angle | 110° |
| Brand | Euri |
|
CCT
CCT
|
3500K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC Premium |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
225/275/365 mA @ 120 VAC, 95/115/155 mA @ 277 VAC |
| Dimensions | 1ft x 4ft |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| DLC Product ID | PLEGY5P8X6RP |
| Efficacy | 125 lm/W |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 2-lamp 32 W T8 Tubes |
| Finish | White |
| Input Connection Type | Pigtail |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lens Color | Frosted |
| Lens Type | PMMA |
| Lumens | 3125 Lumens, 3750 Lumens, 5000 Lumens |
| Mount Type | Drop Ceiling |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | PMMA Lens, Steel Housing |
| Product Weight | 4.9 lb (2.2 kg) |
| UL File Number | E485370 |
| Warranty | 5 Year |
| Wattage | 25 Watts, 30 Watts, 40 Watts |
