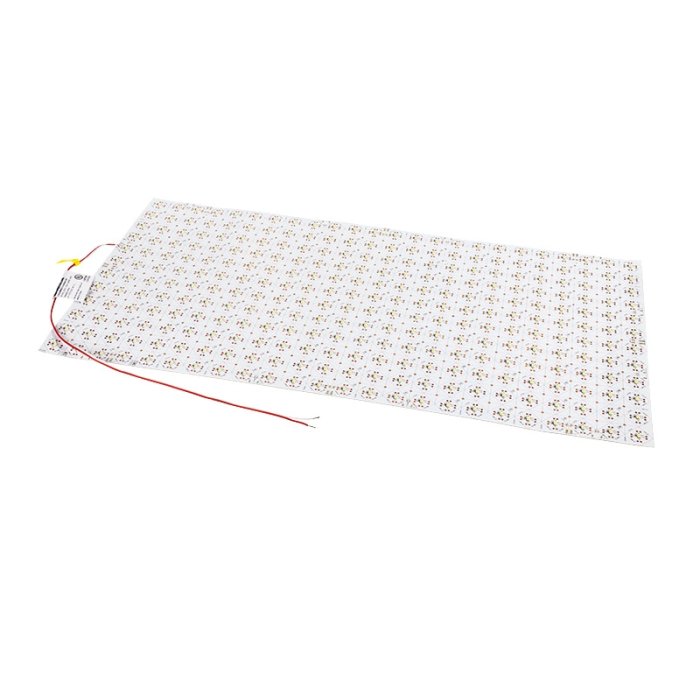

24V LED Light Sheet - 24" x 12" - White - IP20 - 2700K / 3000K / 3500K / 4000K / 5000K / 6500K
Part Number:
LLS-AxK80-C1A-30A02-24V
Manufacturer Part Number:
$149.99
ea.
Was
In Stock
Similar Products Available Today
Features
- Bendable & cuttable sheet of LEDs customizes to complex shapes
- 3M™ adhesive backing
- 1-inch LED segments distribute smooth lighting
- 24 VDC
- UL Listed
Ask About This Product
Get instant AI-powered answers
Try asking:
Total Price:
Loading...
Most Popular Compatible Products
Overview
Trim the LED light sheet to fit unique shapes or wrap corners. This flexible sheet contains 24 columns x 12 rows that can be segmented in any shape by cutting along the horizontal, vertical, or diagonal lines. The 1-inch segments ensure even light distribution, ideal for signs or backlighting. Apply this dimmable sheet by peeling off the 3M™ adhesive backing or fastening it with screws at the indicated spots.
Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.
Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.
Product Details:
- Segment size: 1 in. (25.4 mm) x 1 in. (25.4 mm)
- Max run with Class 2 wiring: 3 full sheets
- Enclosed fixture rated 30 mm
- IP20 rated for dry conditions
- PWM dimmable
- 24 VDC
- UL Listed
- 5-year warranty
Documents
LLS-AxK80-C1A-30A02-24V Specification Sheet Dimensional Drawings
Applications:
- Accent Lighting
- Backlighting
- Channel Letters
- Commercial Lighting
- Displays
- Light Boxes
- Offices
- Retail Shops
- Sign Lighting
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Specifications
| Ambient Operating Temperature | -20 to 60 °C (-4 to 140 °F) |
|---|---|
| Certifications/Compliance | CE, UL Listed |
| CRI | 80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
1.3 A |
| Dimensions | 24in x 12in |
| Dimmable | Yes |
| Dimmer Type | PWM |
| Efficacy | 102 lm/W |
| Enclosed Fixture Rated | Yes |
| Finish | White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
 |
IP20 |
|
LED Beam Angle
LED Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
120° |
| LED Chip Type | 2835 SMD |
| LEDs per Segment | 1 |
| LED Lifetime | 50000 Hours |
|
Max Run (Class 2)
Max Run (Class 2)
The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.   |
3 Sheets |
| Operating Voltage | 24 VDC |
| Product Dimensions | 24.0″ x 12.0″ x 0.08″ |
| Segment Size | 1 in. x 1 in. (25.4 mm x 25.4 mm) |
| Wattage | 30 Watts |
| Wire Length | 19 in. |
| Part NO |
Color Temperature
Color Temperature
 Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. |
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
LED Color |
|---|---|---|---|
| LLS-B-A27K80-C1A-30A02-24V | 2700K | Non-weatherproof, Suitable for Dry Locations | Warm 2700K |
| LLS-B-A30K80-C1A-30A02-24V | 3000K | Suitable for Dry Loactions, Non-weatherproof | Warm 3000K |
| LLS-B-A35K80-C1A-30A02-24V | 3500K | Non-weatherproof, Suitable for Dry Locations | Warm 3500K |
| LLS-B-A40K80-C1A-30A02-24V | 4000K | Non-weatherproof, Suitable for Dry Locations | Natural 4000K |
| LLS-B-A50K80-C1A-30A02-24V | 5000K | Non-weatherproof, Suitable for Dry Locations | Cool 5000K |
| LLS-B-A65K80-C1A-30A02-24V | 6500K | Non-weatherproof, Suitable for Dry Locations | Cool 6500K |
