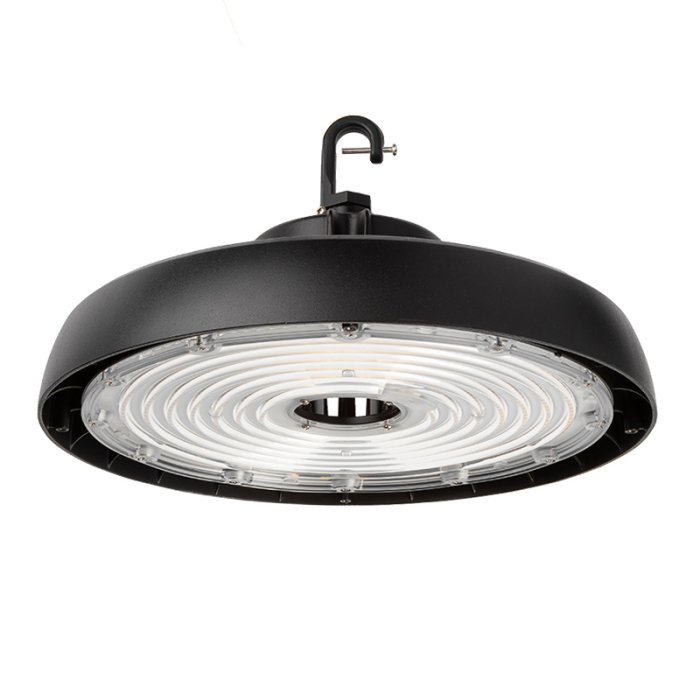

Name: 240W UFO LED High Bay - 33600 Lumens - 1000W MH Equivalent - 4000K/5000K
Brand: Super Bright LEDs
SKU: UHBD-S1-xK240-80H
Price: 159.99 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

Overview

Provide even illumination for tall ceiling applications with UHBD-S1 series UFO LED High Bay. An improved alternative to traditional metal halides, the design is more compact and efficient. Low profile aluminum housing has built-in heat sinks for passive cooling. Powder coated exterior and IP65 rating resists corrosion and moisture. Integrated LEDs deliver up to 140 lumens per watt, with a polycarbonate lens designed to reduce glare.

Product Details:

0-10V dimmable
100-277 VAC
Black powder coated aluminum housing
Polycarbonate lens reduces glare
80° beam angle
Safety cable provides additional mounting support
Mounting hook and 20” power wire (18 AWG) included
IP65 rated for wet conditions
5 year warranty
DLC 5.1 Premium, Certified by UL
50000 hour (L70) lifespan
Operational Temp: -40° -- 113°F (-40° -- 45°C)

This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.

This product has been certified by Underwriter Laboratories to their engineering and safety standards.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Warehouses
Workshops
Factories
Retail
Supermarkets
Gymnasiums

Specifications

Ambient Operating Temperature	-40~+45 °C (-40~+113 °F)
Beam Angle	80°
Brand	Super Bright LEDs
Certifications/Compliance Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here.	Certified by UL, DLC Premium
CRI	80+
Current Draw	866 mA @ 277 VAC, 2.0 A @ 120 VAC
Dimmable	Yes
Dimming Type TRIAC Dimming: Triode for alternating current (TRIAC) dimming is used to control high-voltage dimmable power supplies such as Magnitude Dimmable Power Supplies. These dimmable power supplies work by varying the power on the AC input side of the power supply by means of a TRIAC dimmer. This change in power on the AC input side will vary the voltage on the DC output side and control the intensity of the LEDs. TRIAC dimmers are common hardware store and household dimmers, which include brand names such as Lutron and Leviton. Pulse-Width Modulation Dimming: Pulse-width modulation (PWM) dimming can be used to control dimmable power supplies such as Mean Well HLG Series and Mean Well LPF Series. This type of dimming control adjusts the output current based on the duty cycle. As the duty cycle increases, current will increase and the LEDs will be brighter. Conversely, if the duty cycle decreases, the current will decrease and the LEDs will be dimmer. Pulse-width modulation for these drivers is based on a 10V signal level with a frequency between 100Hz~3KHz. The MCBRF-4A or MLD-5A are compatible for this application. Resistive Dimming: Resistive dimming can be used to control dimmable power supplies such as Mean Well HLG Series. The resistance can be fixed or variable. If a fixed level of dimming is required, a simple resistor is all that is needed to dim the LEDs to a particular level. If a varying dimmable level is desired, a potentiometer can serve this purpose. By changing the resistance value of the potentiometer, the output current of the power supply changes, and the LED intensity changes. Controlling a single power supply will require a 100K ohm potentiometer for 100% intensity (100K ohm) to approximately 10% intensity (10K ohm) based on where the wiper is positioned. 1-10V Dimming: 1-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-40~240 Series or 24V Mean Well HLG-40~240 Series. This type of dimming control is an older style for compatible dimmable power supplies and is being replaced with 0-10V dimmer control. 1-10V dimming control works by varying the voltage from 1-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 1-volt signal on the dimming wire allows 10% of the current to flow from the power supply, which generates approximately 10% of the maximum intensity for the LEDs. 0-10V Dimming: 0-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-600 Series or 24V Mean Well HLG-600 Series. This type of dimming control is the most popular and newest style for compatible dimmable power supplies. 0-10V dimming control works by varying the voltage from 0-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 0.6-volt signal on the dimming wires allows 6% of the current to flow from the power supply dimming the LEDs to approximately 6% of full intensity. 0-10V dimmers can be found here.	0-10V
Efficacy	140 lm/W
Environmental Rating	Suitable for Wet Locations, Waterproof
Equivalency	1000 Watt Metal-Halide
Finish	Black
Input Connection Type	Pigtail
IP Rating	IP65
Intensity	33600 Lumen
Microwave Motion Sensor	Optional
Operating Voltage	100-277 VAC
Power Consumption	240 Watts
Product Materials	Aluminum, Polycarbonate
Rated Life (L70)	50000 Hours
UL File Number	E366643
Warranty	5 Year

Print Specifications

Part NO	CCT Value CCT Value	LED Color	Power Factor	Wire Gauge
UHBD-S1-40K240-80H	4000K	Natural White	≥0.9	18 AWG
UHBD-S1-50K240-80H	5000K	Cool White
