Armacost Lighting Portico Single Outdoor Recessed LED Step / Deck Light - 12V - 3000K
Part Number:
222124
Manufacturer Part Number:
$14.99
ea.
Was
In Stock
Features
- Expansion light provides additional coverage for the Portico 10-piece deck/step light kit. (item #310124 - sold separately)
- Linkable design allows for easy expansion
- 120° beam angle for wide area coverage
- 0-100% dimmable for precise lighting control
- Maximum walk-over pressure of 220lbs
- Screw-closure plugs provide a reliable, watertight seal
Related Products
Overview

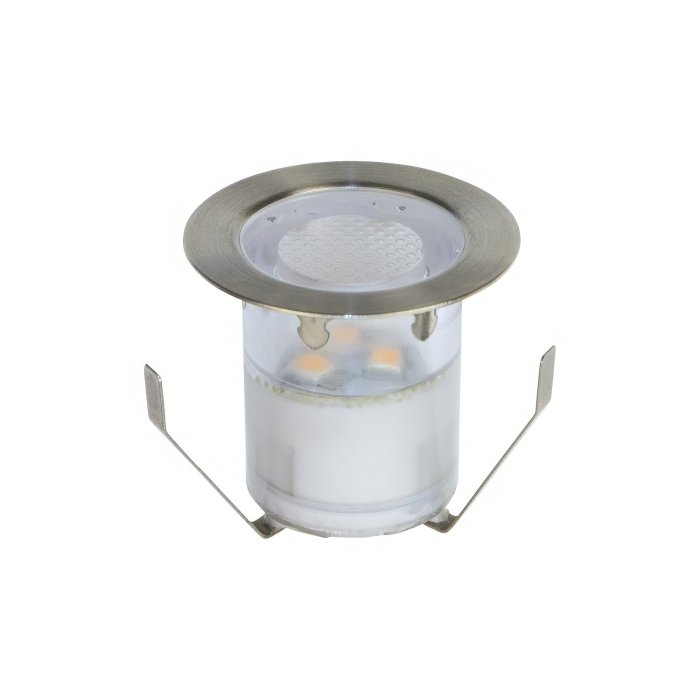

The Armacost Lighting Portico Outdoor Recessed LED Step/Deck Light is designed to expand your existing 10-piece Portico Outdoor Recessed Step/Deck Light Starter Kit up to 36 lights. The 1 3/16” diameter LED light comes with 20” cable leads with one male and one female connector on either side. All Portico LED components are IP67 rated for wet locations and feature screw closure plugs for secure, water-tight connections. To further enhance your setup, add RF remote and controller for 0-100% dimming control and 48" extension cables to expand your overall coverage. These recessed lights can be used to enhance outdoor spaces, including decks, boat docks, pathways, and steps.
Product Details:
- Polycarbonate housing with stainless steel trim
- IP67 waterproof rating
- 120° beam angle for wide area coverage
- Retention clip for easy mounting
- 12 VDC
Documents
Armacost Portico LED Lights User Manual Applications:
- Decks
- Docks
- Landscape Lighting
- Outdoor Stair Lighting
- Patios
- Retaining Walls
- Walkways
Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
Specifications
|
Beam Angle
Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
120° |
|---|---|
|
CCT
CCT
|
3000K |
| Certifications/Compliance | UL Listed |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
5 mA |
| Input Connection Type | 2-Pin |
| LED Color | Warm White |
| LED Lifetime | 50000 Hours |
| Mount Type | Recessed Mount |
| Operating Voltage | 12 VDC |
| Warranty | 3 Year |
| Wattage | 0.6 Watts |
| Wire Length | 20 in. |
